ARTESYN™
AVO200 Series
Active
200 W Eighth-Brick Isolated DC-DC Converters

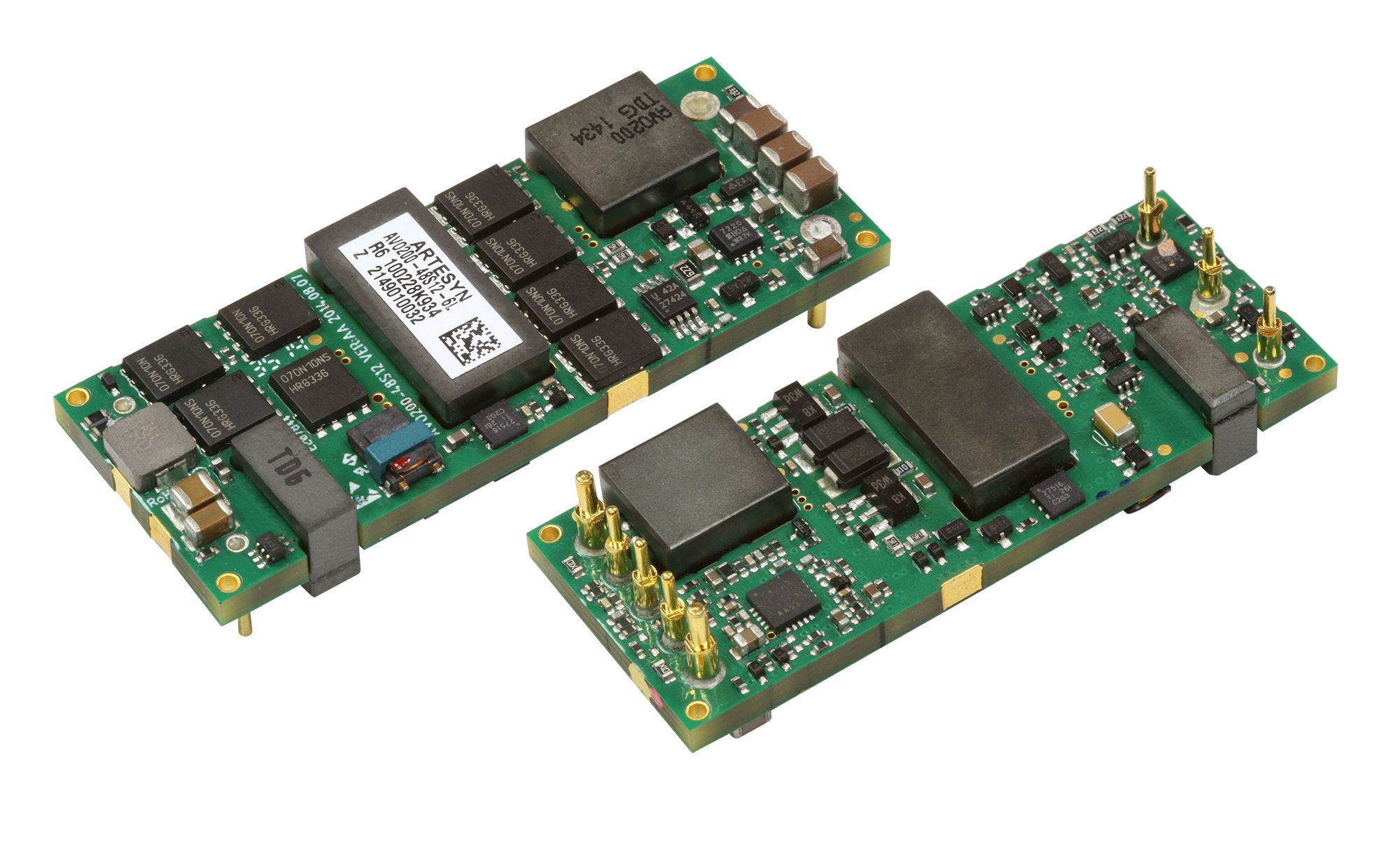

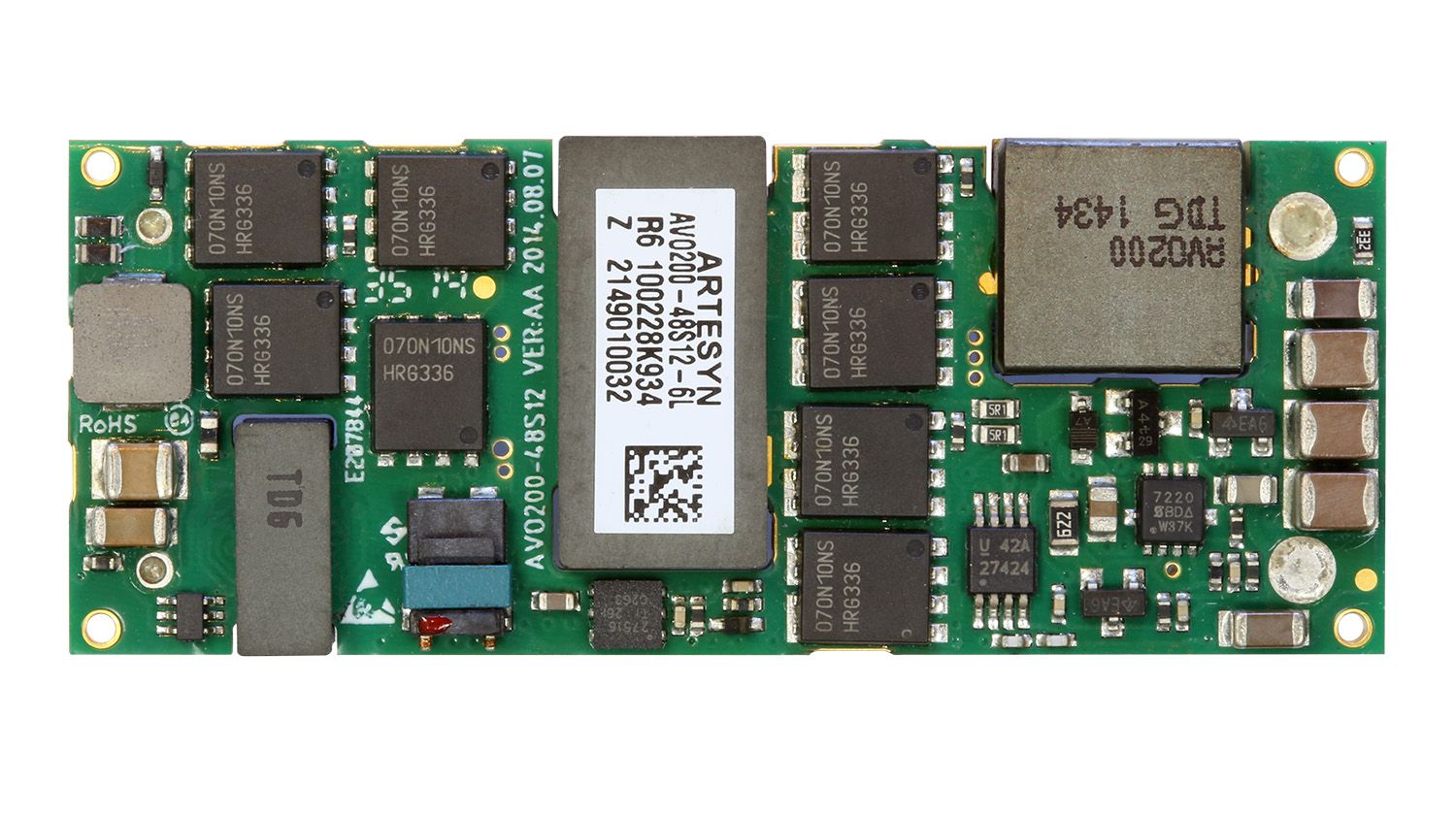

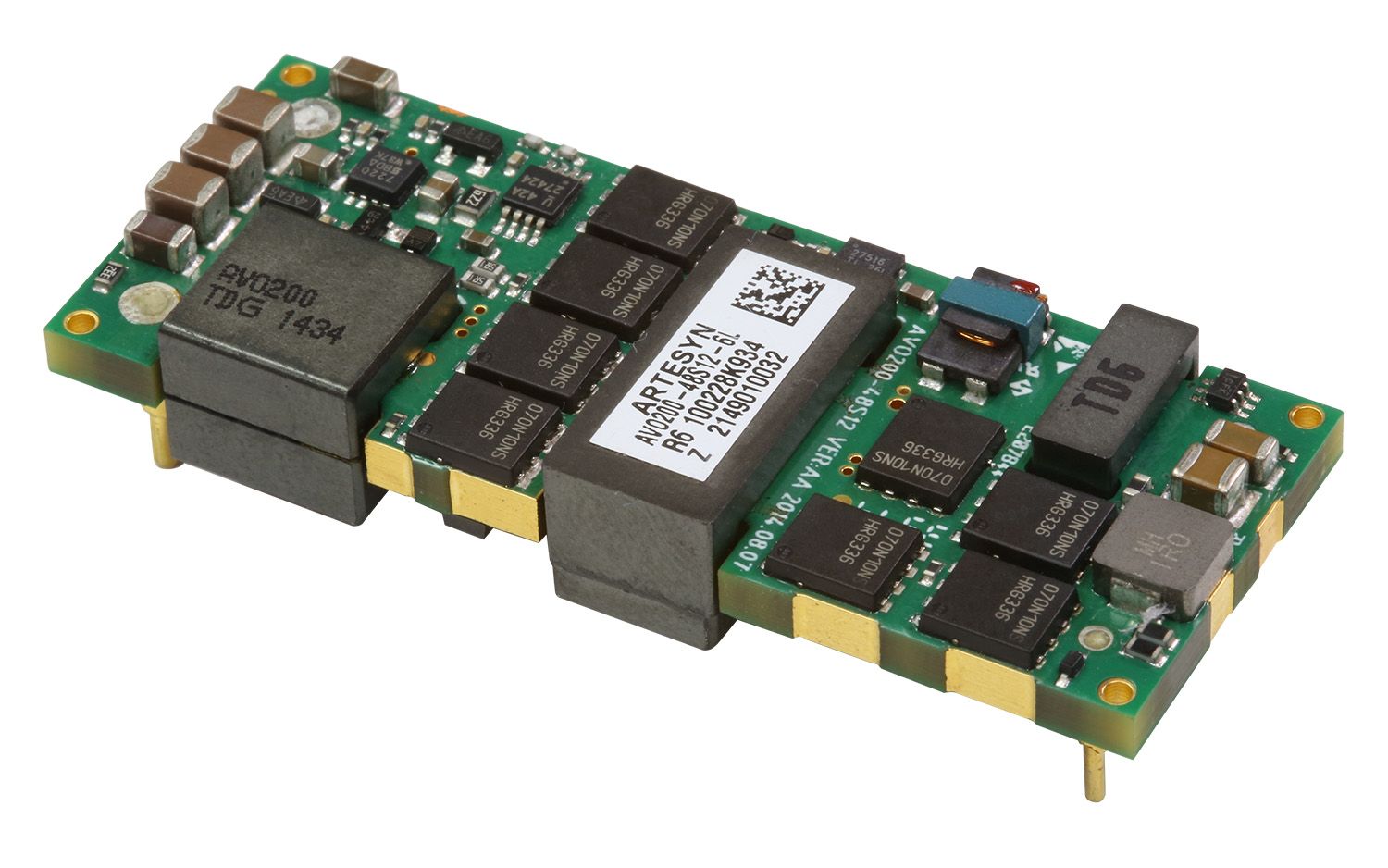

The AVO200 series of eighth-brick isolated DC-DC converters comprises two single output models offering fully regulated voltages of 5.0 V or 12 V. These converters are rated at 200 W continuous power; the 5.0 V model can deliver up to 40 A, while the 12 V model can deliver up to 16.7 A. They have a wide 2:1 input range of 36 to 75 VDC and are primarily designed for use with standard 48 V telecommunications equipment supplies. Typical applications include wireless, optical or access networks, as well as server and computing infrastructures.
특징
- 12V at up to 17A, 200W
- 5V at up to 40A, 200W
- 80% to 110% output voltage trim range
- 94.5% efficiency
- Basic insulation, 1500V isolation
- Input 36 - 75V
- Output 12V at 17A
- Output 5V at 40A
- Output 200W
- Isolation voltage 1500V
- Mechanical 1/8th brick footprint
혜택

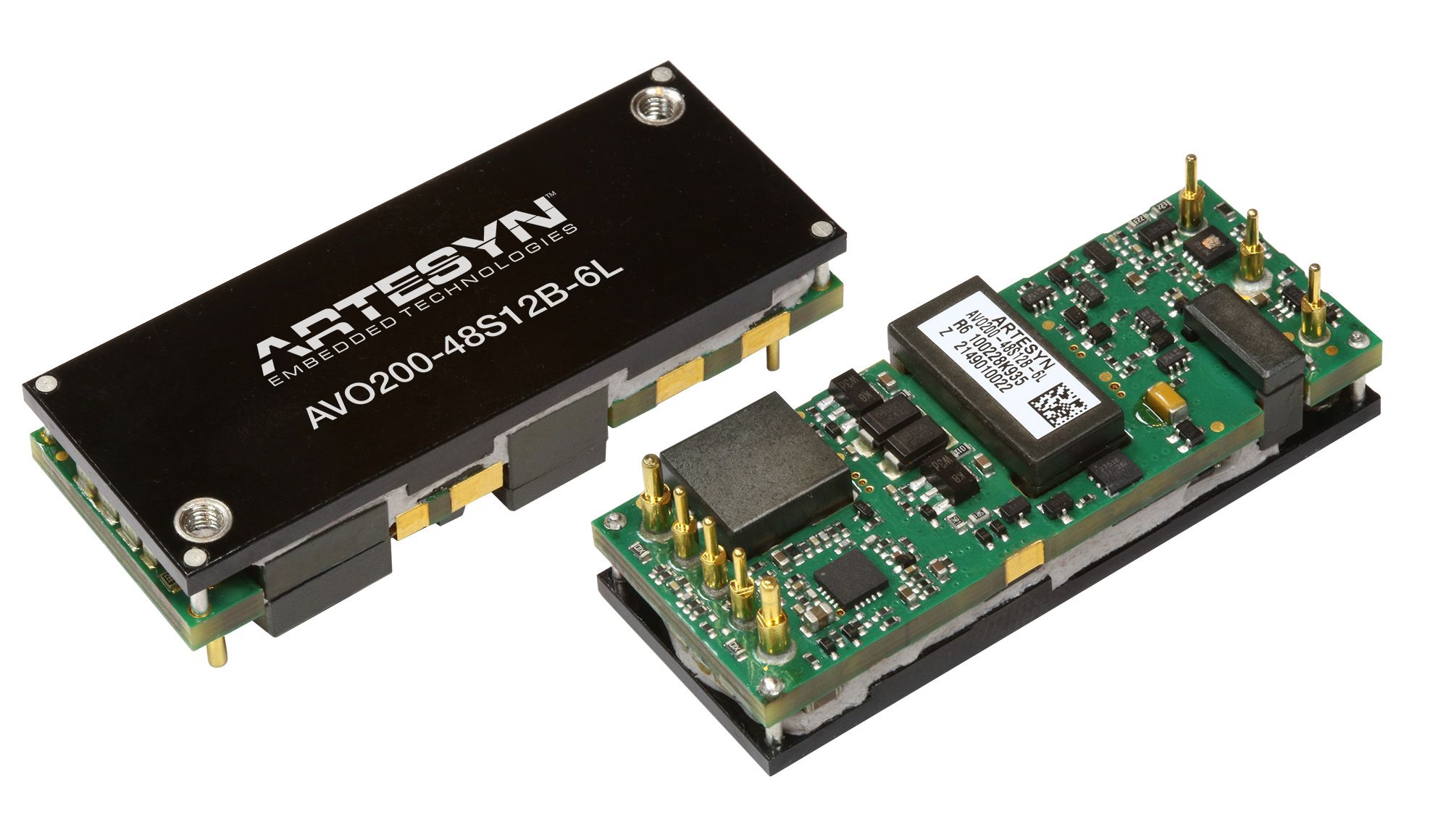

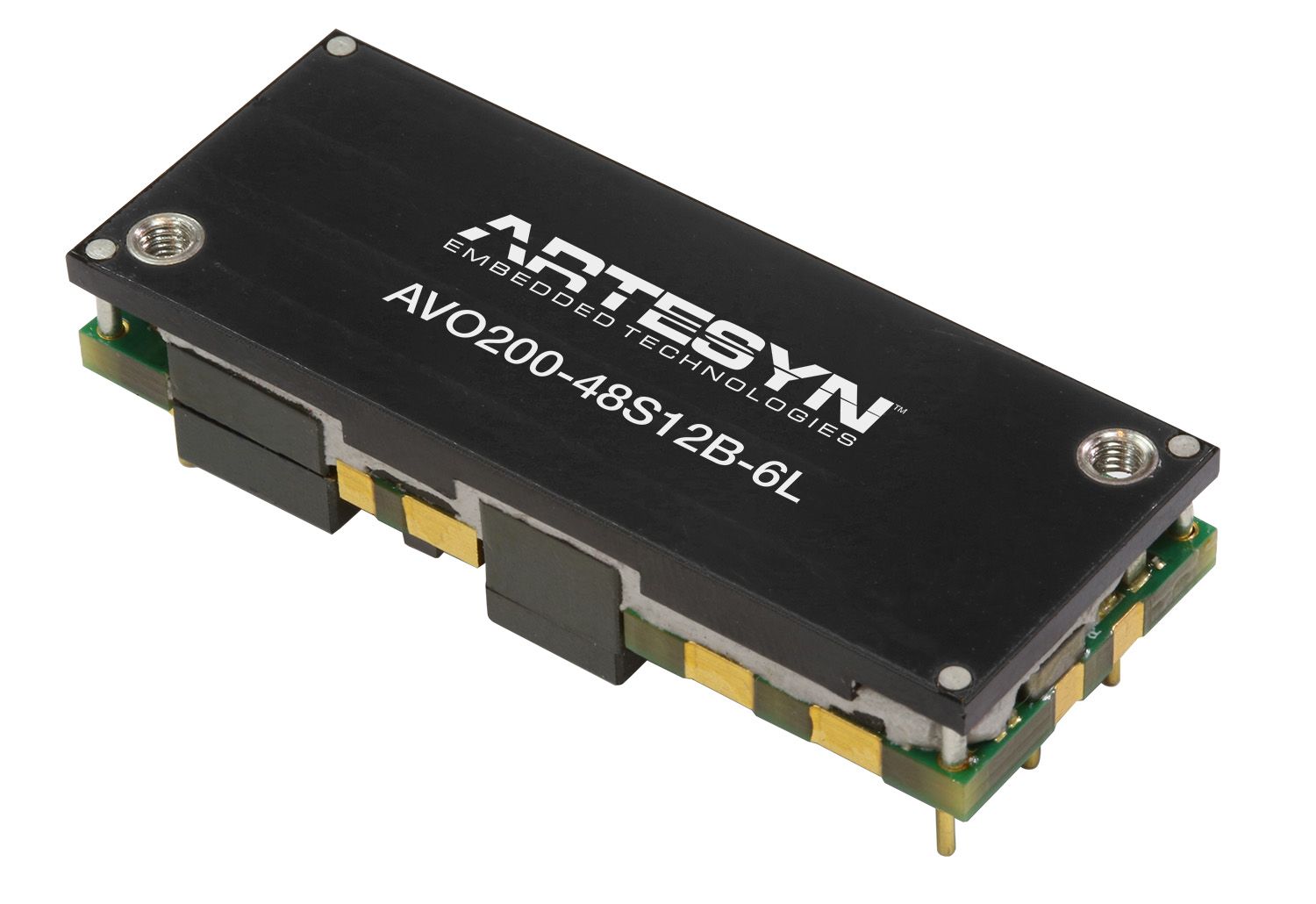

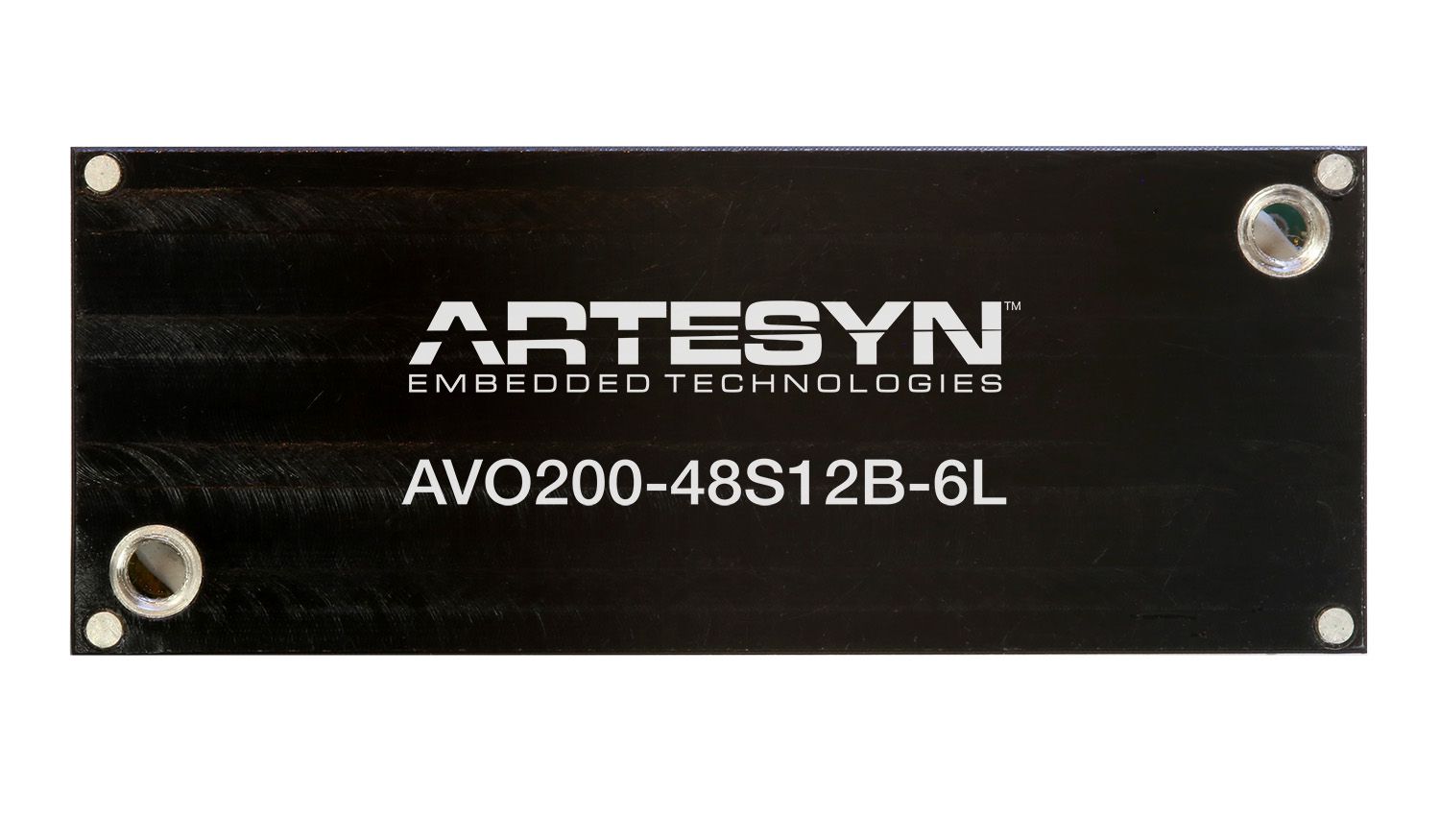

- baseplate or open fram construction
- remote sense and enable function
- SMT or PTH termination options available.
- Enable Logic Positive or Negative enable
- Insulation Basic insulation
- Mechanial Baseplate or open frame
사양
| 출력 전력(W): | 200 |
|---|---|
| 길이(인치): | 2.3 |
| 너비(인치): | 0.9 |
| 높이(인치): | 0.5 |
| 마운팅 유형: | BMP; Through Hole |
| 최소 출력 전류(A): | 0 |
| 최대 출력 전류(A): | 40 |
| 출력 전압 범위(V): | 4V to 13.2V |
