ARTESYN™

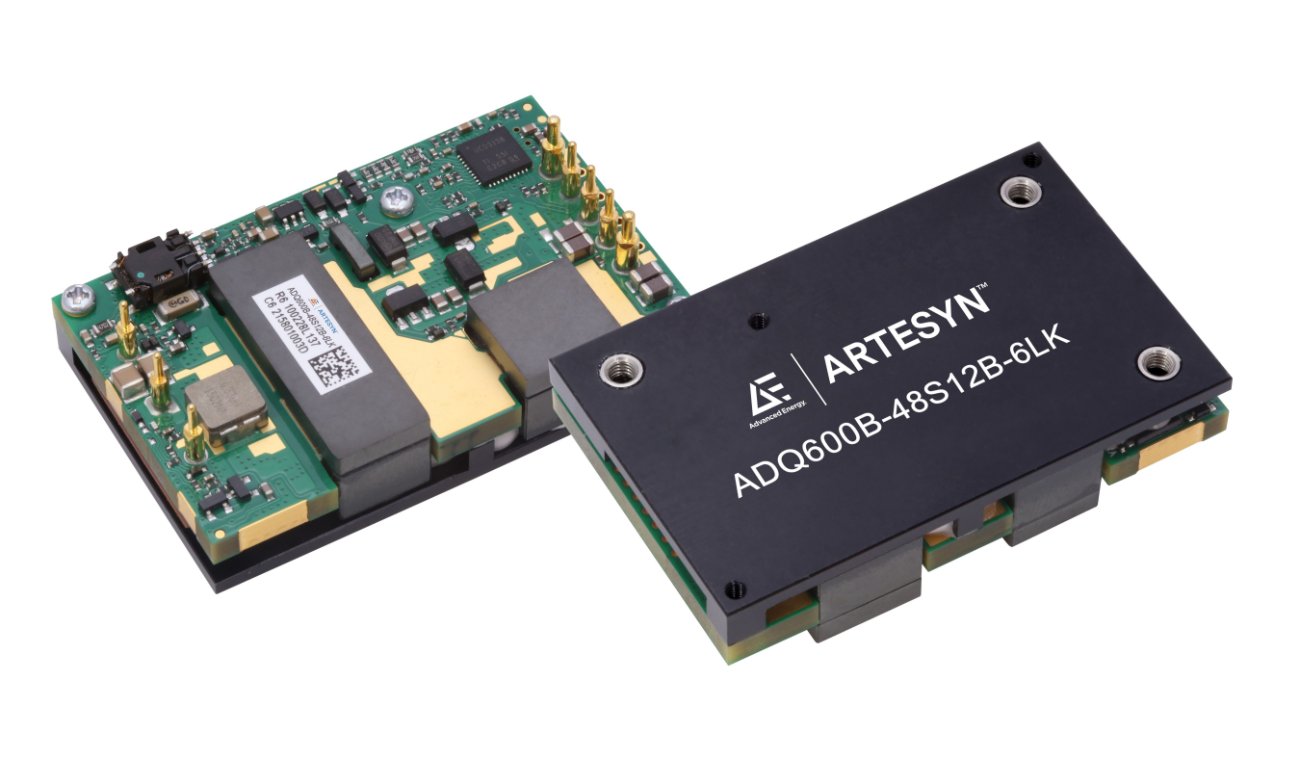

ADQ600B Series
Active
600 W Quarter-Brick Isolated DC-DC Converters
The ADQ600B series of 600 W quarter-brick isolated DC-DC converters produce a single fully regulated 12 V output and deliver up to 50 A output current–with no minimum load requirement–from an input range of 36 to 75 V. They are designed for use with 48 V supplies in computing and server applications as well as communications equipment. Offering an efficiency of typically 95.5% at full load, the converters operate at a temperature range of -40 to 85˚C, making them an ideal choice for a distributed power architecture supplying power to non-isolated converters. The series also offers both digital and analog interface monitoring and controlling features for voltage, current, and temperature settings.
특징
- Input voltage 36V - 75Vdc
- Output voltage 12 Volts
- Output current 50 Amps
- Isolation 1500Vdc
- Mechanical footprint - analogue standard 8-pin 1/4 brick DOSA compatible
혜택
- Basic insulation
- Mechanical footprint - digital PMBus interface DOSA compatible
- Mechanical baseplate construction
사양
| 출력 전력(W): | 600 |
|---|---|
| 길이(인치): | 2.3 |
| 너비(인치): | 1.45 |
| 높이(인치): | 0.5 |
| 마운팅 유형: | BMP; Through Hole |
| 최소 출력 전류(A): | 0 |
| 최대 출력 전류(A): | 50 |
| 출력 전압 범위(V): | 8V to 13.2V |
