ARTESYN™

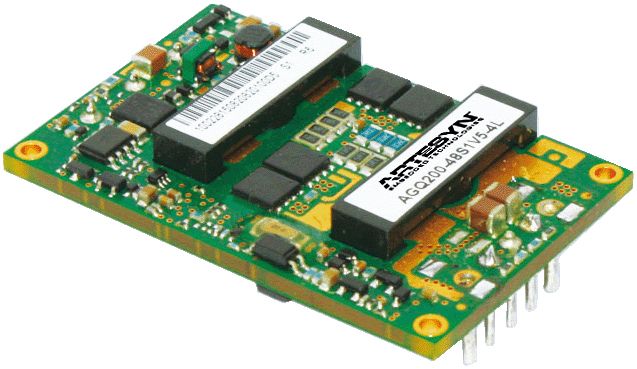

AGQ200 Series
Active
48 to 132 W Quarter-Brick Isolated DC-DC Converters
The AGQ200 series of quarter-brick isolated DC-DC converters consists of four single-output models, offering fully regulated voltages with a wide 2:1 input range. Enabling you to meet your requirements for standard 48 V telecommunications equipment supplies. These 48 to 132 W DC-DC converters provide an efficiency of 92%, and their open-frame design and aluminum base plate option allow forced air or conduction cooling and an enhanced thermal performance, respectively. The baseplate’s installed height of 0.5 inch makes the converters ideal for systems with demanding inter-boarding spacing requirements. Our converters use fixed-frequency switching to help minimize external EMI filtering requirements. Standard features include output trim, remote enable, and differential remote sense, with non-latching overvoltage and overtemperature protection.
특징
- Delivering up to 40A output current
- RoHS 6 compliant
- Ultrahigh efficiency 85% typ. at full load for 1.2V output
- Wide input range: 36V ~ 75V
- input voltage 36VDC to 75VDC
- output voltage 1.2VDC,1.5VDC,1.8VDC
- output current 40A
혜택
- Excellent thermal performance
- Fixed frequency operation
- No minimum load requirement
- isolation basic insulation
사양
| 출력 전력(W): | 132 |
|---|---|
| 길이(인치): | 2.28 |
| 너비(인치): | 1.449 |
| 높이(인치): | 0.5 |
| 마운팅 유형: | BMP; Through Hole |
| 최소 출력 전류(A): | 40 |
| 최대 출력 전류(A): | 40 |
| 출력 전압 범위(V): | 1.2V to 3.3V |
