NDQ900 Series
Active

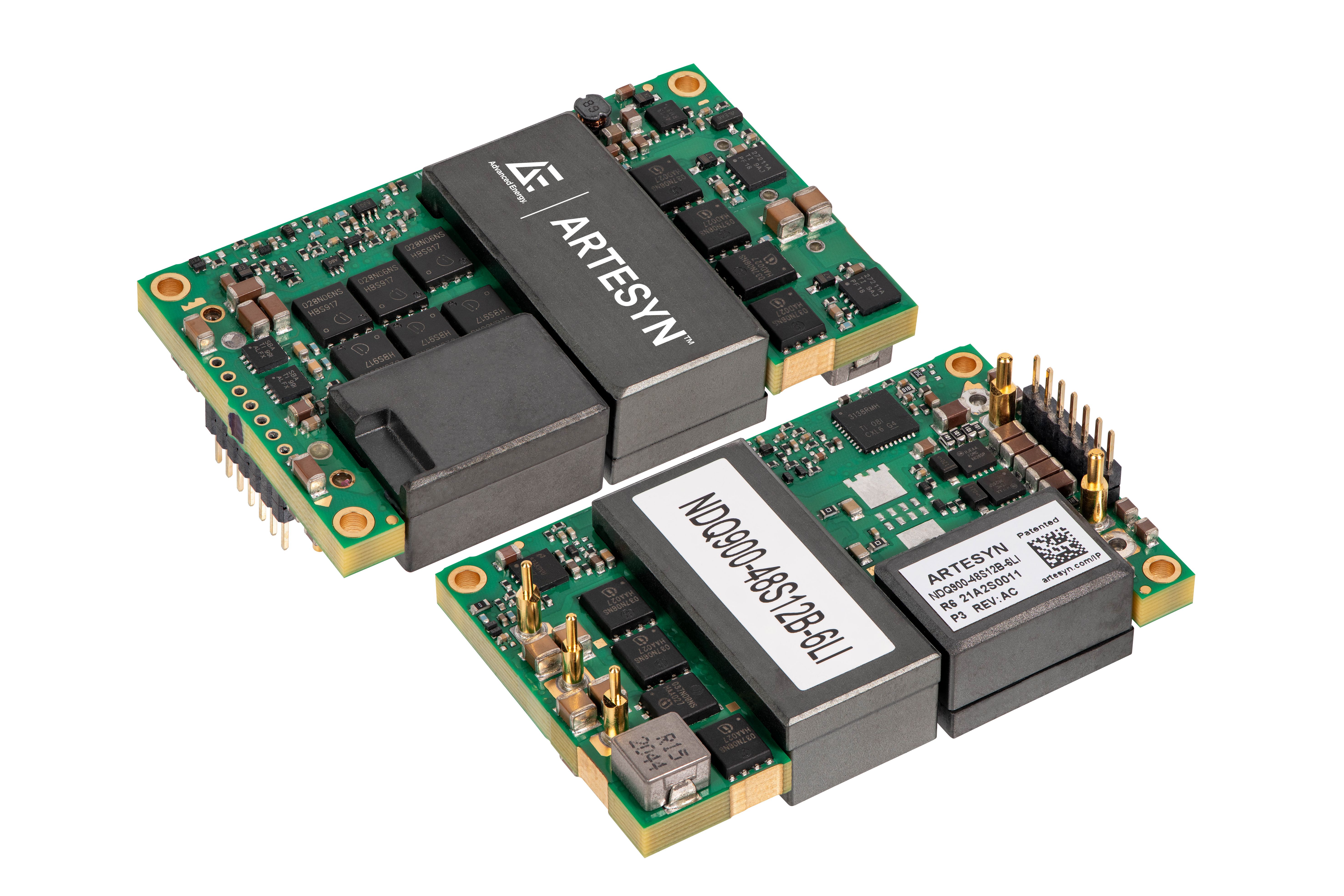

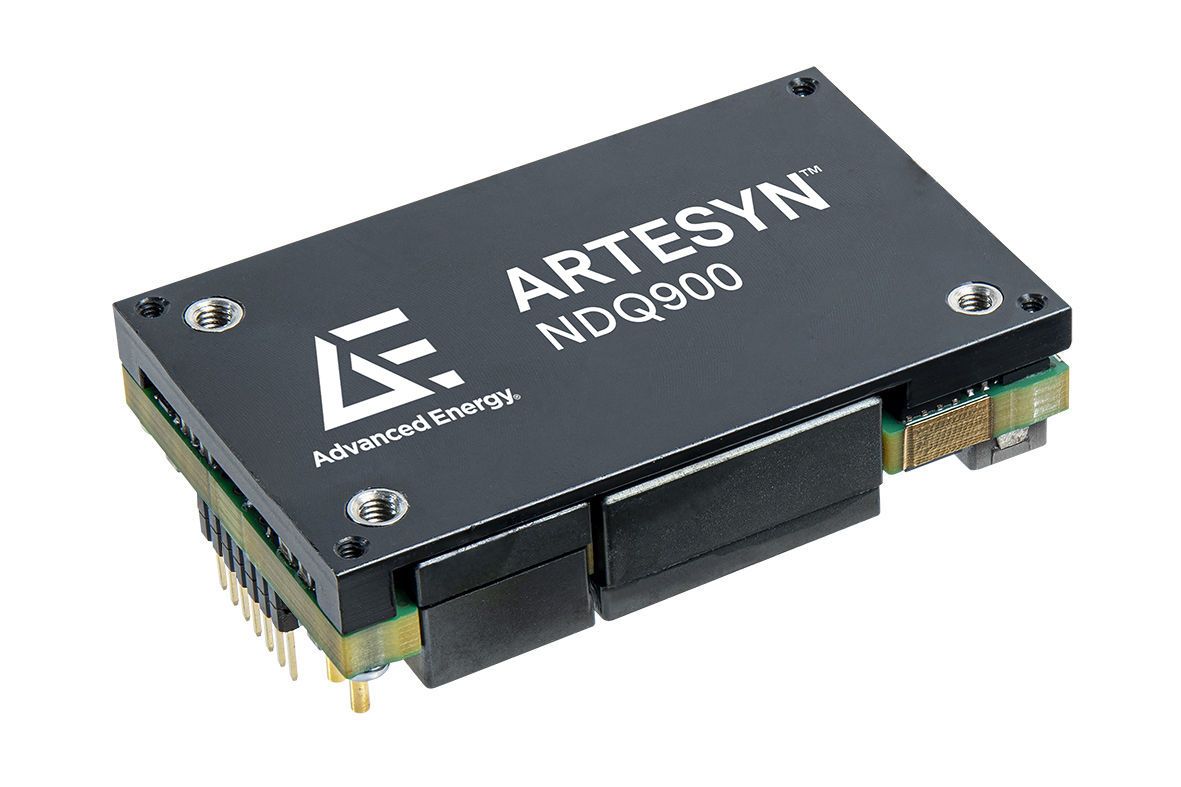

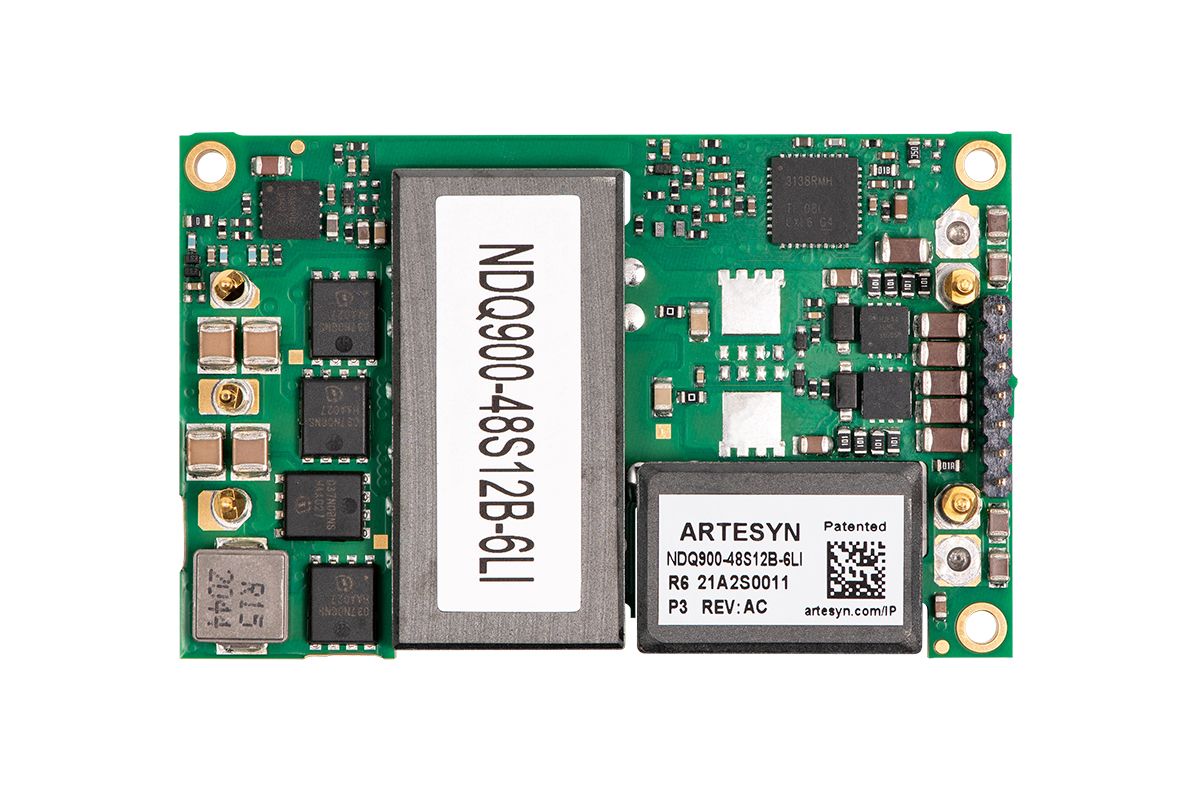

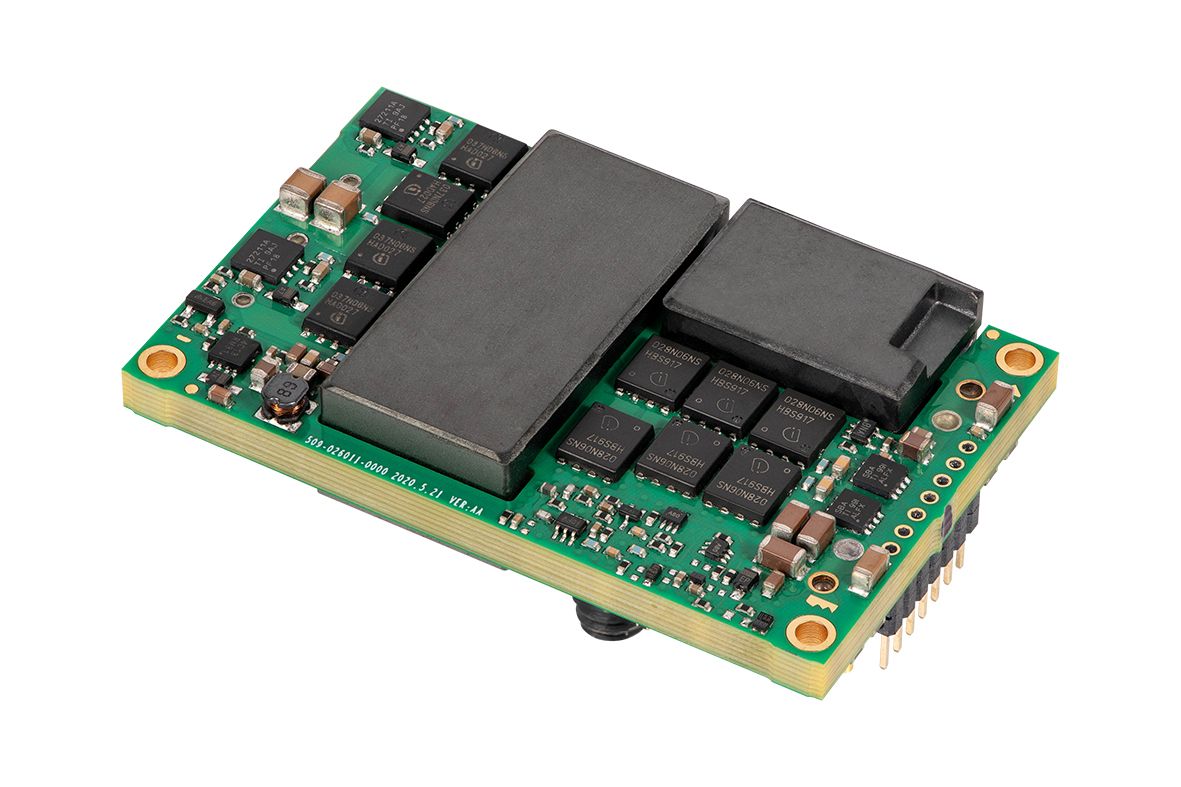

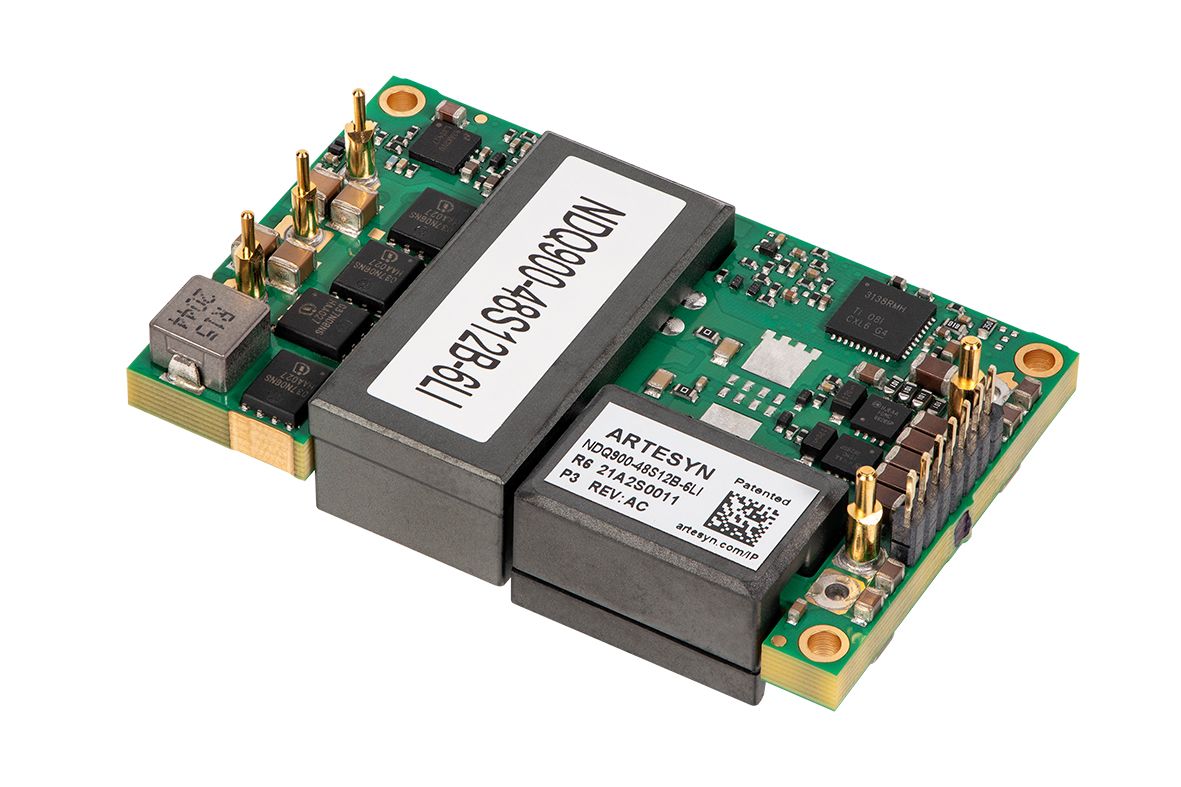

NDQ900 Series Quarter-Brick
The NDQ900 non-isolated single-output digitally controlled DC-DC converter has a standard quarter-brick outline and pin configuration. From an input voltage ranging over 40 to 60 VDC, the converter outputs up to 900 W at 12.25 VDC, reaching an ultra-high peak efficiency of 96.7%. Noise/ripple is 50 mV pk-pk typical with a 4 mF electrolytic capacitor. An ideal choice for 48 V to 12 V down conversion in high-power computing and storage applications, the NDQ900 outputs full power over an operating temperature range of -40 to +85°C with forced air cooling. An optional PMBus® interface makes for flexible digital control and monitoring.
특징
- Input range 40-60Vdc
- Input current 24.3Amps max
- Output power 900Watts
- Output voltage 12V nominal
- Output current 73.7Amps
- Safety IEC62368 compliant
- mechanical size Standard 1/4 brick
- Efficiency 96.7% peak
혜택
- Enable function Negative enable
- Control PMBus compatible
- Mechanical construction Single PCB with Baseplate
사양
| 출력 전력(W): | 900 |
|---|---|
| 길이(인치): | 2.3 |
| 너비(인치): | 1.45 |
| 높이(인치): | 0.5 |
| 마운팅 유형: | BMP; Through Hole |
| 최소 출력 전류(A): | 0 |
| 최대 출력 전류(A): | 73.7 |
| 출력 전압 범위(V): | 10.8V to 12V |
