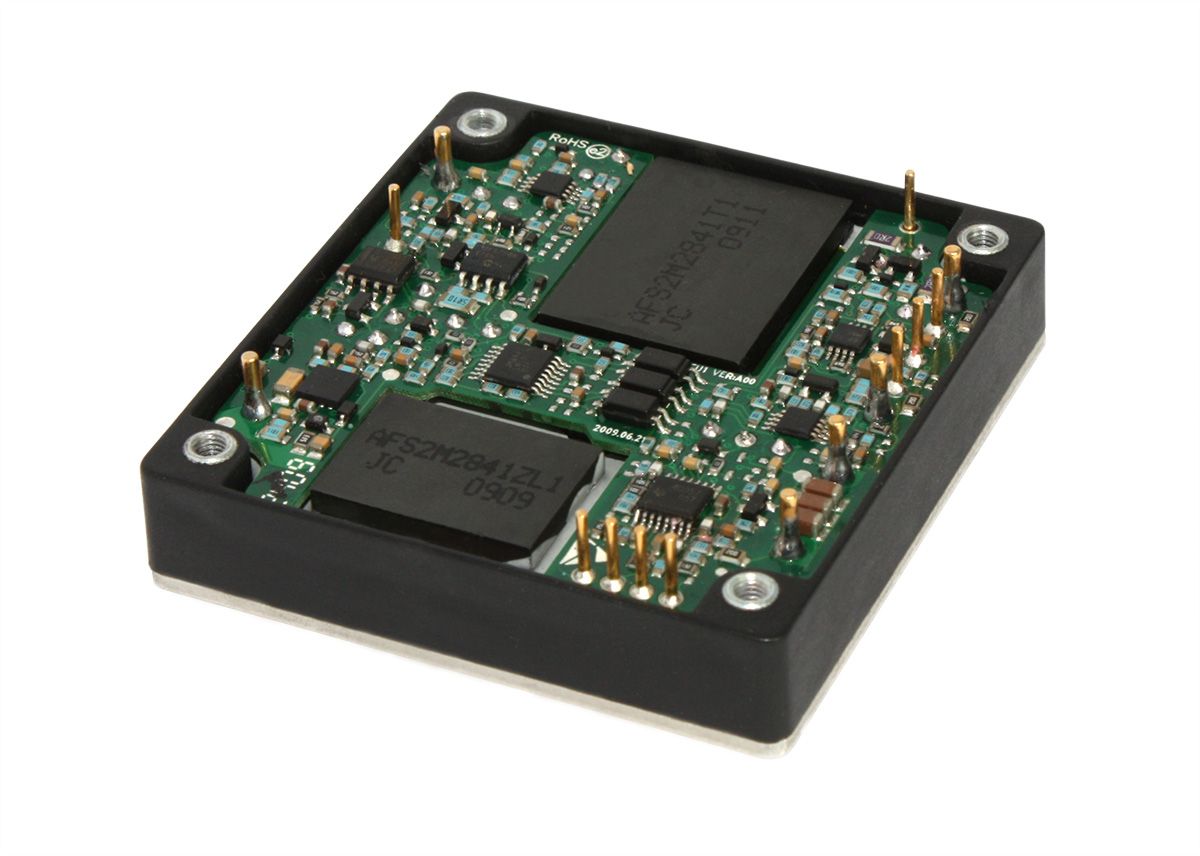

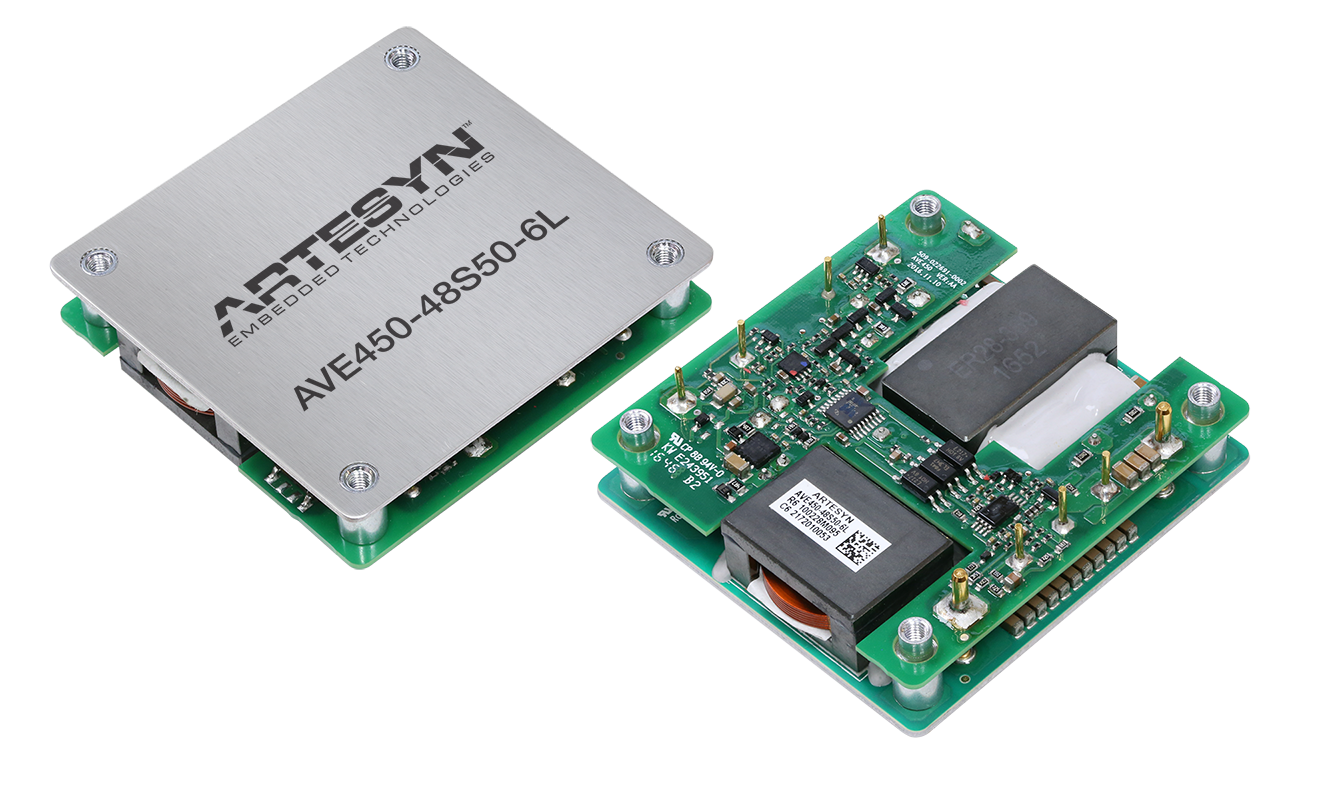

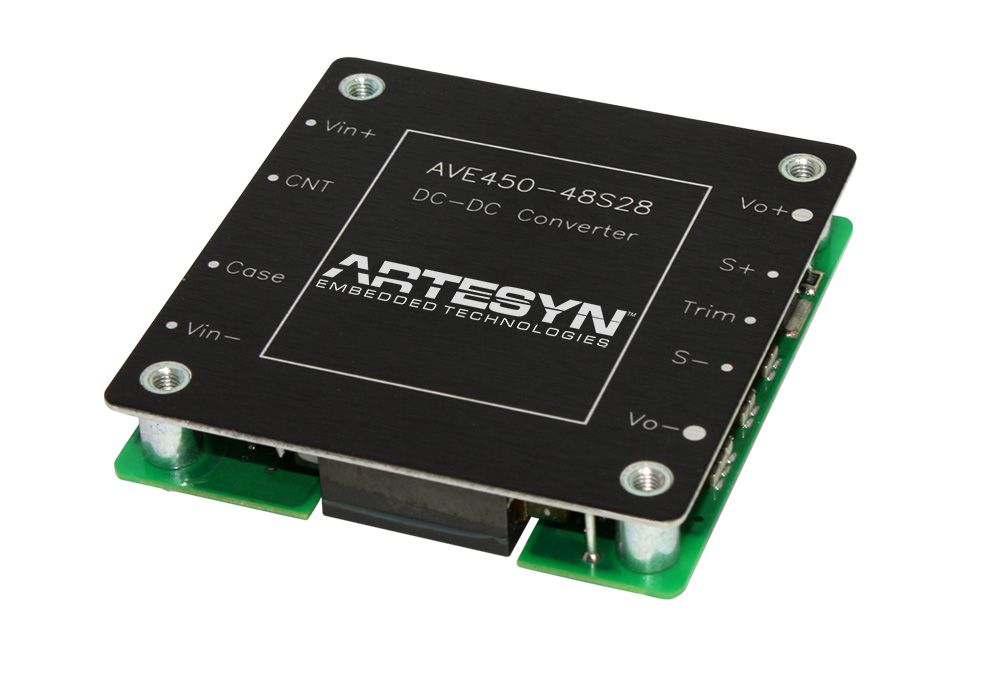

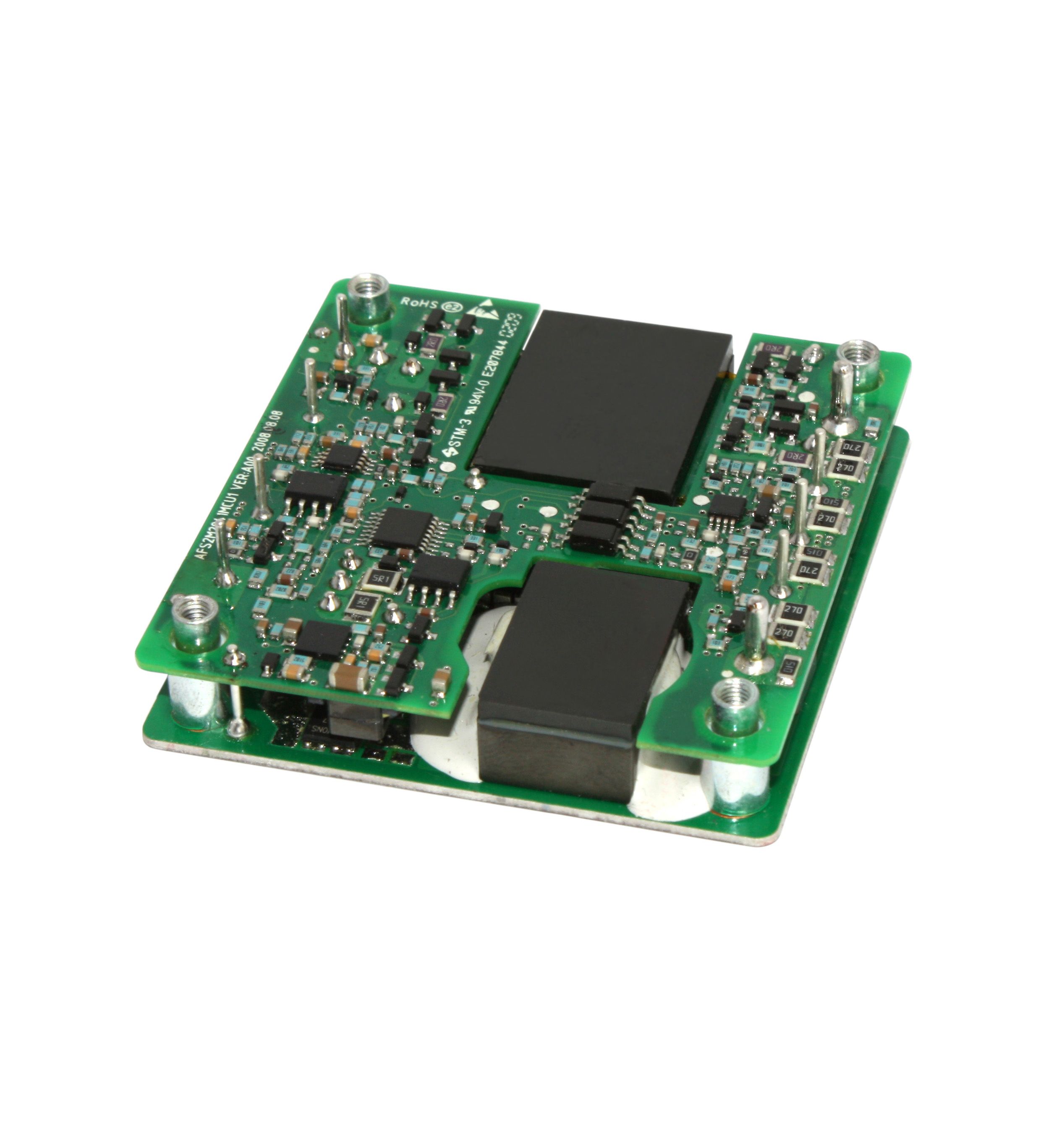

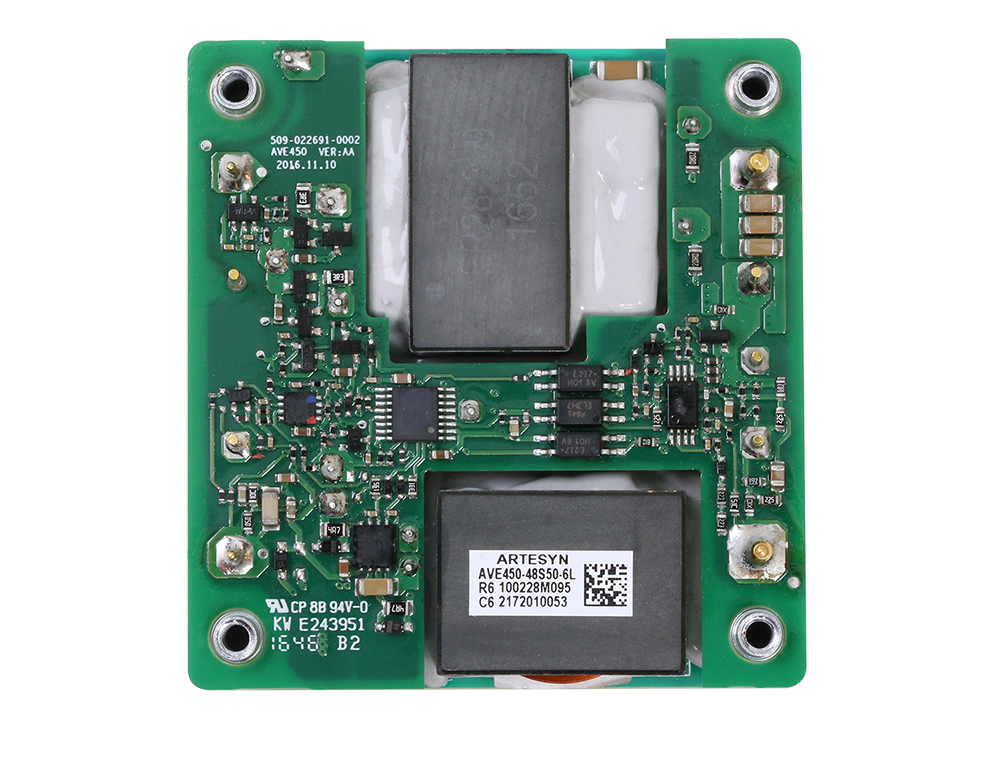

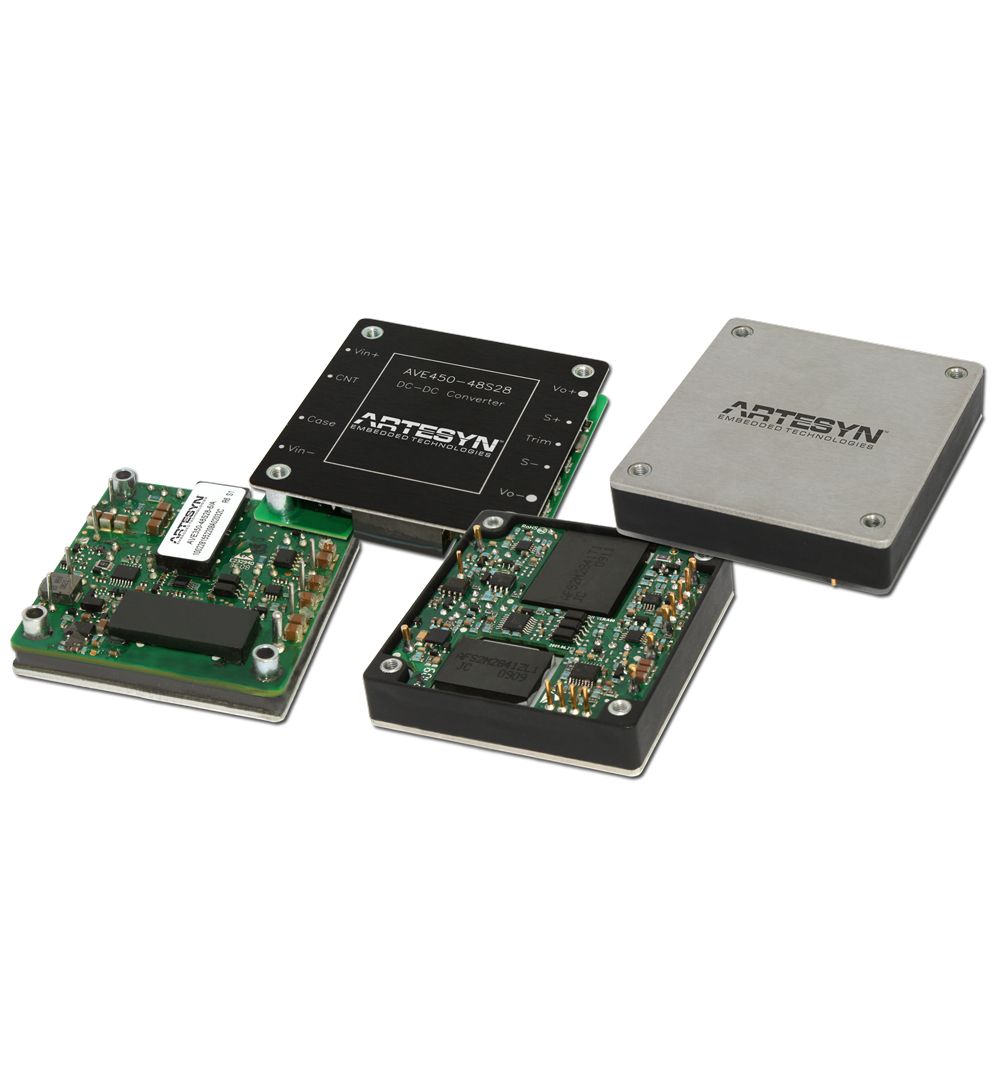

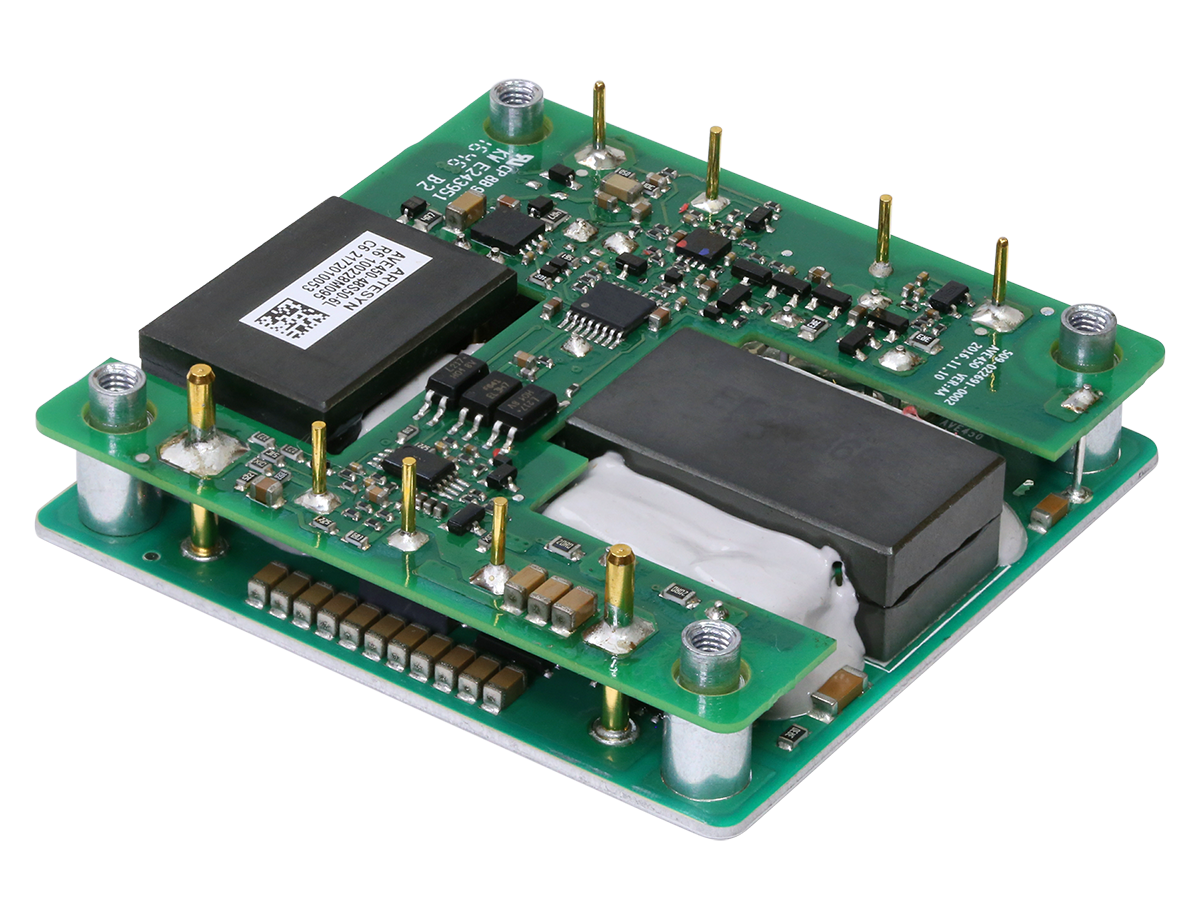

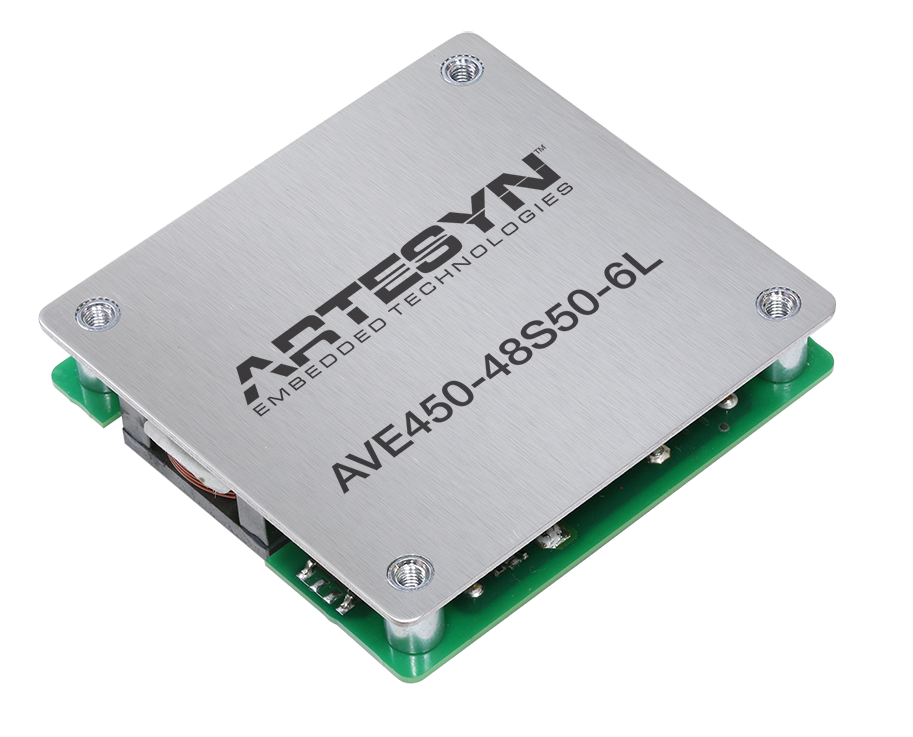

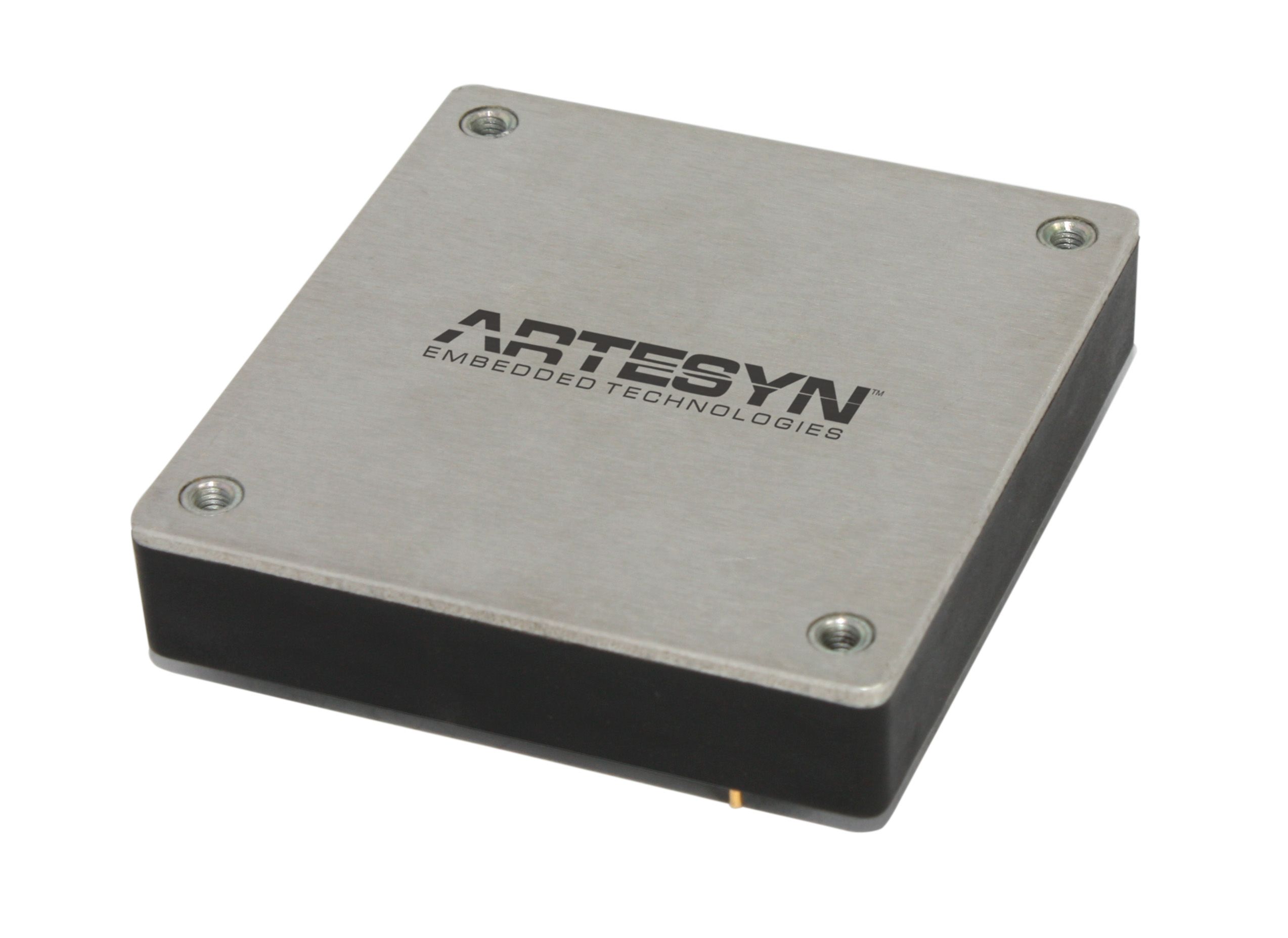

AVE450/500 Series

Active

450/500 W Half-Brick Isolated DC-DC Converters

Advanced Energy’s AVE450/500 series half-brick isolated DC-DC converter provides a single regulated low noise output, 28 VDC that can deliver up to 16 A (AVE450B-48S28) or 50 V that can deliver up to 10 A (AVE500-48S50). It has a wide 2:1 input range of 36 to 75 VDC and is designed primarily for use with standard 48 V telecommunications equipment supplies. Used in low power and remote radio head telecommunications applications, this converter operates at an ambient temperature range -40 to 85˚C and delivers full power up to a baseplate temperature of 100˚C. The AVE450/500 series half-brick isolated DC-DC converter is rated at 450/500 W and with an ultra high conversion efficiency of 94% at half load.

특징 사양 재고 확인 기술 문서 Videos Support

특징

Delivering up to 16A output current
RoHS 6, RoHS 5 compliant
Ultrahigh efficiency 94% typ. at full load
Wide input range: 36V 75V
input voltage 36V ~75V
output voltage 50V
output power 500W (AVE500-48S50)
output power 450W (AVE450-48S50)
output voltage 28V, 32V
output power 450W

혜택

Excellent thermal performance
Fixed frequency operation
No minimum load requirement
isolation basic insulation

사양

출력 전력(W):	500
길이(인치):	2.4
너비(인치):	2.28
높이(인치):	0.5
마운팅 유형:	BMP; Through Hole
최소 출력 전류(A):	16
최대 출력 전류(A):	16
출력 전압 범위(V):	14V to 57V
최소 출력 전력(W):	500
최대 출력 전력(W):	500
Minimum Input Voltage (V):	36
최대 입력 전압(V):	75
보증(년):	2

모든 사양 사양 축소

재고 확인

모델 번호 샘플 구매	최소. 전압(V)	최대. 전압(V)	전류(A)	공칭 전압(V)	출력 개수	샘플	구매
AVE450-48S50-6L 활성, 재고 있음 Request 구매	25	57	9	50	1	Request	구매
AVE450-48S50P-6L Active, 문의하기 Notify me when available 문의하기 구매	25	57	9	50	1	문의하기	구매
AVE450B-48S28-6L/M 활성, 재고 있음 Request 구매	14	33	16	28	1	Request	구매
AVE450B-48S28P-6L 활성, 재고 있음 450w 28v half brick Request 구매					0	Request	구매
AVE500-48S50-6L Active, 문의하기 Notify me when available 문의하기 구매	25	57	10	50	1	문의하기	구매
AVE500-48S50P-6L 활성, 재고 있음 Request 구매	25	57	10	50	1	Request	구매
