홈 Products Sense and Measurement AC Ratio Transformers AC Ratio Isolation Transformers ST-248A AC Ratio Transformer
Precision Fixed Ratio Voltage Transformer, 1:1 Ratio, Binding Post Termination, Electrostatic Shields
tegam ®

ST-248A AC Ratio Transformer

Active

AC Ratio Standard, 1:1 Ratio, Binding Post Termination, Electrostatic Shields (not CE certified)

Buy
Advanced Energy's TEGAM ST-248A transformers are designed to meet the requirements of a wide variety of bridge circuitry, isolation and calibration applications.  The ST-248A can be used to provide a balanced output from an unbalanced source.  These transformers may be combined with TEGAM ratio transformers in bridging circuits, to isolate the null indicator.  The ST-248A features very accurate 1:1 ratio for isolation or phase inverting applications.  These units are also used with TEGAM decade ratio transformers to provide 180 degree phase shift to the input or output of the instrument in certain bridge applications. The ST-248A also has electrostatic shields and a center tapped secondary.




특징

  • 1:1 Turns Ratio
  • Frequency Range 50-10,000 Hz
  • Insulation 500-V Test
  • Open Circuit Ratio Accuracy at 400 Hz .005%
  • Input Impedence (with secondary open circuit) at 400 Hz, Greater than 250,000 ohms
  • Binding Post Termination
  • Center-tapped Secondary
  • Electrostatic Shields
  • Assembled in USA

혜택

  • Excellent for isolation applications

사양

Basic Accuracy/Linearity: 0.005%
Frequency Range: 50 Hz to 10 kHz
Ratio Range: 1:1, 1:0.5
해상도(°C): N/A

재고 확인

모델 번호
 Basic Accuracy/Linearity Frequency Range Ratio Range Resolution 구매
ST-248A Active, 문의하기
AC Ratio Standard, 1:1 Ratio, Binding Post Termination, Electrostatic Shields (not CE certified)
0.005% 50 Hz to 10 kHz 1:1, 1:0.5 N/A 구매

관련 제품

Precision Fixed AC Ratio Standard, 1:1 Ratio, Binding Post Termination, Center-Tapped Secondary

추천

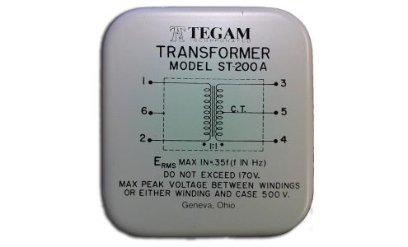

ST-200A AC Ratio Transformer
