Artesyn™

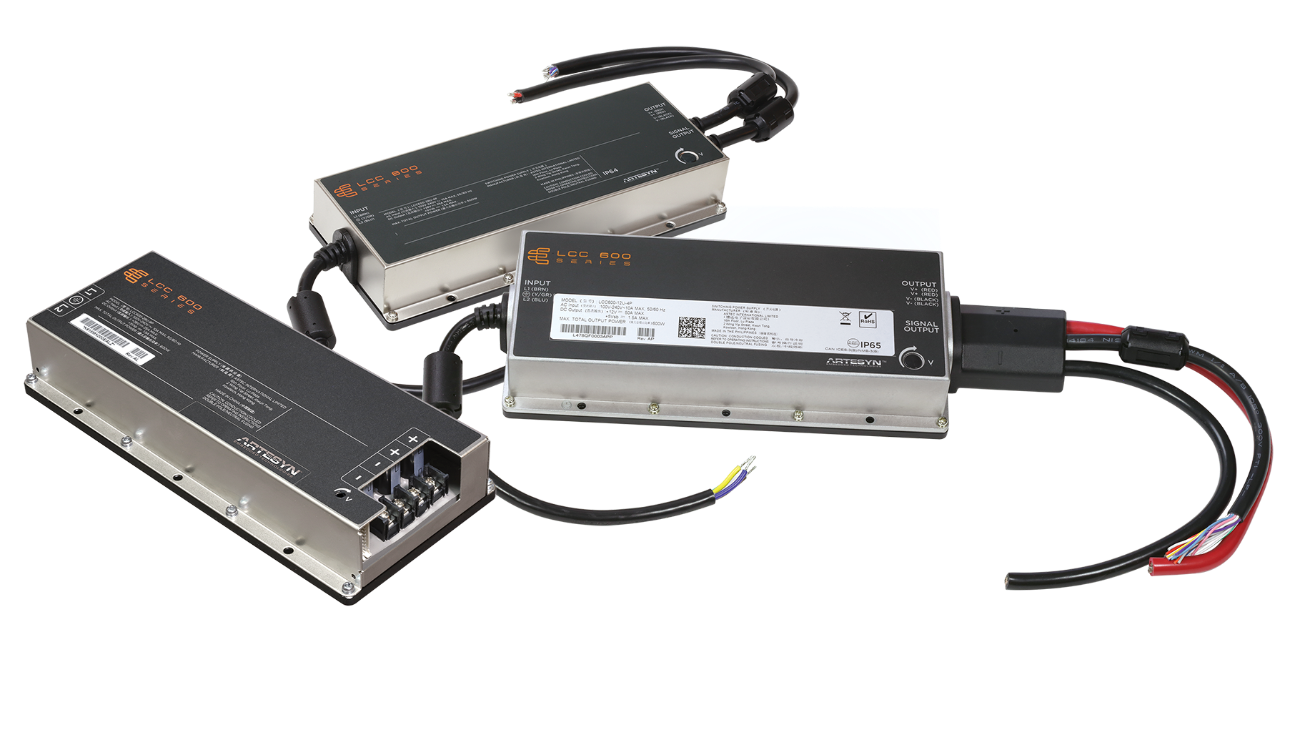

LCC600 Series
Active
600 W Conduction Cooled AC-DC Power Supplies
The fully enclosed conduction cooled 600 W LCC600 series of AC-DC power supplies offers main output voltages of 12, 28, 36, or 48 VDC and standby output of 5 VDC @1.5 A (maximum). The supplies feature a universal 90 to 264 VAC input with options for 180 to 305 VAC for three-phase mains input with a 277 VAC Line-to-Neutral configuration. Operating temperature range is -40 to 85℃ and the main output is adjustable with, for example, the 48 V model offering 44 to 54 VDC @12.5 A (maximum). Standard features include AC OK and DC OK signals, remote inhibit and differential remote sense, and protection against overtemperature, overcurrent, and overvoltage conditions. Versions with medical safety approvals are available.
特点
- 40 to 85 °C Baseplate Temp (No Derating)
- 600 W Single Output with 5 VDC Standby
- I2C / PMBus
- MILSTD461F EMI Compliance
- Optional 180305 VAC Input
- Optional IP65 Enclosure
- U Suffix 90-264 VAC
- H Suffix 180-305 VAC
- Frequency 47-63 Hz, 440 Hz
- Efficiency Up to 93.5% at Full Load
- Max Output Power 600 W max up to 85 °C baseplate
- 5V Standby 1.5 A max
- U Suffix: PRI-SEC 4,000 VAC (2X MOPP)
- U Suffix: PRI-EARTH 1,500 VAC (1X MOPP)
- U Suffix: SEC-EARTH 1,500 VAC (1X MOPP)
益处
- AC_OK; DC_OK Signals
- Active Current Share
- Active PFC
- Conduction Cooled / No Fan
- Industrial / Medical Safety Approvals
- Suited for BF Type medical applications
规格
| 输出功率（瓦）: | 600 |
|---|---|
| 长度（英寸）: | 9 |
| 宽度（英寸）: | 4 |
| 高度（英寸）: | 1.57 |
| 安装类型: | Embedded Conduction Cooled |
| 最小输出电流 (A): | 0 |
| 最大输出电流 (A): | 50 |
| 输出电压范围 (V): | 0V to 54V |
配件
Universal PMBus GUI Software Package
The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
