CINT3110 Series

Active

110 W Triple Output Industrial Grade

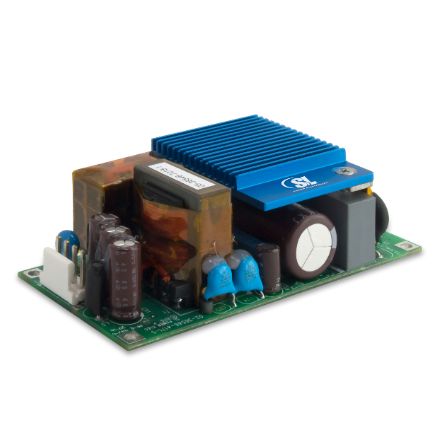

Advanced Energy’s SL Power CINT3110 family is the latest offering in high density triplle output open-frame AC/DC power supplies. Approved to EN/CSA/IEC/UL62368-1, the CINT3110 family is ideal for lighting, industrial printers, gaming equipment, and many other applications where power density and cost are critical. The CINT3110 operates at universal input rang of 90 to 264 VAC and wide temperature range -10ºC to +70ºC, devering full rated output power up to +50ºC. In addition, these models feature Power Fail and DC OK signals.

特点规格库存检查技术文档 Support

特点

2” x 4” x 1.3” Package
110 W w/air, 80 W convection cooled
Universal Input 90 to 264 VAC
Efficiency 87% typical

益处

Suitable for 1U Applications
Approved to EN/IEC/UL62368-1
Power Fail Signal
Remote Sense
3 Year Warranty
RoHS Compliant

规格

输出功率（瓦）:	110
长度（英寸）:	4
宽度（英寸）:	2
高度（英寸）:	1.3
安装类型:	Embedded PSU
最小输出电流 (A):	1
最大输出电流 (A):	10
输出电压范围 (V):	5V to 24V
最小输出功率（瓦）:	110
最大输出功率（瓦）:	110
Minimum Input Voltage (V):	90
最大输入电压 (V):	264
保修期（年）:	3

所有规格折叠规格

库存检查

型号样品购买	最小值电压 (V)	最大电压电压 (V)	电流 (A)	标称电压 (V)	输出数量	样品	购买
CINT3110A0508K01 活动，有库存 5V @ 14A, 12V @ 4.5A, -12V @ 1A, Class I 要求购买	5	12	14	5, 12, -12	3	要求	购买
CINT3110A1708K01 活动，有库存 5V @ 14A, 15V @ 3.5A, -15V @ 1A, Class I 要求购买	5	15	14	5, 15, -15	3	要求	购买
CINT3110A1908K01 活动，有库存 5V @ 12A, 24V @ 4A, -24V @ 1A, Class I 要求购买	5	24	12	5, 24, -24	3	要求	购买

技术文档

标题	类型
CINT-MINT3110 3D File (2 MB)	三维模型
CINT3110 Datasheet (4 MB)	数据表
CINT3110 MINT3110 HT Demko Certificate (365 KB)	Demko Certificate
CINT3110 Series Demko Certificate (376 KB)	Demko Certificate
CINT3110 RoHS Cert (131 KB)	RoHS 证书
CINT3110 RoHS Statement (131 KB)	RoHS 证书
CINT3110 HT UL Certificate of Compliance (284 KB)	安全证书
CINT3110 MINT3110 HT CB Certificate Class I (289 KB)	安全证书
CINT3110 MINT3110 HT CB Certificate Class II.pdf (290 KB)	安全证书
CINT3110 Series CB Certificate (168 KB)	安全证书
CINT3110 Series UL Certificate (79 KB)	安全证书
