SL Power™
MB60 Series
Active
60 W Single Output Medical Grade

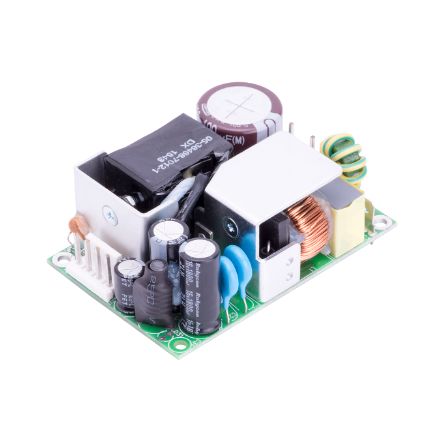

Advanced Energy’s SL Power MB60 medically-approved AC-DC power supplies are available with a nominal main output of 12 V, 15 V, 18V, 24 V, 36 V or 48 V. MB60 power supplies provide up to 60 W of output power with convection cooling. All models have output overvoltage, short circuit and overload protection and a 2 x 3 x 1.063 inch form factor.
特点
- Ultra Small size of 2” x 3” x 1”
- 60 W convection cooled
- Universal Input 90 to 264 VAC
- Less than 0.5 W no-load Power Consumption
益处
- For 1U Applications
- Approved to IEC60601-1, 3rd Edition with 2 MOPP
- Level V Efficiency Compliant Models
- 3 Year Warranty
- Optional LED indicator for power-on
- RoHS Compliant
规格
| 输出功率（瓦）: | 60 |
|---|---|
| 长度（英寸）: | 3 |
| 宽度（英寸）: | 2 |
| 高度（英寸）: | 1 |
| 安装类型: | Embedded PSU |
| 最小输出电流 (A): | 1.25 |
| 最大输出电流 (A): | 4.58 |
| 输出电压范围 (V): | 12V to 48V |
