Artesyn™

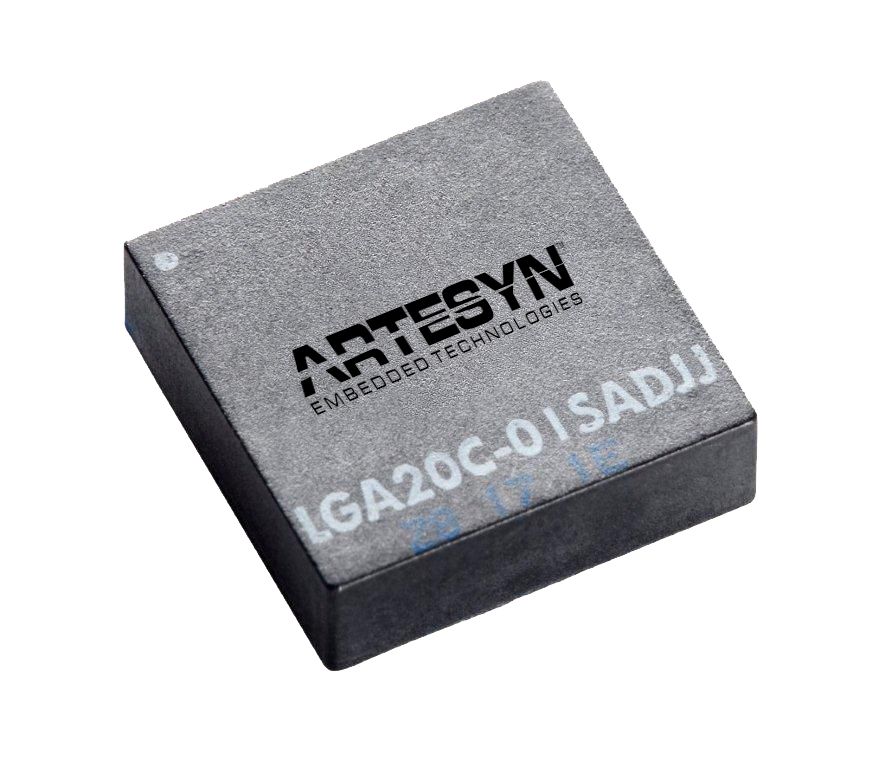

LGA20C Series
Active
100 W (20 A) Non-Isolated DC-DC Converters
The LGA20C series is a 20 A non-isolated DC-DC converter that provides a cost-effective high density power solution in a low profile, surface-mount land grid array package for space sensitive applications. The converter accepts a wide range 4.5 to 14 VDC input and has a 100 W power output rating. Its output voltage is adjustable from 0.59 to 5.1 VDC to accommodate a wide variety of silicon power needs. Standard features include remote sense, remote enable and voltage margin. LGA20C series converters offer resistor-programmable undervoltage lockout, as well as non-latching short-circuit and overvoltage protection.
特点
- RoHS 6 Compliant
- Input Voltage 4.5 - 14.0 VDC
- Efficiency 91% Typ (5 V @ 20 A, 12 Vin)
- Wide Output Adjust 0.59 - 5.1 VDC
- Output Margining ± 33% of Vo or 5.5 VDC max
益处
- Excellent Transient response
- High Efficiency
- Low Profile in a small compact LGA footprint
- Input UVLO
- Enable,
- Output Adjust
- Differential Remote Sense
- Output Margining
- Power Good Signal
- Short Circuit and Overcurrent Protection
- Wide Input Voltage Range
- Power Good Open Collector - Positive Logic
- Output Enable Positive Logic
规格
| 输出功率（瓦）: | 100 |
|---|---|
| 长度（英寸）: | 0.64 |
| 宽度（英寸）: | 0.64 |
| 高度（英寸）: | 0.21 |
| 安装类型: | BMP; SMT |
| 最小输出电流 (A): | 0 |
| 最大输出电流 (A): | 20 |
| 输出电压范围 (V): | 0.59V to 5.1V |
