Artesyn™

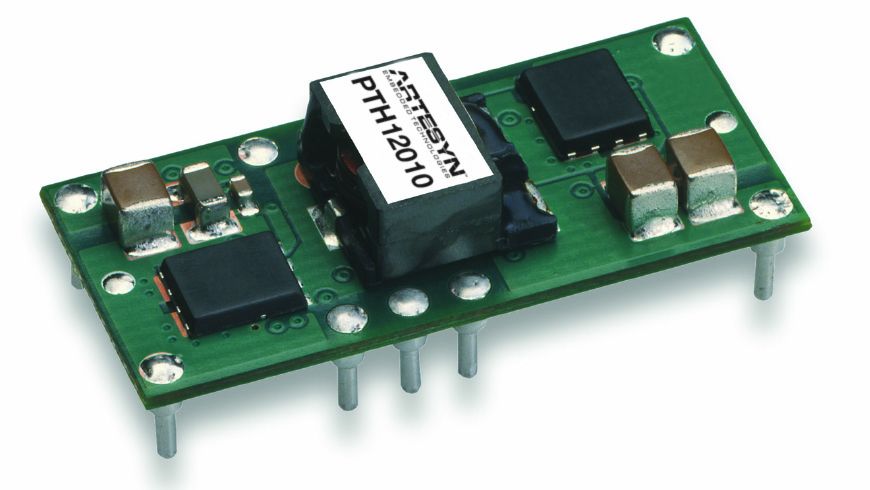

PTH12010 Series
Not for New Designs
66 W (12 A) Non-Isolated DC-DC Converters
The 66 W PTH12010 series non-isolated DC-DC converters comply with the Point-of-Load Alliance (POLA) standard, offering such advanced POL functions as Auto-Track™ (a Texas Instruments trademark) sequencing for controlled power-up/power-down of semiconductor devices like DSPs, FPGAs, and ASICs, as well as voltage margining. Standard features include pre-bias startup, input undervoltage lockout, remote sense, remote on/off, and auto-resetting short-circuit protection. The converters deliver up to 12 A and have an input voltage range of 10.8 to 13.2 VDC with options for trimmable output voltage ranges of 0.8 to 1.8 VDC and 1.2 to 5.5 VDC and maximum efficiencies of 89% and 94%, respectively. Through-hole horizontal mount and surface-mount options are available with a 0.62 x 1.37-inch (15.7 x 34.8 mm) footprint and 0.35-inch (9 mm) installed height.
特点
- 12 A output current
- 12 V input voltage
- Efficiencies up to 94%
- Wideoutput voltage adjust: 1.2 Vdc to 5.5 Vdc for suffix 'W' and 0.8 Vdc to 1.8 Vdc for suffix 'L'
益处
- Autotracksequencing*
- Available RoHS compliant
- Margin up/down controls
- Output ON/OFF inhibit
- Output voltage sense
- PointofLoadAlliance (POLA) compatible
规格
| 输出功率（瓦）: | 66 |
|---|---|
| 长度（英寸）: | 1.67 |
| 宽度（英寸）: | 0.62 |
| 高度（英寸）: | 0.35 |
| 安装类型: | BMP; SMT &Through Hole |
| 最小输出电流 (A): | 0 |
| 最大输出电流 (A): | 12 |
| 输出电压范围 (V): | 1.2V to 5.5V |
