Artesyn™
SIL15E Series
Not for New Designs
54.5 W (15 A) Non-Isolated DC-DC Converters
The SIL15E series of non-isolated DC-DC converters comprises four SIL15E_05V models and a single SIL15_12V model.
Three of the SIL15E_05V models offer fixed output voltages of 1.8 V, 2.5 V or 3.3 V, while the fourth is a wide output trim unit that can be adjusted over the range 0.8 to 3.63 VDC. The 3.3 V fixed output model accepts a 4.5 to 5.5 VDC input, while the other three models accept a 3 to 5.5 VDC input. All four models can deliver up to 15 A output current.
The SIL15E_12V converter accepts a 10 to 14 VDC input and provides an output that can be adjusted over the range 0.8 to 3.63 VDC. It can deliver up to 15 A output current.

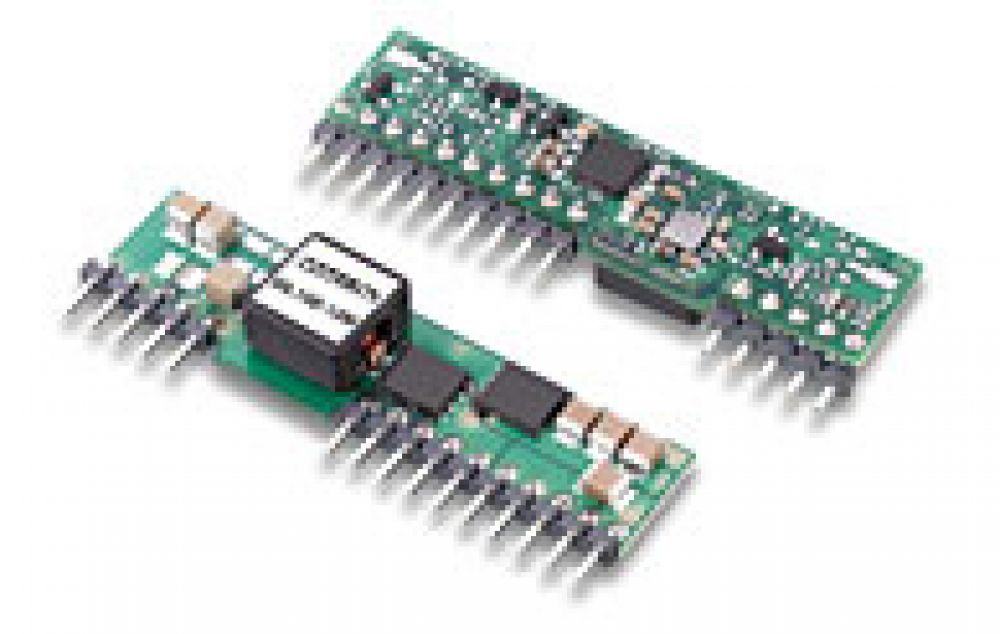

Depending on the particular model, SIL15E series converters offer output power ratings of up to 54.4 W and conversion efficiencies as high as 94%. Standard features include remote On/Off, remote sense and comprehensive protection against short-circuit and over temperature conditions. Packaged as through-hole vertical mount modules with a single-in-line footprint of just 0.3 x 2 inches (7.8 x 50.8 mm), SIL15E series converters have an installed height of 0.5 inch (12.7 mm).
Three of the SIL15E_05V models offer fixed output voltages of 1.8 V, 2.5 V or 3.3 V, while the fourth is a wide output trim unit that can be adjusted over the range 0.8 to 3.63 VDC. The 3.3 V fixed output model accepts a 4.5 to 5.5 VDC input, while the other three models accept a 3 to 5.5 VDC input. All four models can deliver up to 15 A output current.
The SIL15E_12V converter accepts a 10 to 14 VDC input and provides an output that can be adjusted over the range 0.8 to 3.63 VDC. It can deliver up to 15 A output current.
Depending on the particular model, SIL15E series converters offer output power ratings of up to 54.4 W and conversion efficiencies as high as 94%. Standard features include remote On/Off, remote sense and comprehensive protection against short-circuit and over temperature conditions. Packaged as through-hole vertical mount modules with a single-in-line footprint of just 0.3 x 2 inches (7.8 x 50.8 mm), SIL15E series converters have an installed height of 0.5 inch (12.7 mm).
特点
- 15 A current rating
- Input voltage range: 3.0 VDC to 12 VDC
- Output voltage range: 0.8 VDC to 3.63 VDC
- Ultra high efficiency: 95% @ 5 Vin and 3.3 Vout
- Designed in reliability: MTBF of >7 million hours per Telcordia SR-332
益处
- Extremely low internal power dissipation
- Minimal thermal design concerns
- Ideal solution where board space is at a premium or tighter card pitch is required
- Industry standard footprint and pin out
- Available RoHS compliant
规格
| 输出功率（瓦）: | 74 |
|---|---|
| 长度（英寸）: | 2 |
| 宽度（英寸）: | 0.31 |
| 高度（英寸）: | 0.5 |
| 安装类型: | BMP; Through Hole |
| 最小输出电流 (A): | 15 |
| 最大输出电流 (A): | 15 |
| 输出电压范围 (V): | 0.8V to 3.6V |
