Artesyn™

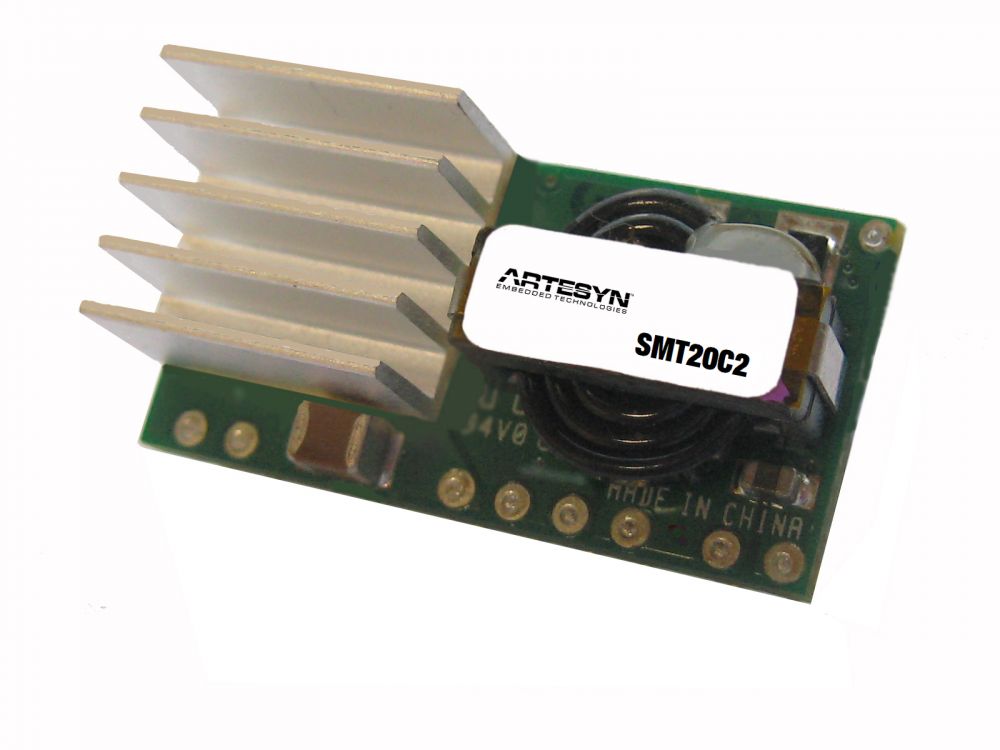

SMT20C2 Series
Active
100 W (20 A) Non-Isolated DC-DC Converters
The SMT20C2 series surface mount 20 A non-isolated DC-DC converter is designed for cost- and space-sensitive applications. It accepts a wide range 4.5 to 13.8 VDC input and provides an output that is adjustable from 0.59 to 5.1 VDC to accommodate a wide variety of silicon power needs. Rated at 100 W, the converter has a typical efficiency of 93%. Standard features include remote sense, remote On/Off and remote ‘power good’ indication.
特点
- Wide input voltage range: 4.5 to 13.8 VDC
- Wide output voltage trim / adjustability: 0.59 to 5.1 VDC
- High Efficiency up to 93%
益处
- Remote on/off
- Remote sense
- Excellent transient response
- Current sink capability for termination applications
- No added input or output capacitors needed for ripple capability or stability
规格
| 输出功率（瓦）: | 100 |
|---|---|
| 长度（英寸）: | 1.2 |
| 宽度（英寸）: | 0.482 |
| 高度（英寸）: | 0.61 |
| 安装类型: | BMP; SMT |
| 最小输出电流 (A): | 20 |
| 最大输出电流 (A): | 20 |
| 输出电压范围 (V): | 0.59V to 5.1V |
