Artesyn™
SMT30E Series
Active
99 W (30 A) Non-Isolated DC-DC Converters

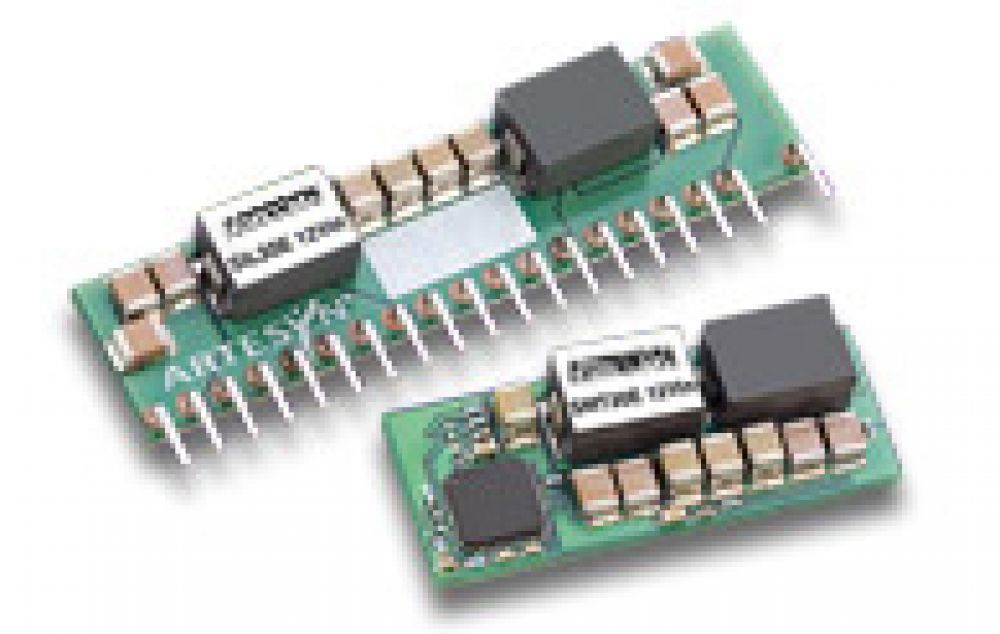

The SMT30E series non-isolated DC-DC converter accepts an 8 to 14 VDC input and produces an output that can be trimmed over a very wide 0.8 to 3.63 VDC range to satisfy a broad diversity of semiconductor power needs. Rated at 99 W, the converter has a typical efficiency of 91% and can deliver up to 30 A. Standard features include remote On/Off, remote sense and comprehensive protection against short-circuit and overtemperature conditions. Packaged as a low profile surface-mount module, it has a 0.53 x 1.3 inch (13.5 x 33 mm) footprint and an installed height of only 0.32 inch (8.2 mm).
特点
- 30A current rating
- Input voltage range: 8V to 14V
- Output voltage range: 0.8 to 3.63V
- Ultra high efficiency: 91% @ 12Vin and 3.3Vout
- Designed in reliability: MTBF of 4,435,000 hours per Telcordia SR-332
益处
- Extremely low internal power dissipation
- Minimal thermal design concerns
- Ideal solution where board space is at a premium or tighter card pitch is required
- Industry standard surface-mount footprint
规格
| 输出功率（瓦）: | 99 |
|---|---|
| 长度（英寸）: | 1.3 |
| 宽度（英寸）: | 0.53 |
| 高度（英寸）: | 0.309 |
| 安装类型: | BMP; SMT |
| 最小输出电流 (A): | 30 |
| 最大输出电流 (A): | 30 |
| 输出电压范围 (V): | 0.8V to 3.63V |
