Artesyn™

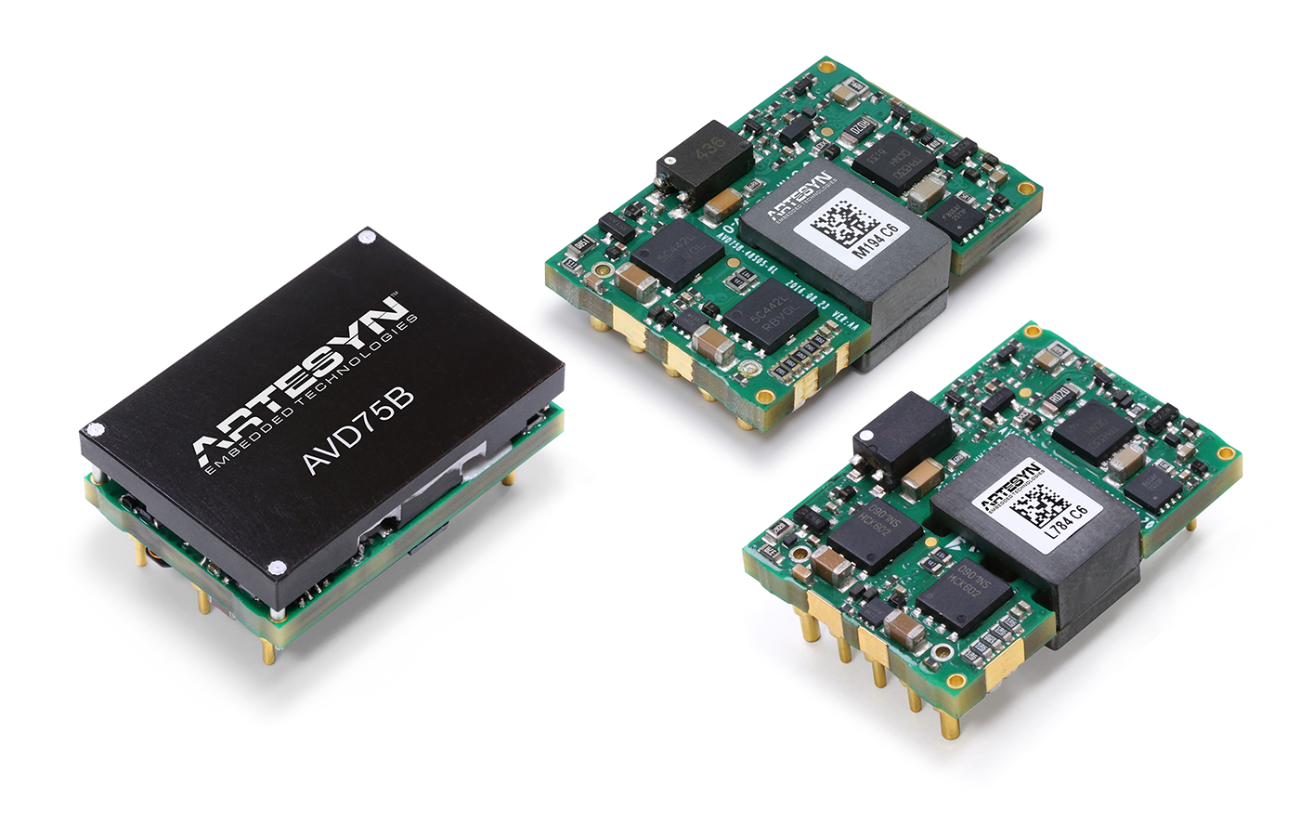

AVD75B Series
Active
75 W 1/16th Brick
The AVD75B series sixteenth-brick isolated DC-DC converter provides a fully regulated single output at 3.3 V, 5 V or 12 V that is capable of delivering up to 75 W. It has a wide 2:1 input range of 36 to 75 VDC and is designed primarily for use with standard 48 V telecommunications equipment supplies. Rated at 75 W, the converter employs an open-frame construction, offers up to 93% efficiency and accommodates an ambient operating temperature range of -40 to 85˚C. A baseplate option is available for enhanced thermal performance. SMT bullet pin with reel tape package is available for reflow processing . The converter uses fixed frequency switching to minimize the need for external EMI filtering.
特点
- Delivers up to 75w rated power
- RoHS 6 compliant
- Ultrahigh efficiency 92% typ. at full load
- Wide input range: 36V ~ 75V
- Input Range 36V-75VDC
- output voltage 3.3VDC-12VDC
- output power 75W
益处
- Basic isolation
- Excellent thermal performance
- High power density
- Low output noise
- No minimum load requirement
- Reflow soldering enabled
- isolation basic insulation
规格
| 输出功率（瓦）: | 75 |
|---|---|
| 长度（英寸）: | 1.3 |
| 宽度（英寸）: | 0.9 |
| 高度（英寸）: | 3.6 |
| 安装类型: | BMP; SMT &Through Hole |
| 最小输出电流 (A): | 6.25 |
| 最大输出电流 (A): | 23 |
| 输出电压范围 (V): | 2.64V to 13.2V |
