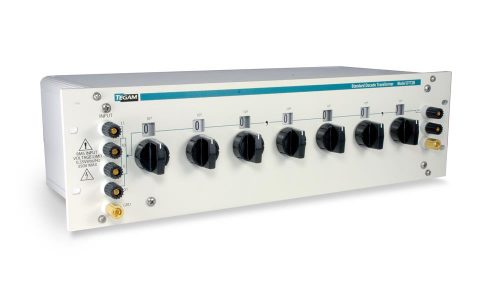

DT72B AC Ratio Transformer

Active

AC Ratio Standard, 7 Decades

库存检查 数据表
Model DT72B is an inductive voltage divider that meets or exceeds requirements for a calibration standard in precision measurement applications. It is easy to integrate into systems for calibration of voltage dividers, transformer standards, synchro/resolver standards, transformers, calibrators, ammeters, and voltmeters. It can also be used to make impedance or capacitance comparisons. The ratio accuracy is traceable to the National Institute of Standards and Technology.



特点

  • Resolution 0.1 ppm
  • Terminal linearity 0.9 ppm
  • Bandwidth 50 Hz to 20 kHz
  • Ratio range from -0.0111111 to +1.1111110
  • Parallel switches reduce contact resistance
  • Switch Resistors virtually eliminate switch transients
  • 1 Year warranty
  • Assembled in USA

益处

  • Excellent performance in applications requiring a precision AC ratio transformer
  • Accuracy enables use as a calibration standard to calibrate other AC ratio transformers

规格

Basic Accuracy/Linearity: 0.00009%
Frequency Range: 50 Hz to 20 kHz
Ratio Range:  -0.0111111 to +1.1111110
分辨率（°C）: 1 x 10⁻⁷

库存检查

型号
 Basic Accuracy/Linearity Frequency Range Ratio Range Resolution 购买
DT72B Active, 联系我们
AC Ratio Standard, 7 Decades
0.00009% 50 Hz to 20 kHz  -0.0111111 to +1.1111110 1 x 10⁻⁷ 购买

技术文档

标题 类型
AN104: TEGAM Ratio Transformer Helps Predict Earthquakes (213 KB) 应用说明
AN501: Testing Resolvers Using a Precision Ratio Transformer (299 KB) 应用说明
DT72B Datasheet (237 KB) 数据表
Ratio Transformer Selection Guide (131 KB) Guide
DT72B Manual-Rev B (4 MB) 手册
