R1L-BIR1 Portable Bond Meter
Active
Milli-Ohmmeter and Bond Meter, Portable 10 µΩ to 20 Ω, with 4-Wire Push-Pin & Alligator Clip Probes (not CE certified)

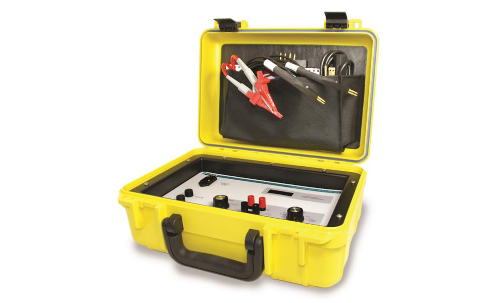

The TEGAM Model R1L-BIR1 milli-ohmmeter and bonding meter is a purpose-built, rechargeable, battery-powered portable instrument for ground bond measurements. The R1L-BIR1 comes with BCP-10 push-pin probes and KAK-04 Kelvin alligator clips, and is completely housed within a rugged case. It can accurately make measurements with a resolution of 1 µΩ. This milli-ohmmeter & bond meter kit has been selected and deployed in Afghanistan for use on the Kiowa Warrior Armed Reconnaissance Helicopter by the US Military.
The R1L-BIR1 can measure resistance in the presence of reactive loads up to 2 mH or 100 μF.
The R1L-BIR1 includes one pair pf BCP-10 Kelvin probes and one set of KAK-04 Kelvin alligator clips.
The R1L-BIR1 can measure resistance in the presence of reactive loads up to 2 mH or 100 μF.
The R1L-BIR1 includes one pair pf BCP-10 Kelvin probes and one set of KAK-04 Kelvin alligator clips.
特点
- Ranges: 2 mΩ to 20Ω
- Accuracy: 0.25% of reading
- Resolution: 1 µΩ
- Portable: Long Rechargeable Battery Life
- Simple Operation
- Includes 4-Wire Push Pin & Alligator Clip Probes, (8) BKP-B Replacement “Spear” Pin Tips, power cord, user manual, (3) BA-110 rechargeable NiCad batteries, and spare fuse
- 3-Year Warranty
- Assebled in the USA
益处
- Instrument designed into rugged storage/carry case for added protection
- Thermal offset compensation to maintain accuracy in varying ambient temperatures
- Rechargeable battery provides long operation time for continuous daily use
- Quick set up and easy operation
- designed to meet the 30+ measurement requirements of the Kiowa Warrior Maintenance Procedure
规格
| 准确性: | ±(0.25% rdg + 1 cnt) |
|---|---|
| Connector Type: | Banana |
| Datalogging: | No |
| Intrinsically Safe: | No |
| Max. Resolution: | 1 µΩ |
| Maximum Test Current: | 1.4 A |
| 测量范围: | 1 µΩ to 20 Ω |
| 工作温度（°C）: | 0 to 50 ⁰C |
