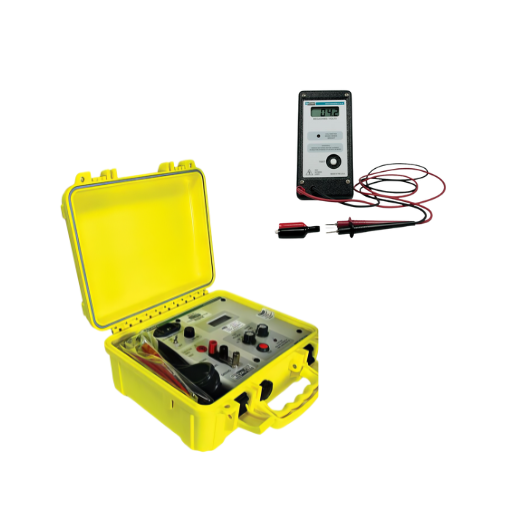

R1M Series

Active

Portable Megohmmeter

Advanced Energy's R1M Series of megohmmeters are designed to measure high values of resistance associated with insulation resistance. With six resistance ranges (1 MΩ full scale to 200 GΩ full scale), the megohmmeters offer four test voltages of 50, 100, 250, and 500 volts DC. The resistance readings are displayed on a 3-1/2 digit LCD.

特点

Megohmmeter measures up to 200 GΩ in 6 Selectable Ranges
Measurement Accuracy ± 5%
50, 100, 250, 500 V Test Voltages
3½ Digit Display

益处

Rugged Weather Tight Case
Use Versatile Test Probes
Front panel LED to indicate the presence of voltage
NSN: 6625-01-344-9273
3 year warranty
Made in USA

规格

Basic Accuracy:	±5%
Connector Type:	Banana
Datalogging:	No
Intrinsically Safe:	No
Max. Resolution:	1 kΩ
测量范围:	1 MΩ to 200 GΩ
工作温度（°C）:	0 to 50 ⁰C

库存检查

型号购买	Connector Type	Max. Resolution	Measurement Range	Operating Temp	购买
PR-850 Active, 联系我们 Kelvin Pistol Grip Probes, Stainless Steel Pins 购买					购买
R1M-910-850 Active, 联系我们 Probe, Surface Resistance 购买					购买
R1M-A Active, 联系我们 Megohmmeter, Portable 1 MΩ to 200 GΩ, 3%, 500V, 3.5 Digit (no CE) 购买	Banana	1 µΩ	1 MΩ to 200 GΩ	0 to 50 ⁰C	购买
R1M-B Active, 联系我们 Megohmmeter, Handheld, 1MΩ to 200MΩ, 3%, 500V, 3.5 Digit; no CE 购买	Banana	1 µΩ	1 MΩ to 200 GΩ	0 to 50 ⁰C	购买

技术文档

标题	类型
TEGAM Resistance Brochure (415 KB)	手册
R1M-A Datasheet (347 KB)	数据表
R1M-B Datasheet (382 KB)	数据表
R1M-A Manual (910 KB)	手册
R1M-A Manual (for units purchased prior to October 2013) (2 MB)	手册
R1M-B Manual (894 KB)	手册
