R1M-A Mega-Ohmmeters
Megohmmeter, Portable 1 MΩ to 200 GΩ, 3%, 500V, 3.5 Digit (no CE)

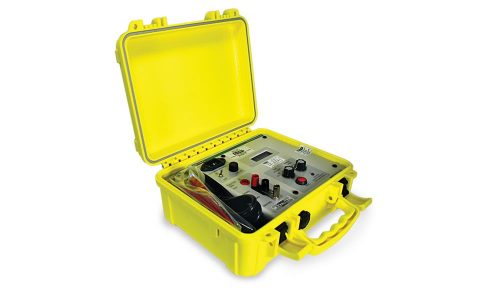

The Model R1M-A from TEGAM is a portable Megohmmeter designed to measure high values of resistance associated with the measurement of insulation resistance. It has six resistance ranges from 1 MΩ full scale to 200 GΩ full scale. Four test voltages of 50, 100, 250, and 500 volts DC are provided (50 V maximum to be used with resistances less than 1 MΩ). Resistance readings are displayed on a 3 1/2 digit LCD.
The R1M-A is packaged in a rugged, weather tight case, designed to withstand the wear and tear of industrial and military applications, and has a gasket lid. An internal compartment is provided to store the line cord and a set test cables for this megohmmeter.
特点
- Megohmmeter measures up to 200 GΩ in 6 Selectable Ranges
- Measurement Accuracy ± 5%
- 50, 100, 250, 500 V Test Voltage
- 3 1/2 Digit Display
- Rugged Weather-Tight Case
- Use Versatile Test Probes
- NSN: 6625-01-344-9273
- 3 year warranty
- Assembled in the USA
益处
- Instrument built into rugged storage/carry case for added protection
- Used for measuring very high resistance levels
规格
| Connector Type: | Banana |
|---|---|
| Datalogging: | No |
| Intrinsically Safe: | No |
| Max. Resolution: | 1 µΩ |
| 测量范围: | 1 MΩ to 200 GΩ |
| 工作温度（°C）: | 0 to 50 ⁰C |
