2601A High Power RF Sensor
High Power RF Transfer Standard, 250 kHz to 1000 MHz

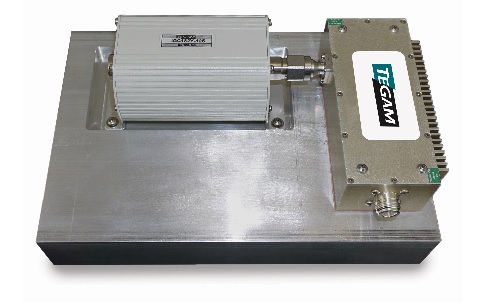

Advanced Energy's 2601A high power RF transfer standards enable the precise measurement of RF power (2.5 W to 250 W) in the 250 kHz to 1000 MHz frequency range.
The design is mounted on an aluminum heat sink to reduce changes in coupling factor attributable to heating. These standards are highly accurate and stable with time and temperature. They are ideal for use as standards for the transfer of calibration factors to other high power RF standards and sensors.
The calibration of these standards is traceable to the International System of Units (SI) through the National Institute of Standards and Technology (NIST) or other recognized National Metrology Institutes.
特点
- 250 kHz to 1000 MHz frequency range
- 2.5 to 250 W dynamic range (+34 to +54 dBm)
- 1% basic accuracy
益处
- Enables calibration of high power RF sensors and meters
- Compatible with TEGAM High Power RF Calibration System (HPC-250)
规格
| Basic Accuracy/Linearity: | 1.0% (typical) |
|---|---|
| Directivity: | N/A |
| Frequency Range: | 250 kHz to 1 GHz |
| Impedance (nominal): | 50 Ohms |
| Insertion Loss: | 0.5dB (typical) |
| Power Range (typical): | 2.5 W to 250 W |
| Power Requirements: | Thermistor Power Meter Required |
| Resolution (W): | NA |
