5540A Series RF Power Meters
High Power, High-Accuracy RF Measurement in a Single Instrument
Advanced Energy's 5540A Series of RF power meters provide high power, high accuracy measurements with a sensor and meter that are built into one instrument. The 5540A also has the unique capability of being calibrated at multiple available frequency points, creating a single meter that can replace multiple existing power sensors. Offering rich functionality and an easy-to-use design, this series is ideal for use in semiconductor applications, for which measurement certainty and repeatability are imperative. It is powered by a standard USB 2.0 port, external battery, or AC power outlet using off-the-shelf USB adapters. Because the meter is built-in, there is less equipment, and fewer cables, to carry to the field or bench.
特点
- Accuracy: ±0.5% + 0.5 W at 2σ (at calibrated frequencies and power levels)
- 0.2-200 MHz, 3 to 5,000 W
- Meter and Sensor build into one instrument
- One sensor can be calibrated at multiple frequencies
- Read forward and reverse power, VSWR, and frequency simultaneously on the integrated display
- 1 year calibration interval
益处
- Exceptional accuracy makes the 5540A ideal for RF generator calibration
- Multiple frequencies in one instrument reduces the number of required sensors
- An all in one meter/sensor reduces equipment required for use and maintenance
- A longer calibration interval increases the time your power meter is at your facility ready for use
规格
| Basic Accuracy: | +/- (0.5% of Rdg + 0.5 W) |
|---|---|
| Communication: | USB |
| Frequency Range: | 200 kHz to 200 MHz |
| Power Range: | 3 W to 5 kW |
| Power Range (typical): | 3 W to 5 kW |
| Power Requirements: | 5VDC, 500 mA USB Type B |

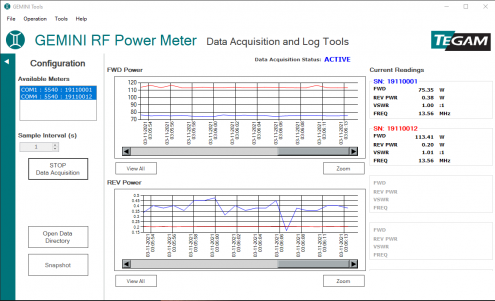

Accessories Stock Check
技术文档
.png?resizemode=force&maxsidesize=408)
服务
Repair
Our worldwide service centers provide fast cycle times, use only AE-qualified parts, and follow the original product's specifications and test procedures for the highest quality repair or calibration.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Calibration and Alignment
Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications. Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
