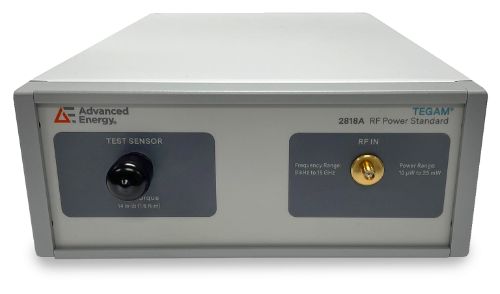

2800 Series RF Power Standards - Thermoelectric

Active

9 kHz to 18 GHz RF Power Transfer Standard

库存检查数据表

Advanced Energy's 2800 Series RF Power Transfer Standards are tools you can rely on every day. Built upon proven technologies, the 2800 series offers new features and advantages in a RF Power Transfer Standard. Utilizing TEGAM's well established transfer standard techniques applied to a referenced thermoelectric sensor, this series performs faster while retaining excellent performance and accuracy.

特点

9 kHz to 18 GHz frequency range
Fast reading settling time of < 2s
0.01 to 10mW typical usable range (-20 to +10 dBm), expandable with attenuators
Basic accuracies of </= 1.0%
3 year warranty
Rack mount option available
Assembled in the USA

益处

Frequency range covers the calibration range of most type-N sensors
Increase your workload with faster power measurements
Calibrate sensors in multiple power ranges, utilizing optional attenuators
Years of worry-free performance with industry leading warranty

规格

Basic Accuracy:	+/-(0.8 to 1.0)% from 9 kHz to 18 GHz
Calibration Factor Accuracy (typical):	+/-(0.8 to 1.0)% from 9 kHz to 18 GHz
Connector Type:	N- female
Frequency Range:	9 kHz to 18 GHz
Power Range:	0.01 to 10 mW (-20 to +10 dBm)
Required Power Meter:	USB Virtual
RF Impedance (nominal):	50 Ohms
Sensor Type:	Thermoelectric

库存检查

型号购买	Calibration Factor Accuracy (typical)	Connector Type	Frequency Range	Power Range	Required Power Meter	购买
2818A Active, 联系我们 RF Transfer Standard 购买	+/-(0.8 to 1.0)% from 9 kHz to 18 GHz	N- female	9 kHz to 18 GHz	0.01 to 10 mW (-20 to +10 dBm)	USB Virtual	购买

Accessories Stock Check

Power Sensor Calibration Accessories

PM Series Accessories

View Page

技术文档

标题	类型
2818A Datasheet (429 KB)	数据表
2818A RF Power Transfer Standard Manual (1 MB)	手册
