Impac 500 Series Pyrometers
Digital pyrometers with small sensor head for non-contact temperature measurement of non-metallic or coated metallic surfaces. Temperature range -40 to 700 °C.

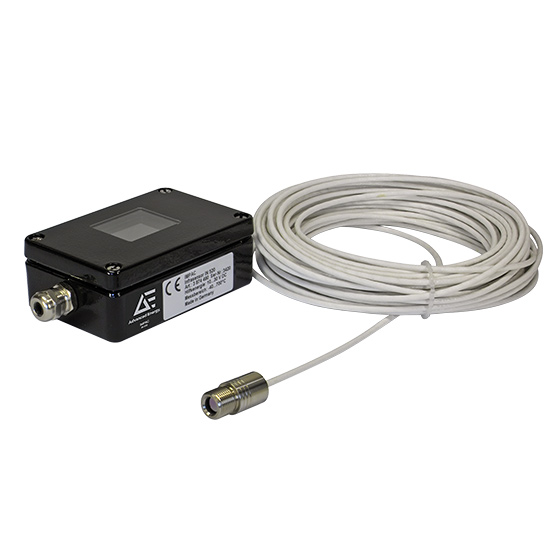

The IN 510-N, IN 510, IN 520-N, and IN 520 are digital pyrometers for non-contact temperature measurement of non-metallic or coated metallic objects.
The versions IN 510 and IN 520 are equipped with an illuminated LC display that shows the actual temperature reading. The types IN 510-N and IN 520 do not have a display and keyboard and are parametrized via interface.
特点
- Easy electrical and mechanical installation
- Very small housing dimensions
- Small spot sizes
益处
- Install in small, harsh industrial environments
- Use in ambient temperature up to 70 °C without cooling
- Adjust emissivity between 40 to 100 %
规格
| 工作温度范围 (°C): | -40 to 700 °C |
|---|---|
| 光谱范围（微米）: | 8 to 14 |
| 测量不确定性（°C）: | From 0.8% oR or 1 °C |
| 光学器件（毫米）: | Fixed optics |
| 视场角（最小光斑尺寸）（毫米）: | 2:1 or 10:1 |
| 校准/瞄准: | None |
| 接口/输出（毫安）: | 0/4 to 20 mA |
| 曝光时间 t90（毫秒）: | 180 ms |
配件
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
技术文档
比较
| Model | Impac 500 Series | Impac 600 Series |
|---|---|---|
| 光谱范围（微米） | 8 to 14 | 0.7 and 14 (5 ranges in between) |
| 测量不确定性（°C） | From 0.8% oR or 1 °C | From 0.5% oR or 0.8 °C |
| 光学器件（毫米） | Fixed optics | Fixed optics |
| 视场角（最小光斑尺寸）（毫米） | 2:1 or 10:1 | Min. 70:1 |
| 接口/输出（毫安） | 0/4 to 20 mA | 0/4 to 20 mA |
| 曝光时间 t90（毫秒） | 180 ms | Multiple specifications. Please refer to Datasheet. |
| 环境温度（°C） | 0 to 180 | 0 to 70 |
| 显示屏 | LCD, 4 digit, 3 values per second, display illumination permanent | Color LCD, 262,000 colors (optional) |
