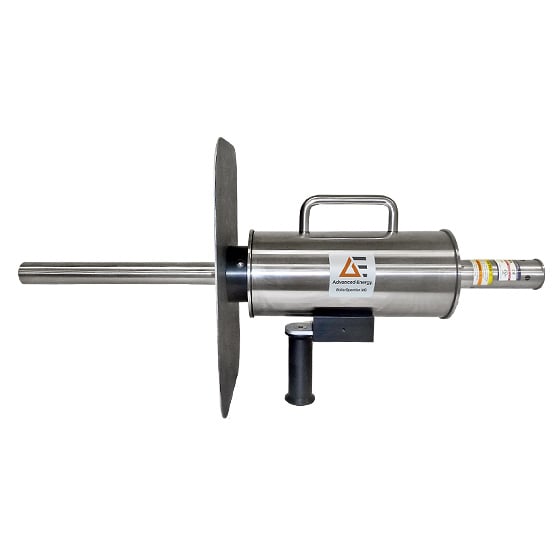

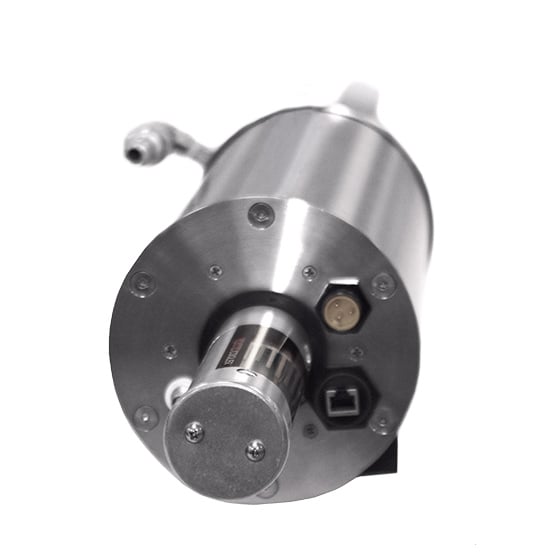

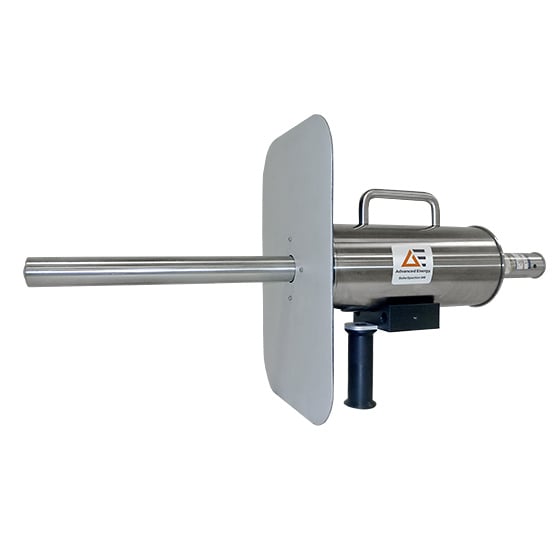

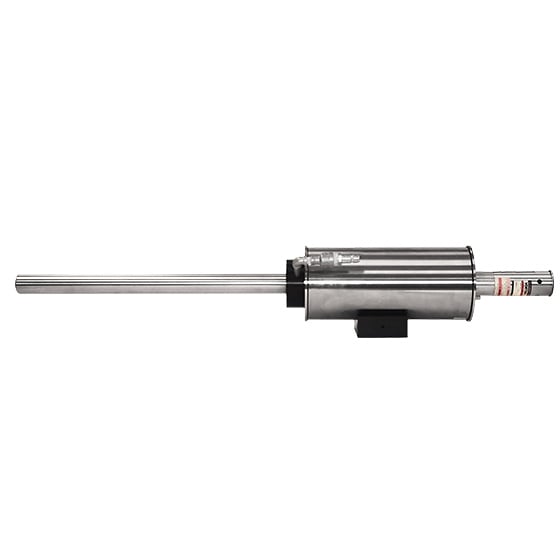

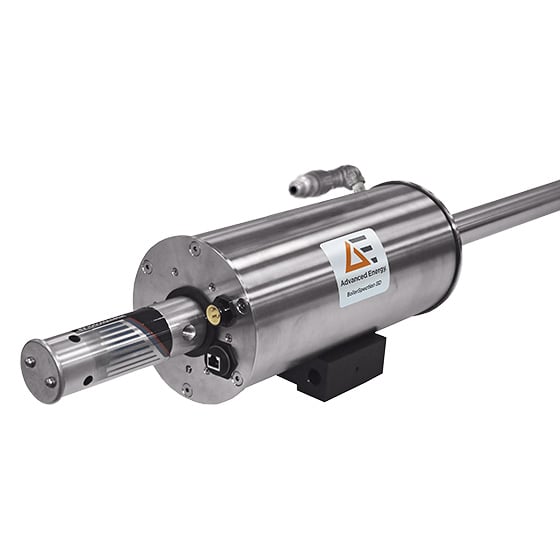

BoilerSpection Series
Mobile and Turnkey Infrared Camera for Clear and Continuos Imaging inside Boilers and Furnaces
特点
- IR imaging with cooled borescope lens
- Special mid-wave infrared detector to see through flames
- Measure temperature across entire image
- Removable radiation shield with mobile/semi-permanent model
- Automatic retraction system with weld/bolt model
- Compatible with BoilerSpection continuous monitoring solution
- Included LumaSpec Real-Time (RT) or Offline tool for data analysis
- Network software system integrated into plant DCS
- Full-service field installation and maintenance options
益处
- Increase efficiency by improving heat transfer
- Capture lost boiler capacity by reducing cleaning frequency
- Lower maintenance costs by optimizing cleaning
- Inspect build-up of ash/slag on boiler tubes
- Pinpoint problems, such as clinkers, before they cause outages
- Diagnose burner flame conditions
- Record and analyze data to optimize combustion processes
- Optimize fuel switching strategies with ash rate and uniformity tracking
- Speed up boiler light off and regulate fuel and airflow for lower consumption
- Reduce emissions and improve safety
规格
| 工作温度范围 (°C): | 0 to 60 |
|---|---|
| 波长范围（纳米）: | 3900 |
| 光学接口: | Manual Focus |
| 通道数: | 1 |
| 准确性: | ±2 deg C or 2% of reading |
| 测量速率（赫兹）: | 9 Hz, 50 Hz |
| 视野: | 50° to 72° |
| 过滤器（微米）: | 3.9 to 5.2 |
配件
Mikron LumaSpec Offline Analyzer 5.0
Advanced Thermal Image Processing, Analysis, and Report-Writing Software
Mikron LumaSpec RT Software
Windows-Based, Real-Time Data Acquisition Software
