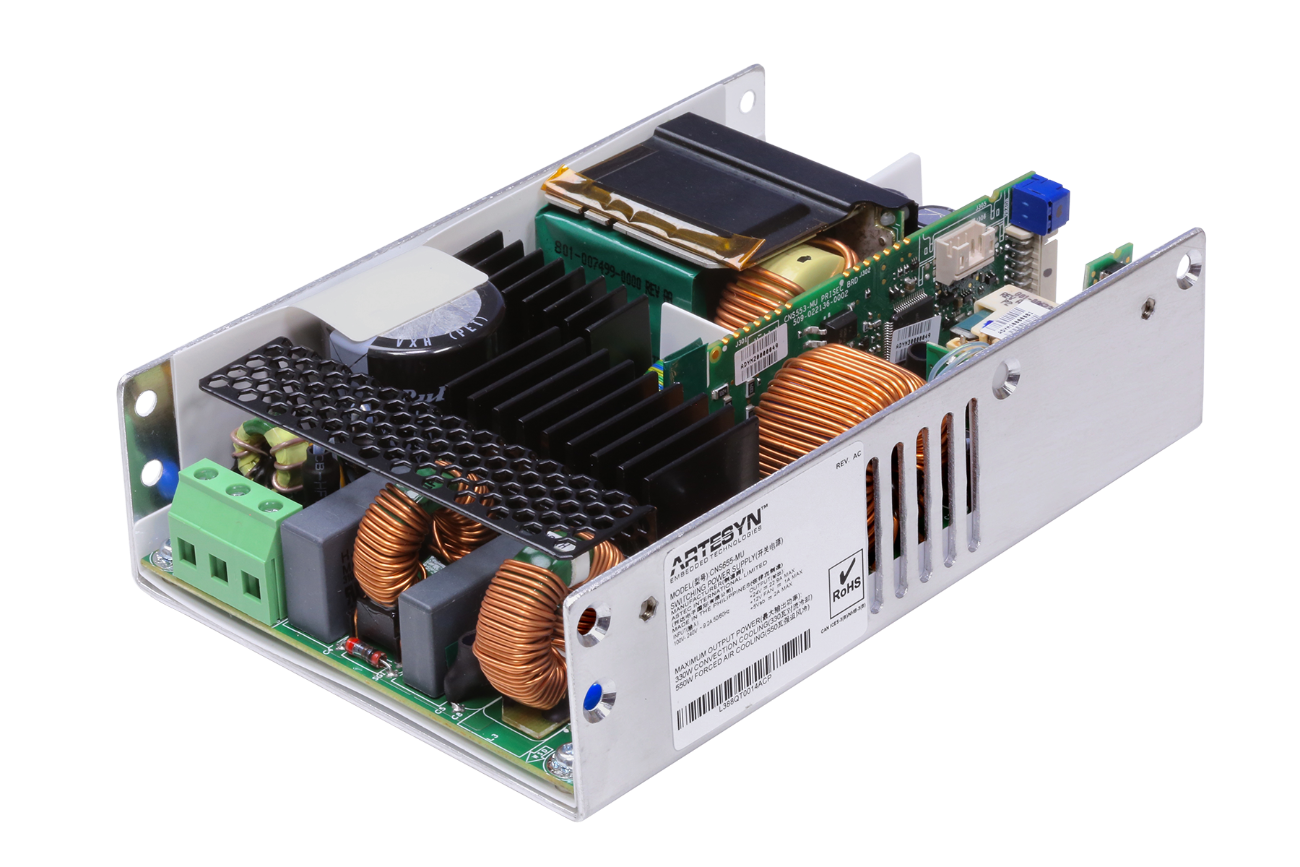

CNS650-MU Series
Active
650 W Open Frame AC-DC Power Supplies
The CNS650-MU series of single output open-frame AC-DC power supplies are offered in 12 V, 24 V, or 48 V outputs with +15% Trim range. Each power supply comes with a 12 V fan output and 5 V standby. All models feature ITE and medical safety approvals and accept a universal input of 90 to 264 VAC. Depending on operating conditions, its 4 inches x 6 inches x 1.54 inch compact and high density "U-Channel" Construction delivers up to 400 W of output power with free air convection cooling and up to 650 W with 400 LFM of forced air. These power supplies are ideal for industrial systems as well as for medical applications.
Eigenschaften
- Input Range 90-264 VAC
- Frequency 47-63 Hz (360-440 Hz)
- Efficiency >90%
- Maximum Power 650 W Forced Air
- Maximum Power 400 W Natural Convection
- Fan Output 12 V @ 1 A
- Standby Output 5 V @ 2 A
- Remote Sense 2 Wire (+ and -)
Vorteile
- PWOK Signal Output Power OK
- VIN_Good Input Line OK signal
- Remote Inhibit On/Off pin
Spezifikationen
| Ausgangsleistung (W): | 650 |
|---|---|
| Länge (Zoll): | 6 |
| Breite (Zoll): | 4 |
| Höhe (Zoll): | 1.54 |
| Montage Typ: | Embedded PSU |
| Minimaler Ausgangsstrom (A): | 0 |
| Maximaler Ausgangsstrom (A): | 54.2 |
| Ausgangsspannungsbereich (V): | 12V to 52.8V |
Zubehör
Universal PMBus GUI Software Package
The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
