Impac ISR 6 Series Pyrometers

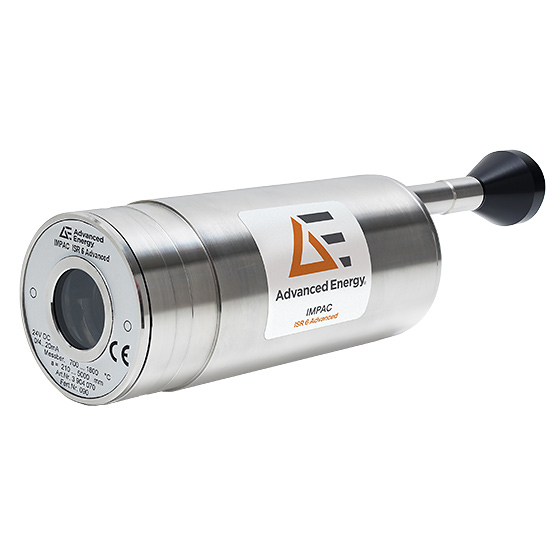

Highly accurate digital ratio pyrometer (switchable to mono mode) with focusable optics and integrated display. Temperature ranges between 600 and 3000 °C.
The Impac® ISR 6 pyrometer measures in the two-color method (ratio method). Two adjacent wavelengths are used for temperature determination. Temperature measurement is largely independent of the object’s emissivity and, in wide ranges, unaffected by dust and other contaminants in the field of view. The ISR 6 Advanced can be connected to a PC through an RS485 to USB connection. This enables you to adjust parameters using InfraWin software. This can be used for temperature indication, data logging, and complete temperature processes analysis.
Eigenschaften
- Complete digital core for subrange and adopted analog output
- Very fast 2 ms response time for highly dynamic processes
- High-quality optics with manual focus capability
- Robust, stainless steel sensor for harsh environments (IP65/NEMA4)
- Available with integrated line optics (line-spot shape)
Vorteile
- Switch to one-color mode and use as a conventional pyrometer in a spectral range near 0.9 μm
- Measure fast processes and objects smaller than the spot size
- Connect to a PC through an RS485 to USB connection
- Make parameter adjustments via the InfraWin software
Spezifikationen
| Betriebstemperaturbereich (°C): | 600 and 3000 °C (4 ranges in between) |
|---|---|
| Spektralbereich (µm): | 0.9 and 1.05 (2 ranges in between) |
| Messunsicherheit (°C): | From 0.3% oR + 2 °C |
| Optik (mm): | Focusable optics |
| FOV (minimale Punktgröße) (mmm): | Min 350:1 (0.6) |
| Ausrichten / Sichten: | Built-in laser aiming light, through-lens sighting, or color TV camera |
| Schnittstelle / Ausgang (mA): | 0/4 to 20 mA |
| Belichtungszeit t90 (ms): | 2 ms |
Zubehör
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac TQCS Software
Temperature Quality Control System for Recording and Archiving (supplementary downloads only; contact sales for software)
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
Technische Dokumentation
Vergleichen Sie

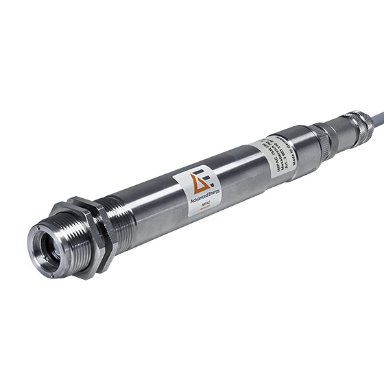

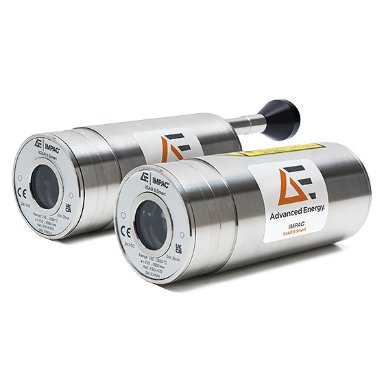

| Model | Impac ISR 6 Series | Impac IGAR 6 Series | Impac ISR 320 Series | Impac IGAR 320 Series |
|---|---|---|---|---|
| Spektralbereich (µm) | 0.9 and 1.05 (2 ranges in between) | 1.5 and 2.5 (2 ranges in between) | 0.9 and 1.05 (2 ranges in between) | 1.5 and 2.5 (2 ranges in between) |
| Messunsicherheit (°C) | From 0.3% oR + 2 °C | From 0.4% oR + 2 °C | From 0.5% oR + 1 °C | 0.6% oR + 2 °C |
| Optik (mm) | Focusable optics | Focusable optics | Fixed optics | Fixed optics |
| FOV (minimale Punktgröße) (mmm) | Min 350:1 (0.6) | Min 100:1 (2.1) | Min 100:1 (3) | Min 100:1 (3) |
| Ausrichten / Sichten | Built-in laser aiming light, through-lens sighting, or color TV camera | Built-in laser aiming light, through-lens sighting, or color TV camera | Built-in LED targeting light and LEDs for intensity alignment | Built-in LED targeting light and LEDs for intensity alignment |
| Schnittstelle / Ausgang (mA) | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA |
| Belichtungszeit t90 (ms) | 2 ms | 2 ms | 10 ms | 10 ms |
| Anzeige | LED, 4 digit matrix, 5 mm high for 2-color or 1-color temperature signal or measuring distance | LED, 4 digit matrix, 5 mm high for 2-color or 1-color temperature signal or measuring distance | ||
| Emissionsgrad Neigung | 0.800 to 1.200 in 0.1% steps (2-color mode) | 0.600 to 2.000 in 0.1% steps (2-color mode) | 0.800 to 1.250 in 0.1% steps (2-color mode) | 0.600 to 2.000 in 0.1% steps (2-color mode) |
