new • artesyn™

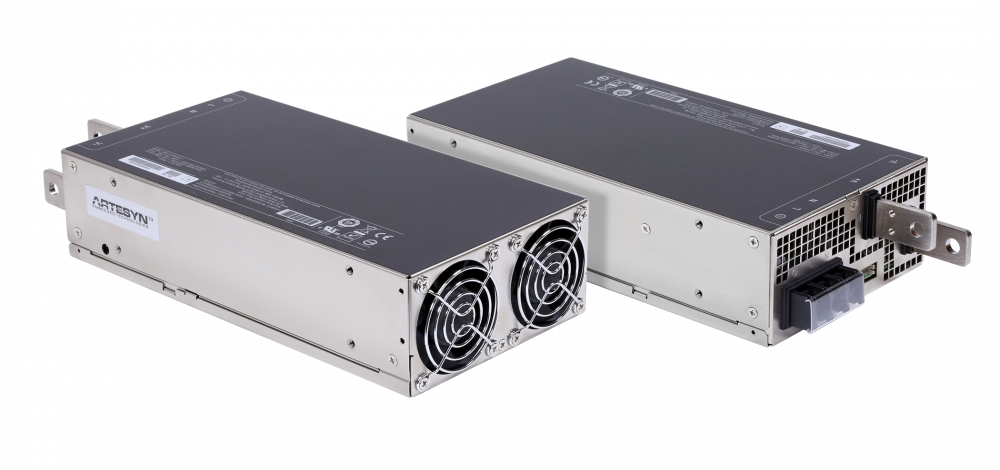

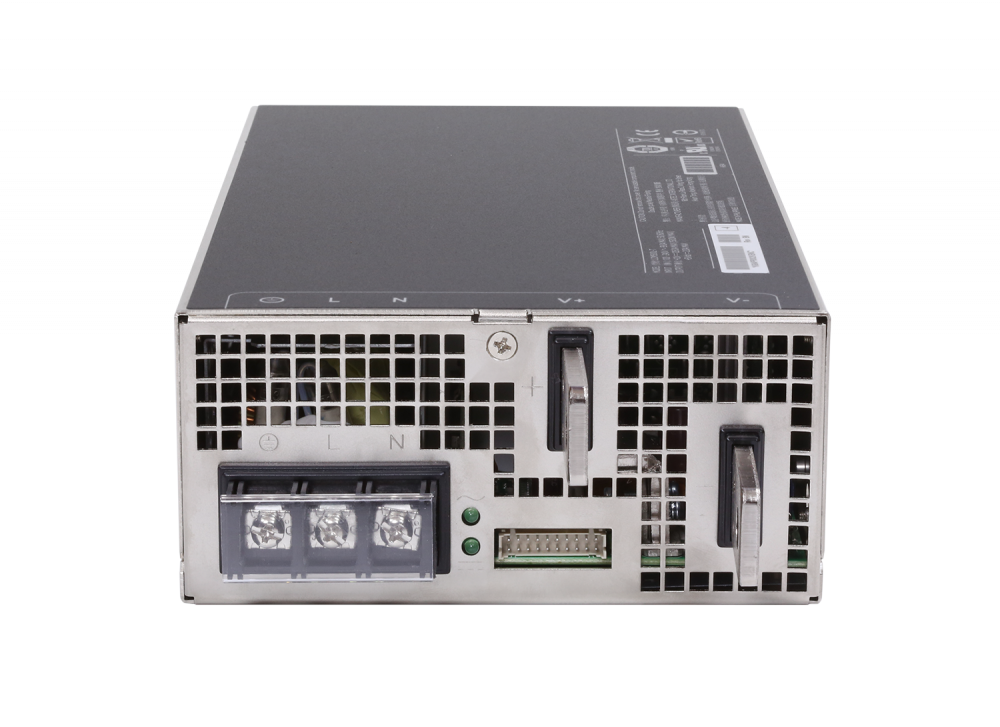

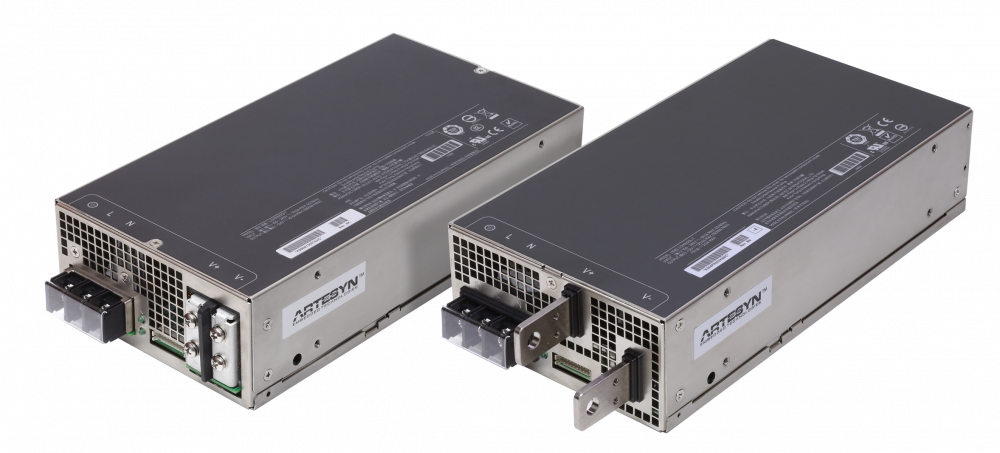

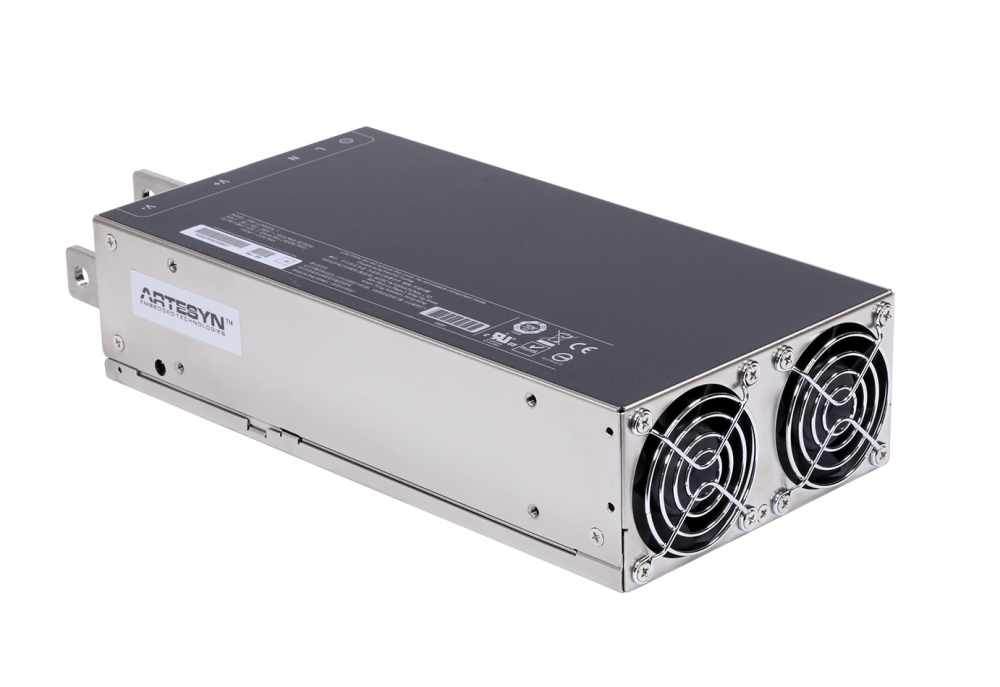

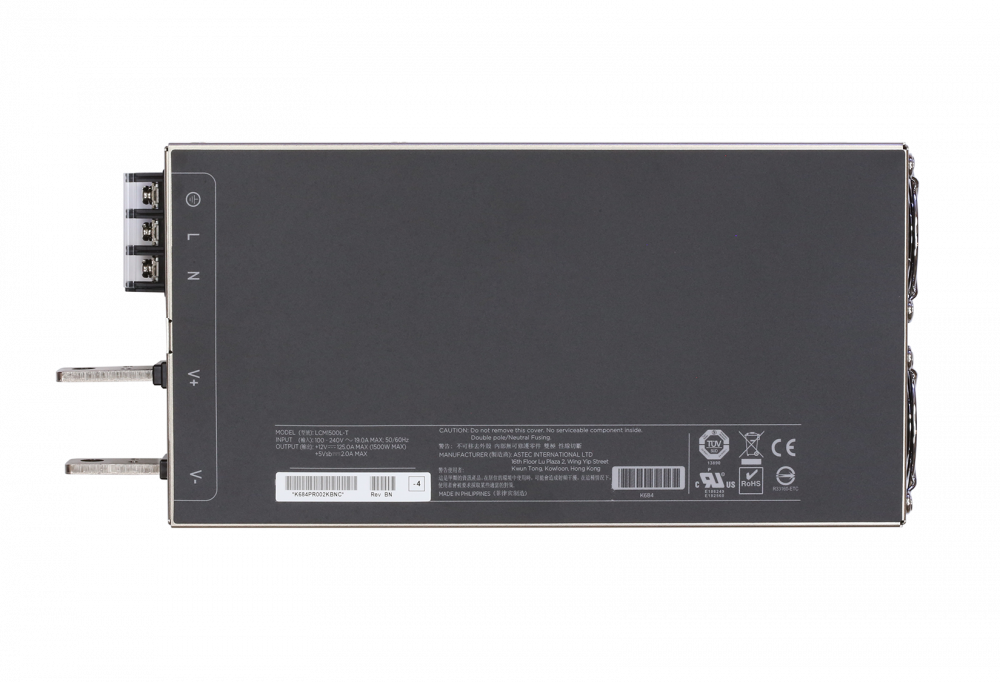

LCM1500 Series

Active

1500 W Bulk Front-End

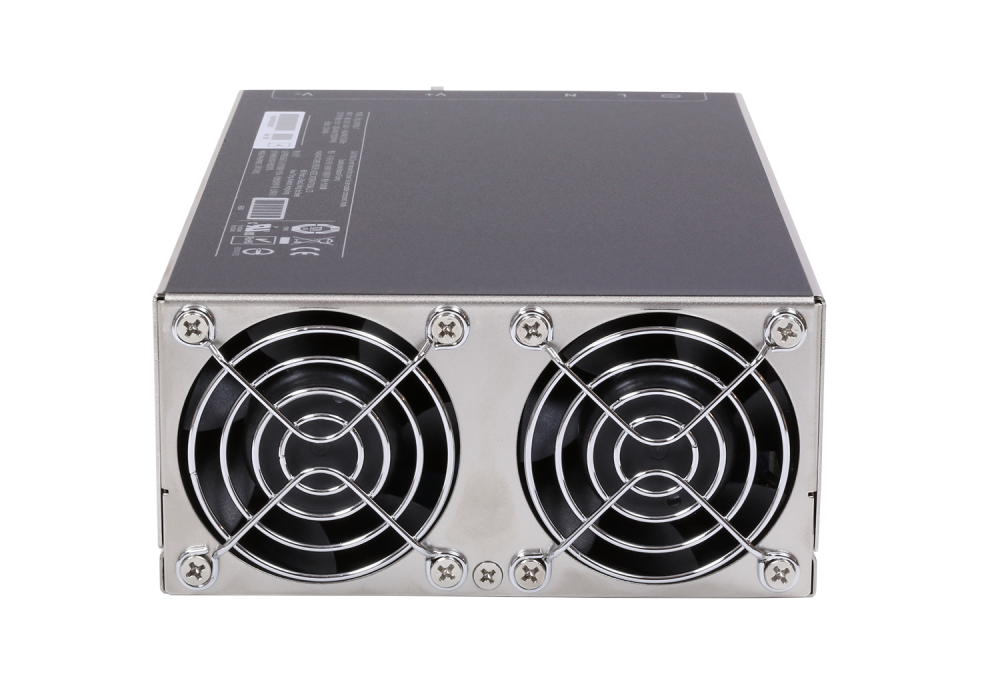

Advanced Energy's LCM1500 provides a low cost solution to Industrial and Medical single output high power requirements. Full featured, the 2.4" x 5" x 10" enclosed form factor utilizes a smart fan for self contained thermal management at very low acoustic noise levels. Digital DSP control allows for a high level of modification flexibility. Voltage output for the series ranges from 10.8 V to 52.8 V at a continuous output power of 1500 W. The LCM1500 also provides an optional 5 V standby and many optional I/O configurations.

Features

  • 10% adjustment range
  • 12 Watts per cubic inch
  • 1500 Watts output power with no derating
  • 40 °C to 70 °C with derating
  • High efficiency: 89% typical
  • Latest CCC approvals (5000m)
  • Optional 5V @ 2A housekeeping
  • RoHS 2
  • Hold-up Time 20 mSec
  • Power Factor 0.99 Typical
  • Inrush Currect <= 25A Peake
  • Frequency 47 - 440 Hz
  • Input Range 90-264 VAC
  • Leakage <0.3mA at 264 VAC
  • Efficiency >89% TYP
  • Adjust Range +/- 10%
  • Over Voltage Protection 125% to 145% of rated output
  • Over Current Protection 105% to 125% of rated output
  • Current Share Forced to within 10%
  • Max Units in Parallel 10
  • Noise (P-P) 1% max
  • Total Regulation +/- 2.0%
  • Fan Noise <45dBA, 80% load 30C, off with inhibit

Benefits

  • Conformal coat option
  • DSP controlled
  • EMI Class A
  • Industrial/Medical Safety Approvals
  • Low cost
  • ORing FET
  • Remote margin programming
  • Variable speed smart fans

Specifications

Output Power (W): 1500
Length (Inches): 10
Width (Inches): 5
Height (Inches): 2.4
Mounting Type: Embedded PSU
Minimum Output Current (A): 0
Maximum Output Current (A): 133
Output Voltage Range (V): 0V to 52.8V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
LCM1500L-T Active, In Stock
AC-DC 1500W 12V Term Blk
10.8 13.2 133 12 1 Request Buy
LCM1500L-T-4 Active, In Stock 10.8 13.2 133 12 1 Request Buy
LCM1500N-T Active, In Stock
AC-DC 1500W 15V Term Blk
13.5 16.5 100 0 1 Request Buy
LCM1500Q-T Active, In Stock
AC-DC 1500W 24V Term Blk
21.6 26.4 67 24 1 Request Buy
LCM1500Q-T-4 Active, In Stock 21.6 26.4 67 24 1 Request Buy
LCM1500R-T Active, In Stock
AC-DC 1500W 28V Term Blk
25.2 30.8 53 28 1 Request Buy
LCM1500R-T-4 Active, In Stock 25.2 30.8 53 28 1 Request Buy
LCM1500U-T Active, In Stock
AC-DC 1500W 36V Term Blk
32.4 39.6 43 36 1 Request Buy
LCM1500U-T-4 Active, In Stock 32.4 39.6 43 36 1 Request Buy
LCM1500W-T Active, In Stock
AC-DC 1500W 48V Term Blk
43.2 52.8 33 48 1 Request Buy
LCM1500W-T-4 Active, In Stock 43.2 52.8 33 48 1 Request Buy

Accessories

Universal PMBus GUI Software Package

The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.

Technical Documentation

Title Type
Horticultural Lighting Brochure_Chinese Version Catalog (763 KB) Catalog
Horticultural Lighting Brochure_English Version Catalog (3 MB) Catalog
Horticultural Lighting Brochure_Japanese Version Catalog (1 MB) Catalog
LCM Series Brochure (French) Catalog (457 KB) Catalog
LCM Series Brochure (German) Catalog (556 KB) Catalog
LCM Series Brochure_Chinese Version Catalog (530 KB) Catalog
LCM Series Brochure_English Catalog (441 KB) Catalog
LCM Series Brochure_Japanese Version Catalog (514 KB) Catalog
LCM Series Brochure_Korean Version Catalog (722 KB) Catalog
LCM1500 Data Sheet Datasheet (1016 KB) Data Sheet
LCM1500 Data Sheet Korean (1 MB) Data Sheet
LCM1500Q-T RoHS2 CoC RoHS Certificate (27 KB) RoHS Certificate
LCM1500Q-T-4 RoHS2 CoC RoHS Certificate (95 KB) RoHS Certificate
LCM1500Q-T-B RoHS2 CoC RoHS Certificate (95 KB) RoHS Certificate
LCM1500U-T-4 RoHS2 CoC RoHS Certificate (95 KB) RoHS Certificate
LCM1500W-T RoHS3 CoC RoHS Certificate (17 KB) RoHS Certificate
LCM1500W-T-B RoHS2 CoC RoHS Certificate (95 KB) RoHS Certificate
LCM1000_LCM1500 IEC 62368 CB Test Certificate Safety Certificate (151 KB) Safety Certificate
LCM1500 CE Declaration of Conformity Safety Certificate (39 KB) Safety Certificate
LCM1500 UKCA Safety Certificate (29 KB) Safety Certificate
LCM1500_1000 UL Certificate (Med) ver 3.0 Safety Certificate (44 KB) Safety Certificate
LCM1500_1000 UL Certificate (Med) ver 3.1 Safety Certificate (45 KB) Safety Certificate
LCM1500_LCM1000 CB Certificate (ITE) (175 KB) Safety Certificate
LCM1500_LCM1000 CB Certificate (Med) (582 KB) Safety Certificate
LCM1500_LCM1000 TUV Certificate Safety Certificate (829 KB) Safety Certificate
LCM1500_LCM1000 UL Certificate (ITE) (169 KB) Safety Certificate
LCM1500L-T_LCM1000L-T BSMI Certificate (290 KB) Safety Certificate
LCM1500Q-T BIS CERTIFICATE Safety Certificate (171 KB) Safety Certificate
LCM1500Q-T_UL Certificate (Med) (30 KB) Safety Certificate
LCM1500Q,W-T_LCM1000Q,W-T BSMI Certificate (200 KB) Safety Certificate
LCM1500R-T_BSMI Certificate Safety Certificate (355 KB) Safety Certificate
LCM1500U-T_LCM1000U-T_BSMI Certificate (287 KB) Safety Certificate
LCM1500W-T-5-411_CE Declaration of Conformity Safety Certificate (109 KB) Safety Certificate
LCM1500W-T-5-411_TUV Certificate (858 KB) Safety Certificate
LCM1500 Technical Reference Note (6 MB) Technical Reference
