LCM300 Series
Active
310 to 350 W Front-End AC-DC Power Supplies

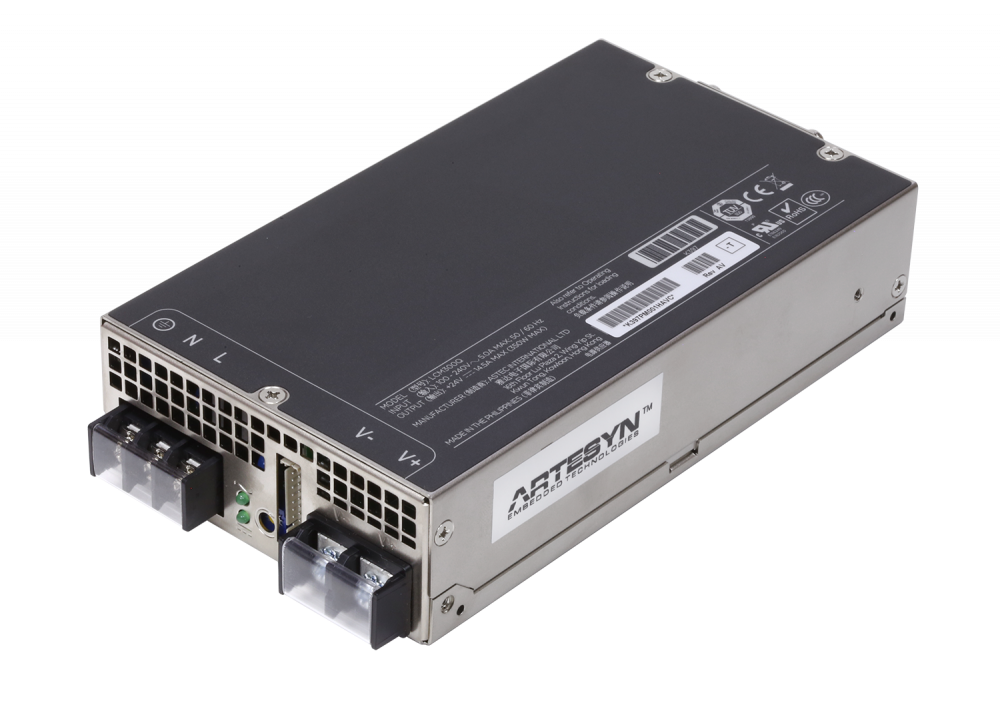

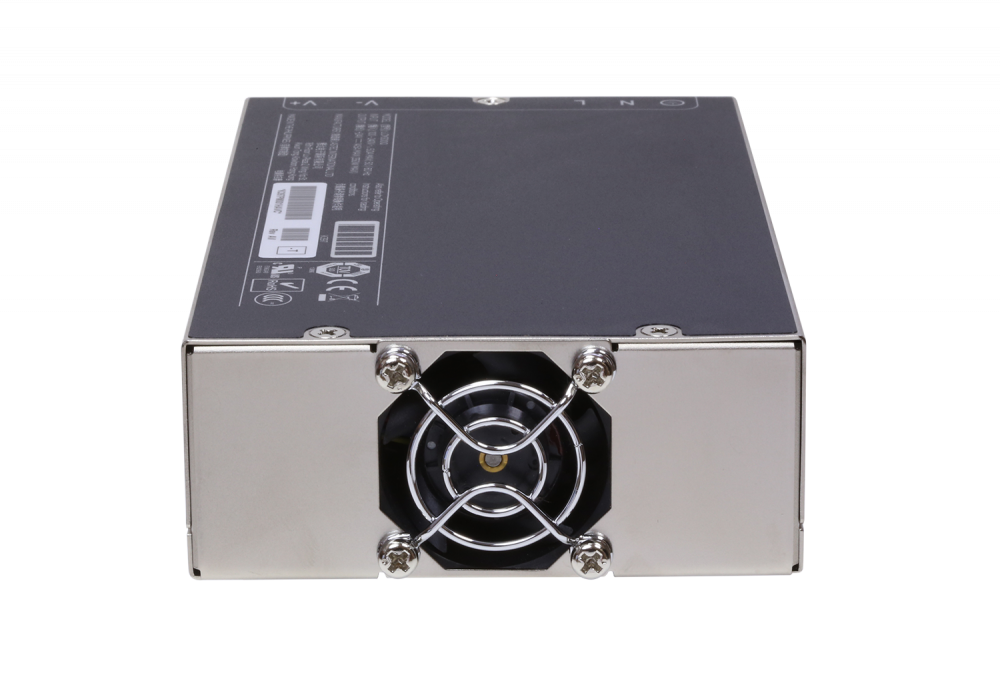

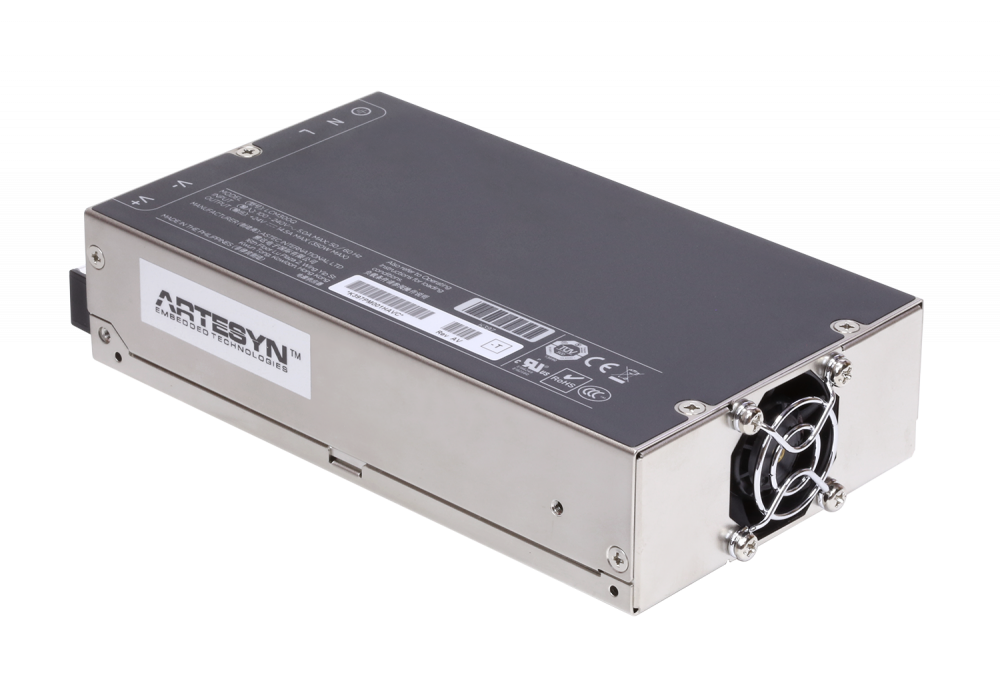

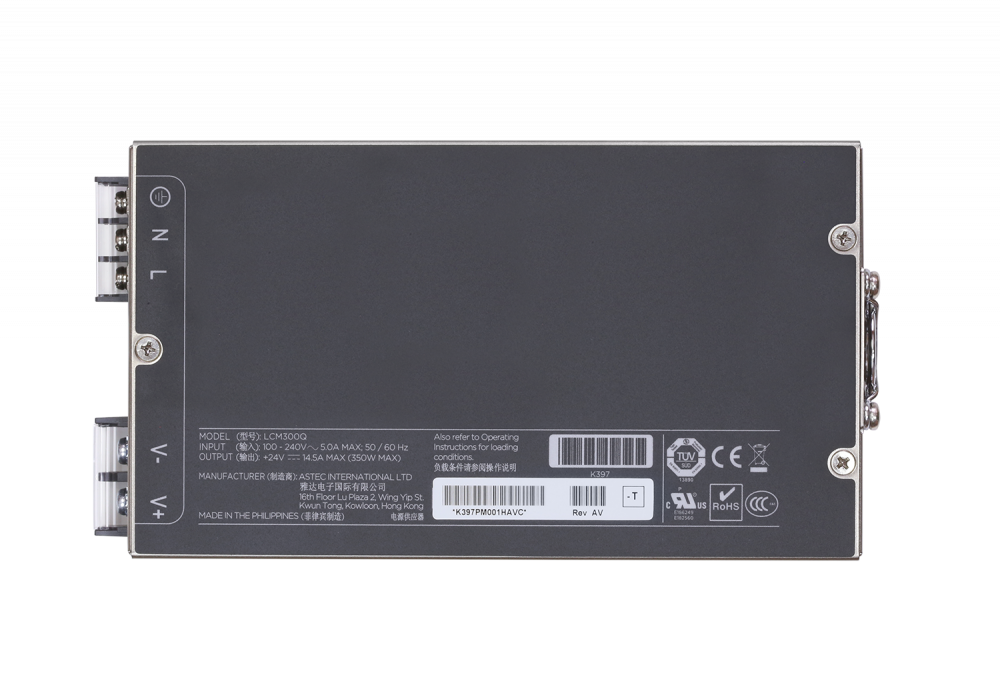

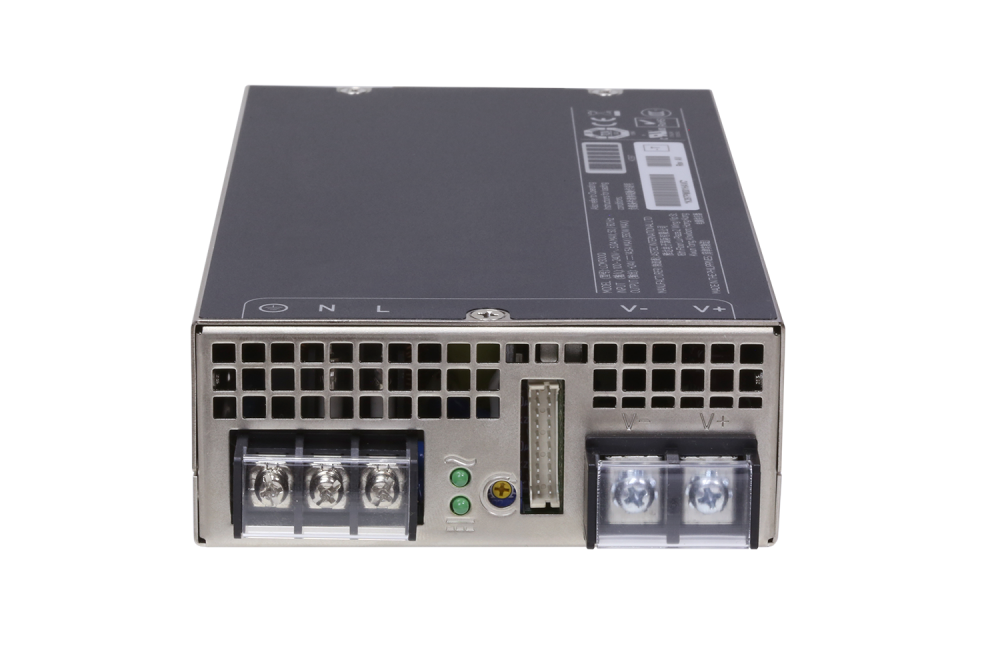

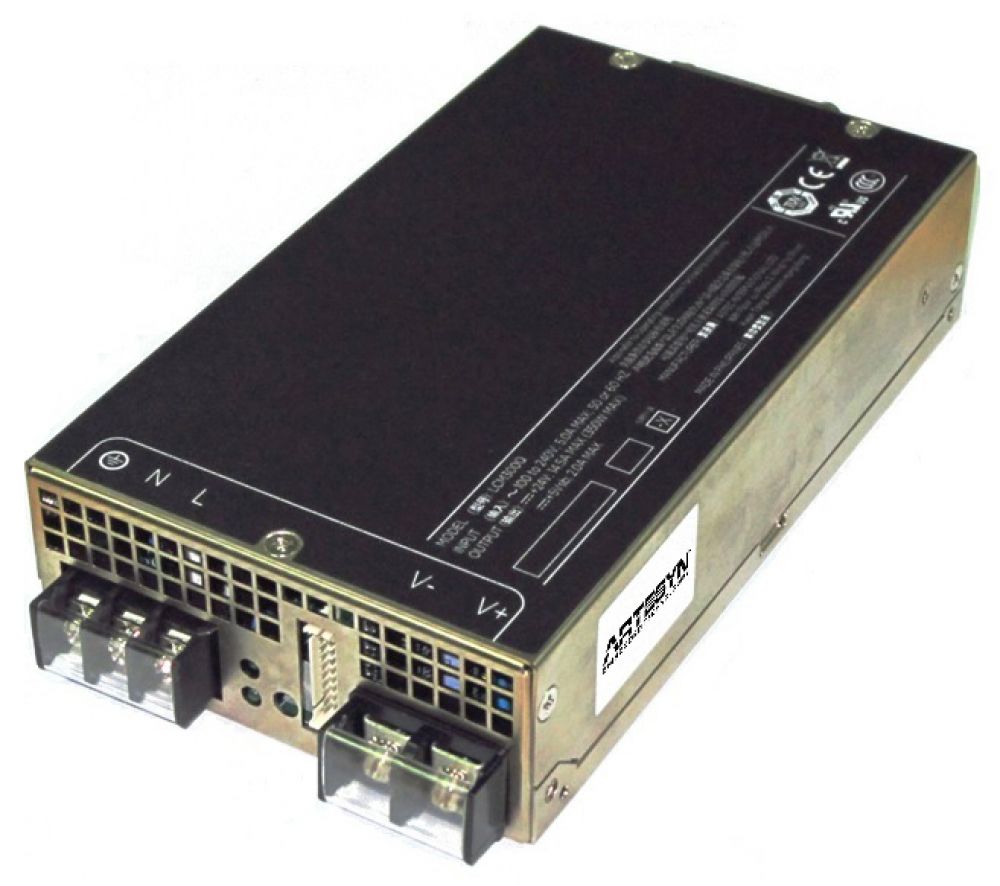

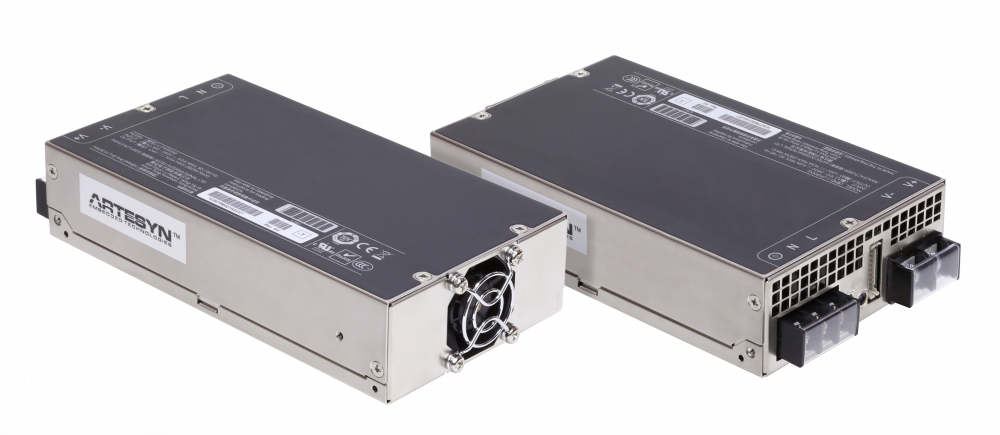

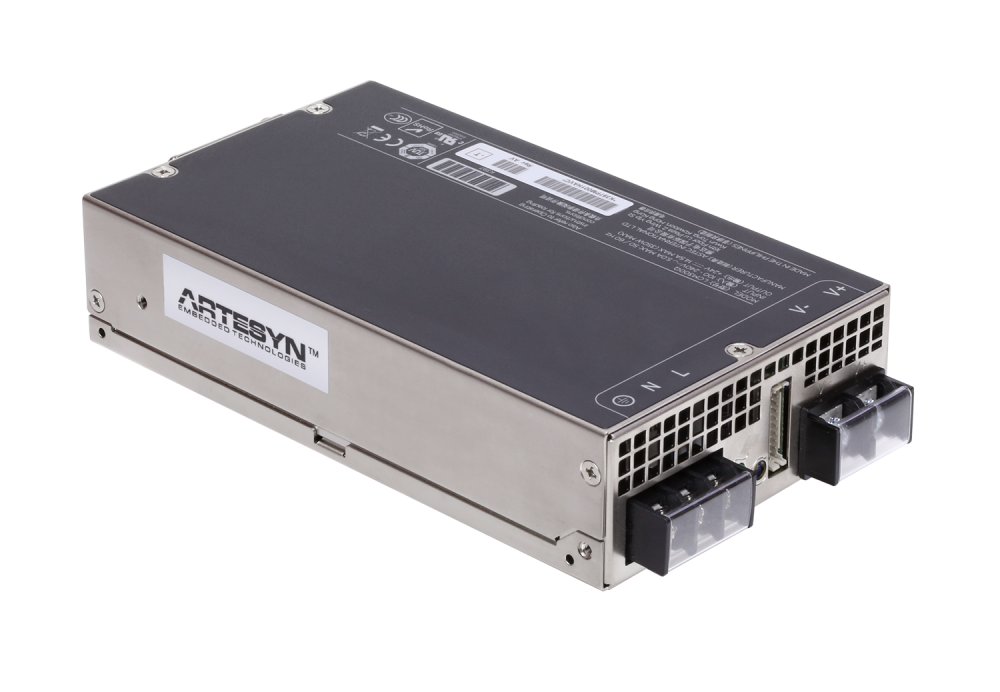

The LCM300 series of enclosed front-end AC-DC power supplies comprises five single-output models, providing standard voltages of 12 V, 15 V, 23 V, 36 V, or 48 V, plus a 5 V standby output. The series is medical-safety approved and accepts a universal input of 90 to 264 VAC with a full-load efficiency of 91%. These PMBus®-compliant digitally-controlled power supplies offer a high-level modification flexibility for application-specific functions such as special battery charging and management, peak load handling, voltage control, and fan speed profiles. Compactly housed in a 4 x 7 inches enclosure less than 1U high, the power supplies incorporate built-in smart fans for cooling and deliver up to 310 W of output power. The 24 V and 36 V models can deliver up to 350 W at operating temperatures up to 45˚C.
Features
- +/ 20% adjustment range
- 350W peak power
- 40 to +70 Dec C operation (with derating above 50 C)
- High Efficiency 91%
- Option 5V standby
- Input Range 85-264 VAC 127-374 VDC
- Frequency 47-63 Hz
- Inrush Current <= 20 A Peak
- Power Factor 0.98 TYP
- Hold-up Time 20 mSec
- Efficiency >91% TYP
- Leakage <0.3 mA @ 264 VAC
- Set Point +/- 0.5%
- Total Regulation +/-2.0%
- Noise (P-P) 0.01
- Max Units in Parallel 10
- Current Share Forced to within 10%
- Over Current Protection 105% to 120% of rated output
- Over Voltage Protection 125% to 145% of rated output
- Fan Noise <45dBA, 80% load 40C Fan Off with Inhibit
Benefits
- Conformal Coat Option
- DSP Controlled
- EMI Level B
- Industrial/Medical Safety
- Integrated ORing FET
- Low Cost
- Margin Programming
- Optional Conformal Coat
- Optional Constant Current
- PMBus Compliant
- Variable Speed "Smart Fan"
Specifications
| Output Power (W): | 300 |
|---|---|
| Length (Inches): | 7 |
| Width (Inches): | 4 |
| Height (Inches): | 1.61 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 25 |
| Output Voltage Range (V): | 9.6V to 57.6V |
