SL Power™
SLB1000 Series
Active
1000 W Enclosed PSU for Industrial and Medical

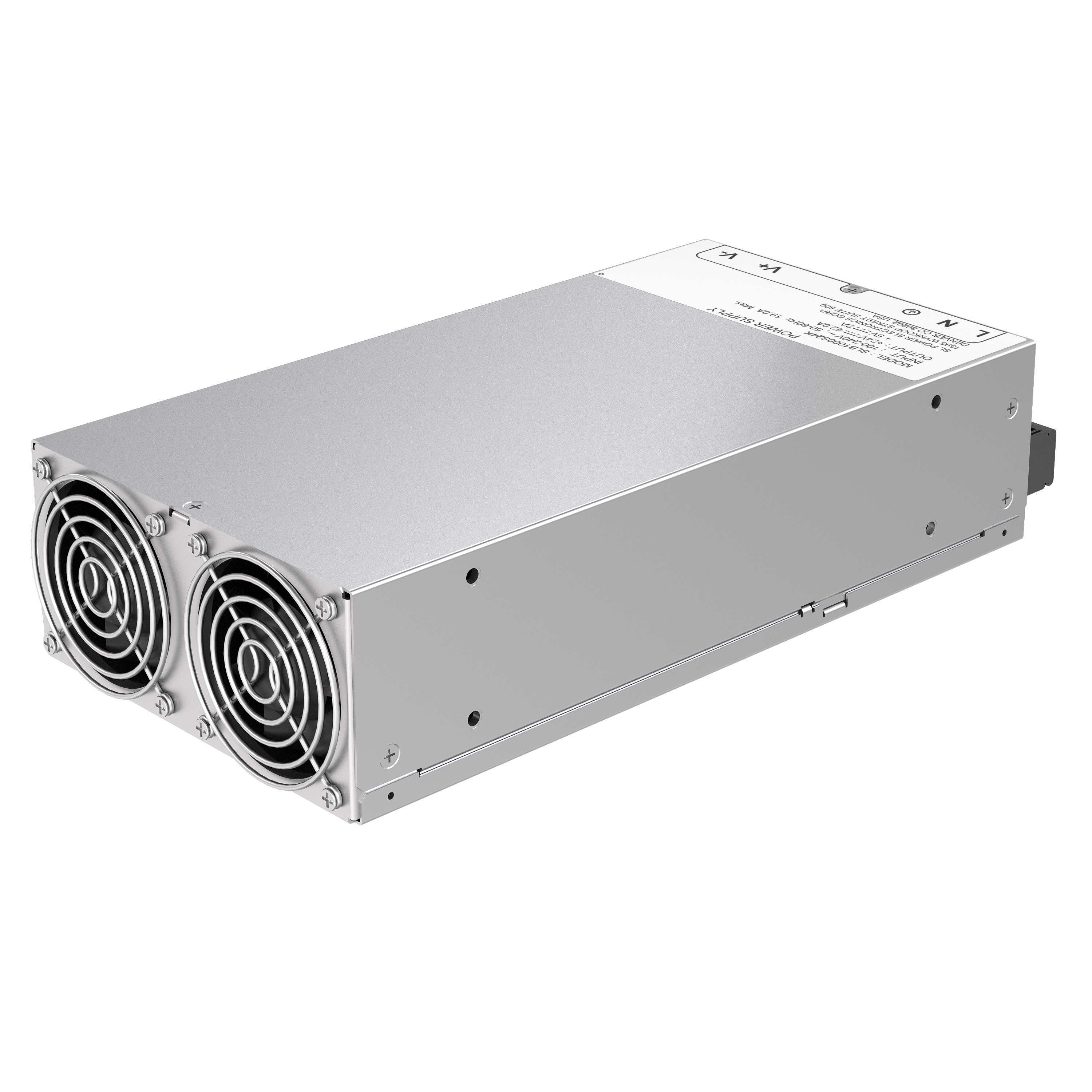

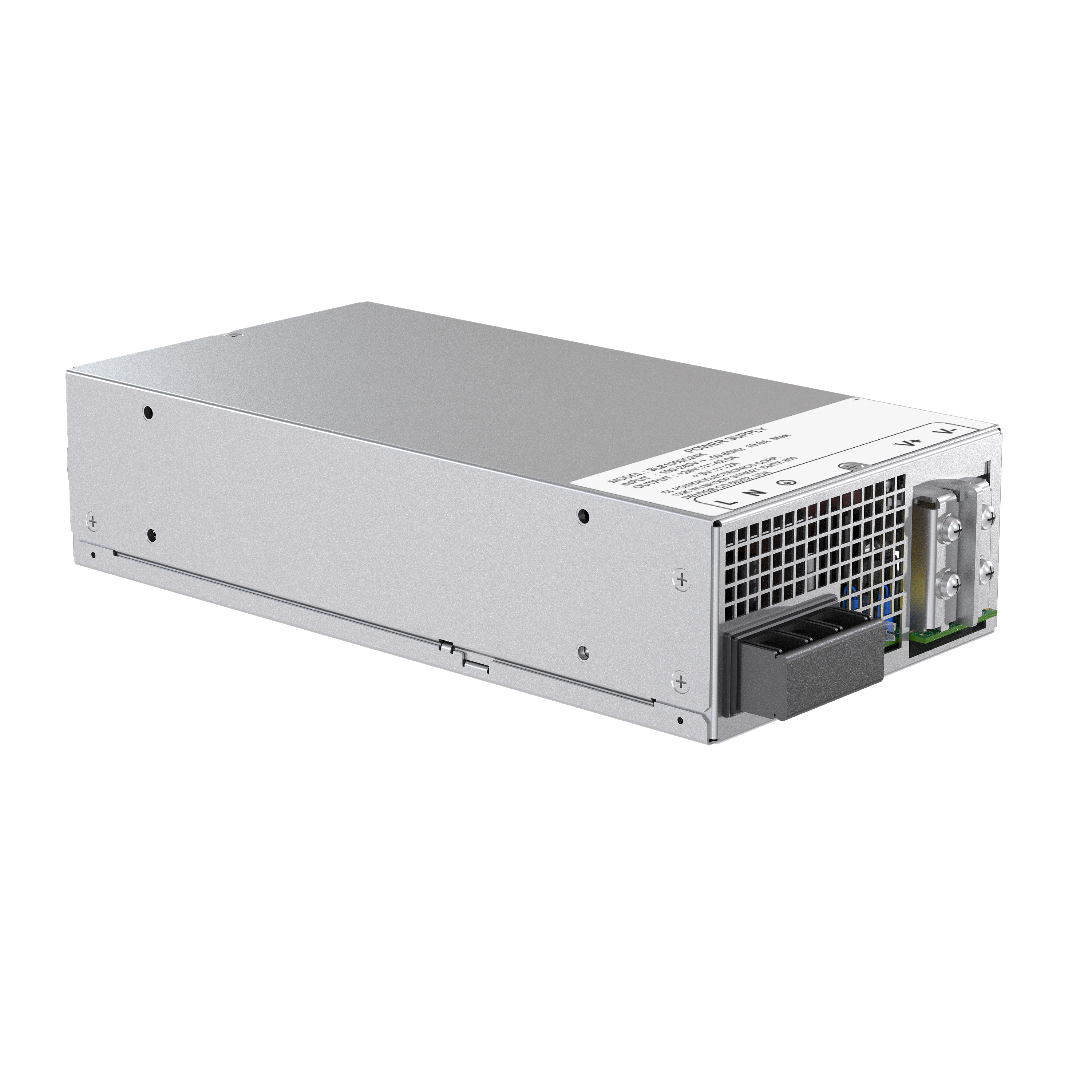

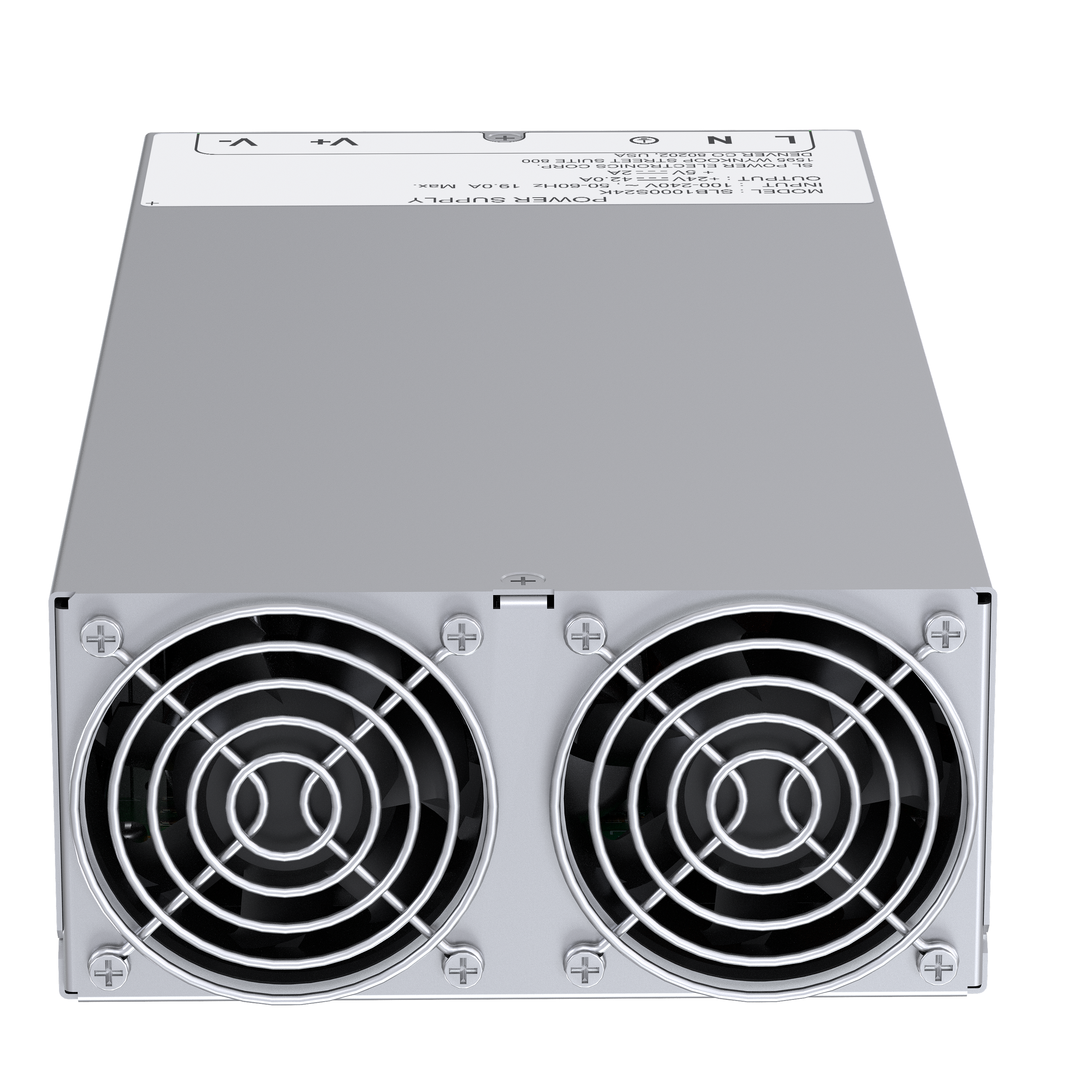

Advanced Energy’s SL Power SLB1000 AC-DC enclosed PSU provides a low-cost solution for industrial and medical applications with single output high power requirements. The enclosed form factor (2.4" x 5.2" x 10.55") utilizes smart fans for self-contained thermal management at very low acoustic noise levels. Voltage output for the series ranges from 12 to 48 V (nominal) at a continuous output power of 1000 W.
Features
• 1000 W output power
• 2.4” x 5.2” x 10.55”
• -20 °C to 70 °C with derating
• High efficiency: 88% typical
• Variable speed “Smart Fans”
• ± 5% Vout adjustment range
• 5 V DC @ 2 A standby output
• DC OK signal, inhibit function
• 2.4” x 5.2” x 10.55”
• -20 °C to 70 °C with derating
• High efficiency: 88% typical
• Variable speed “Smart Fans”
• ± 5% Vout adjustment range
• 5 V DC @ 2 A standby output
• DC OK signal, inhibit function
Benefits
• Low acoustic noise
• 7.7 W per cubic inch
• Industrial/medical (BF) safety
• EMI: CE Class B, RE Class A
• EN61000 Immunity, Heavy Industrial
• UL/cUL Recognized ITE: UL/CSA62368-1
• UL/cUL Recognized Medical: ANSI/AAMI ES60601-1 (BF)
• CE LVD (EN62368-1 + ROHS)
• EMC according to the medical standard IEC 60601-1-2 4th Edition
• 7.7 W per cubic inch
• Industrial/medical (BF) safety
• EMI: CE Class B, RE Class A
• EN61000 Immunity, Heavy Industrial
• UL/cUL Recognized ITE: UL/CSA62368-1
• UL/cUL Recognized Medical: ANSI/AAMI ES60601-1 (BF)
• CE LVD (EN62368-1 + ROHS)
• EMC according to the medical standard IEC 60601-1-2 4th Edition
Specifications
| Output Power (W): | 1000 |
|---|---|
| Input Voltage (V): | 100 to 240 VAC |
| Operating Temperature (°C): | 0 to 70 |
| Length (Inches): | 10 |
| Width (Inches): | 5.2 |
| Height (Inches): | 2.4 |
| Mounting Type: | Enclosed |
| Minimum Output Current (A): | 16.6 |
Featured Resources
SLB1000 Datasheet
SLB1000 provides a low cost solution to industrial and medical single output high power requirements.
View Resource
Providing Innovation with SLB1000 for System Upgrades Case Study
For the life sciences sector, finding a right‑sized, value‑engineered power supply that delivers consistent performance for both legacy and new production, as well as field services, is critical. The SLB1000 series provides the ideal solution to this challenge.
View Resource
Technical Documentation
Product Information Documents
Updated
Safety & Compliance Certificates
New
Insights & Studies
New
Technical Videos
SLB1000 - 1000 W Enclosed Power Supply for Industrial and Medical Applications
Mar 24, 2026
Advanced Energy’s SL Power SLB1000 AC-DC enclosed PSU provides a low-cost solution for industrial and medical applications with single output high power requirements. The 2.4" x 5.2" x 10.55" enclosed form factor utilizes smart fans for self-contained thermal management at very low acoustic noise levels. Voltage output for the series ranges from 12 V to 48 V (nominal) at a continuous output power of 1000 W.
Close Popup
Related Products
Compare
| Model | SLB1000 | NGB1200 | CS1000 | Xsolo | LCM1000 |
|---|---|---|---|---|---|
| Output Power (W) | 1000 | 1200 | 1000 | 1008 | 1000 |
| Mounting Type | Enclosed | Embedded PSU | Base/Side Mounting, DIN-Rail Mounting | Base/Side Mounting, DIN-Rail Mounting | Embedded PSU |
| Minimum Output Current (A) | 16.6 | 25 | 1.96 | 21 | 0 |
| Maximum Output Current (A) | 84 | 100 | 4.7 | 42 | 83.3 |
| Output Voltage Range (V) | 12V to 48V | 12V to 48V | 22 to 56 | 24 to 48 | 10.8V to 52.8V |
