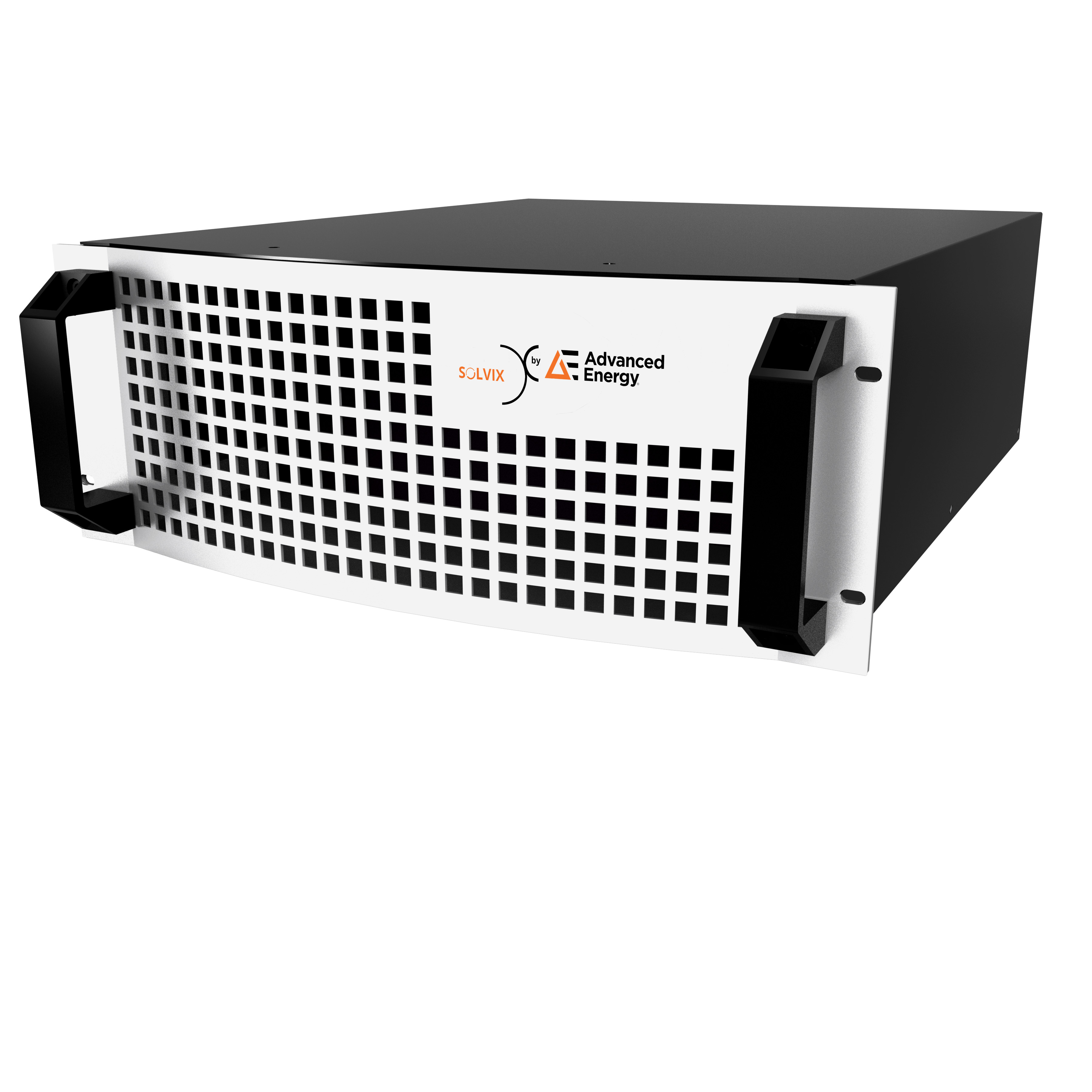

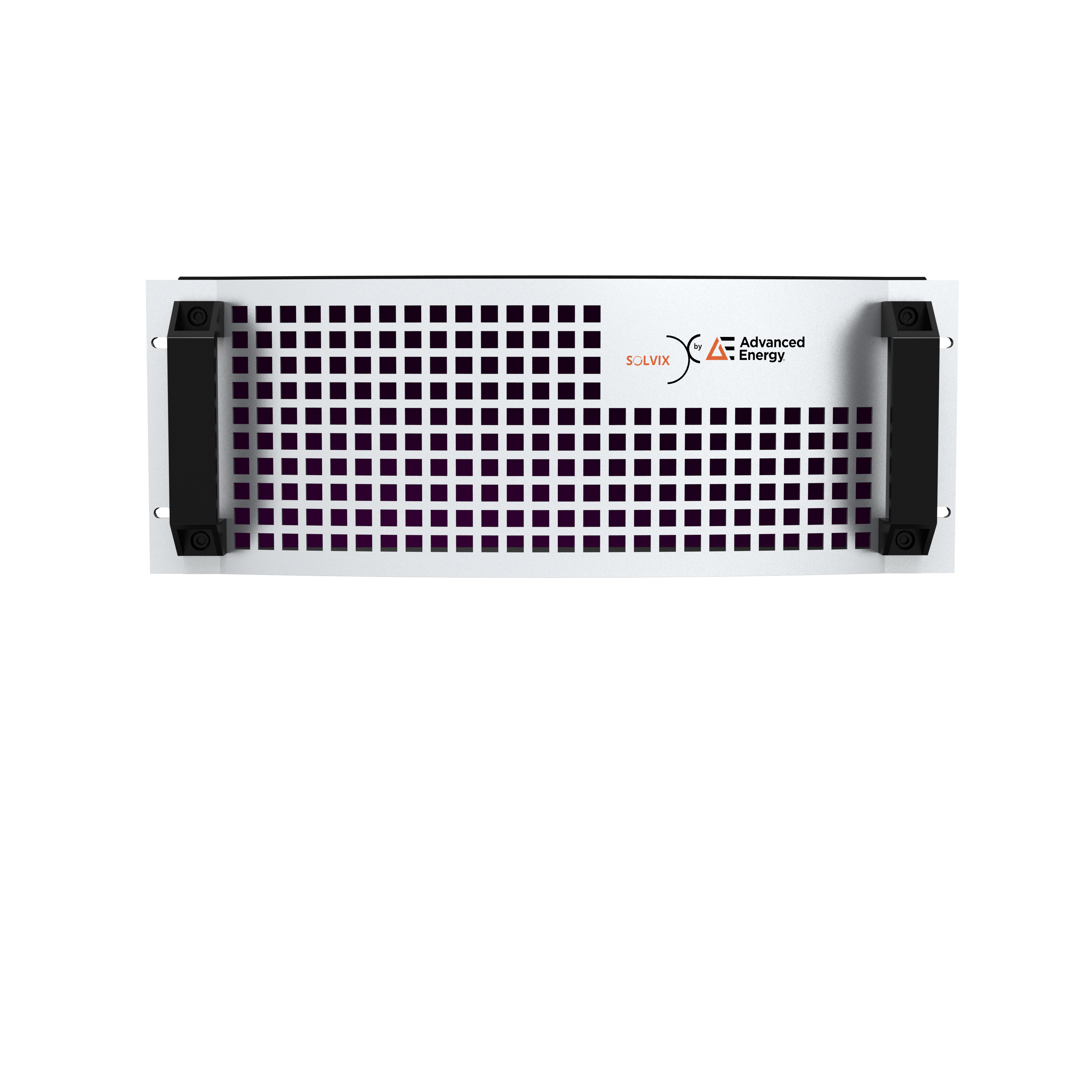

Solvix® DC and Pulsed Power Supply
Active
3 to 30 kW DC and Pulsed-DC Power Supplies
Solvix DC and pulsed-DC power supplies for metallic and reactive sputtering provide precise control and proven reliability—backed by AE’s worldwide support network. Offering a wide range of power and frequency levels, pulsing, and multiple communications options, they offer a rugged and cost-effective solution for your unique process.
Features
• Best-in-class arc handling
• DC and pulsed-DC units
• Current, power, and voltage regulation modes
• Flexible architecture
• Air cooling
• Multiple units configurable for high-power requirements
• High peak-to-peak voltages (high-frequency models)
• Patented tapless wide output load impedance range (medium-frequency models)
• DC and pulsed-DC units
• Current, power, and voltage regulation modes
• Flexible architecture
• Air cooling
• Multiple units configurable for high-power requirements
• High peak-to-peak voltages (high-frequency models)
• Patented tapless wide output load impedance range (medium-frequency models)
Benefits
• Proven reliability, accuracy, and repeatability
• Worldwide support network
• Reduced substrate damage and process contamination
• Adaptability to a wide range of process requirements
• High throughput
• Worldwide support network
• Reduced substrate damage and process contamination
• Adaptability to a wide range of process requirements
• High throughput
Specifications
| Cooling: | Air |
|---|---|
| Output Frequency (MHz, kHz): | Pulsing and non-pulsing options available. Please refer to Datasheet. |
| Input Voltage (V): | 400, 480 VAC |
| Power Level (kW): | Multiple options available. Please refer to Datasheet. |
| Rack Width: | Full Rack |
| Height (Inches): | 4U, 6U |
| Communications Interface: | Analog, Profibus, EtherCat, RS-485 |
| Process Applications: | Hard coating |
