Thyro-A+ Power Controller

Active

Precise, digital SCR power controller that supports currents up to 650 A and voltages up to 500 V

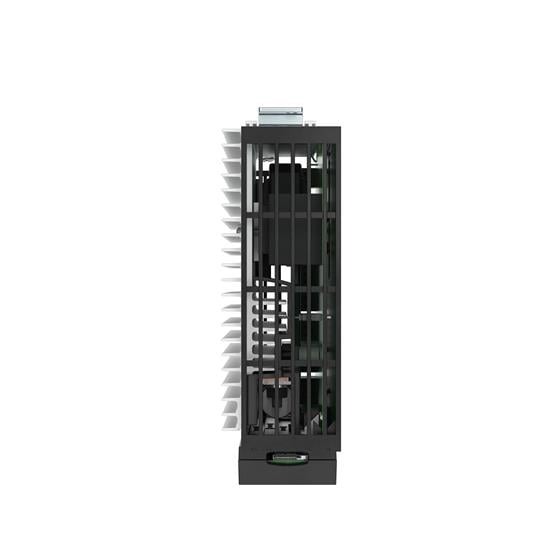

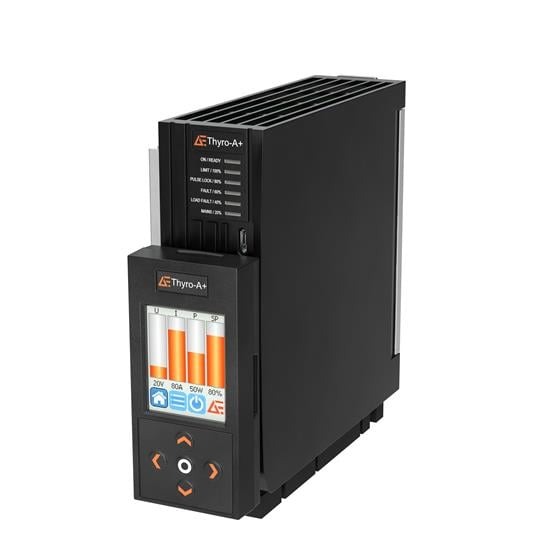

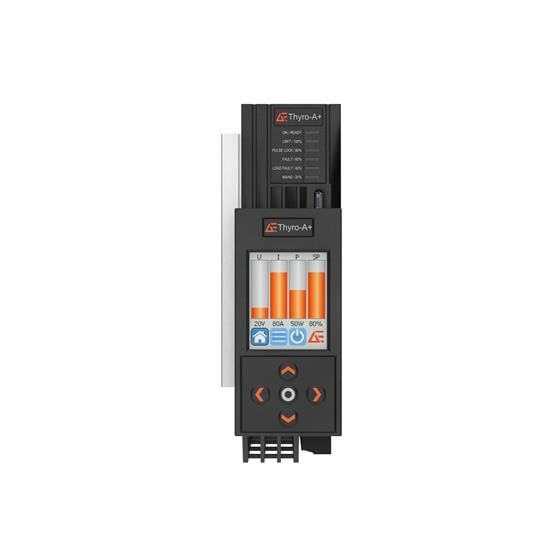

The Thyro-A+ is Advanced Energy’s latest addition to its proven Thyro-Family of digital SCR power controller. The new Thyro-A+ has a performance range with rated currents from 16 A up to 650 A and rated voltages from 230 V up to 500 V. The optional Thyro-A+ display enables an intuitive operation of the SCR power controller. With an optional SD card, data and parameter settings can easily be loaded and saved to the power controller. Easy handling is supported by the EasyStart feature for easy Thyro-A+ commissioning.

Display or Thyro-Tool Pro software to easily visualize, commission or set parameters
Increase performance control accuracy to maximize end process repeatability
Easy fieldbus integration with optional BasicBus Module and available bus protocols

Features

Save space and simplify installation with a compact unit footprint and a DIN-rail mountable design (up to 60 A system rating)
Precisely regulate power, including load management, for optimal control and energy consumption
Easily integrate with existing control systems; customize faults, alarms, status, limits, and set points
Increase process efficiency; optimize load control with five control types and three operating modes

Benefits

Scalable PLC/PAC integration for closed-loop control; optional system interface connects up to 8 power controllers to BasicBus Module (Profibus DPV1, CANopen, Profinet, Modbus TCP/IP, EtherNet/IP, EtherCAT)
Securely separate control and power units and optimize load control; use up to five control methods and three operating modes

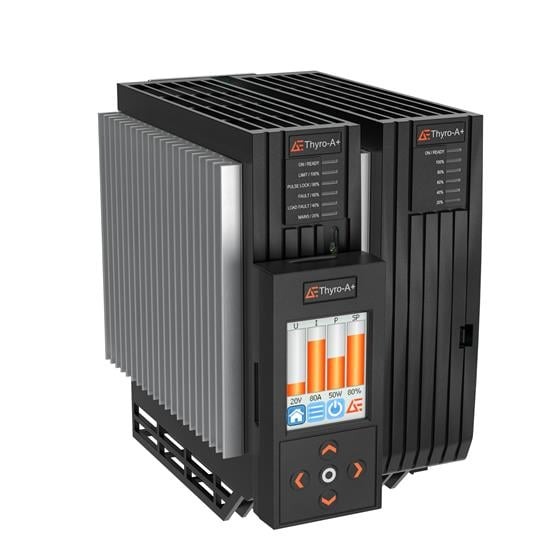

1-, 2-, or 3-phase versions (2-phase version for 3-phase load without deploying neutral conductor)
Securely separate control and power units and optimize load control; use up to five control methods and three operating modes
Mains-load optimization using optional dASM with optional BasicBus Module; support digital and dynamic mains-load optimization (up to eight Thyro-A+ SCR power controllers)
Seamless integration to Rockwell Automation® Studio5000® automation software via add-on profiles (AOPs): simplify setup and commissioning using predefined tags
1-, 2-, or 3-phase versions (2-phase version for 3-phase load without deploying neutral conductor)

Specifications

Frequency (Hz):	47 to 63
Fuses:	Integrated semiconductor fuse
Operating Mode:	TAKT, VAR, QTM, VT Mode and with optional BasicBusModule
Rated Currents (A):	Up to 650 A
Rated Voltages (V):	Up to 500 V
Safety Certifications:	CE, UL 508 (8 – 350A), Canadian C22.2 No. 14
Communications Interface:	Display for Thyro-A+ configuration with optional SD memory card and process data recorder BasicBusModule with Anybus Digital Interface Card Micro-USB connector for Thyro-Tool Pro PC software connection

Technical Documentation

Title	Type
Thyro-A+ Operating Manual English (3 MB)
Thyro-Familie Zubehor Broschüre (2 MB)	Brochure
Thyro-A+ Data Sheet (481 KB)	Data Sheet
Thyro-A+ Datenblatt (396 KB)	Data Sheet
Precision Heat Qualifier (2 MB)	Infographic

Software

Accessories

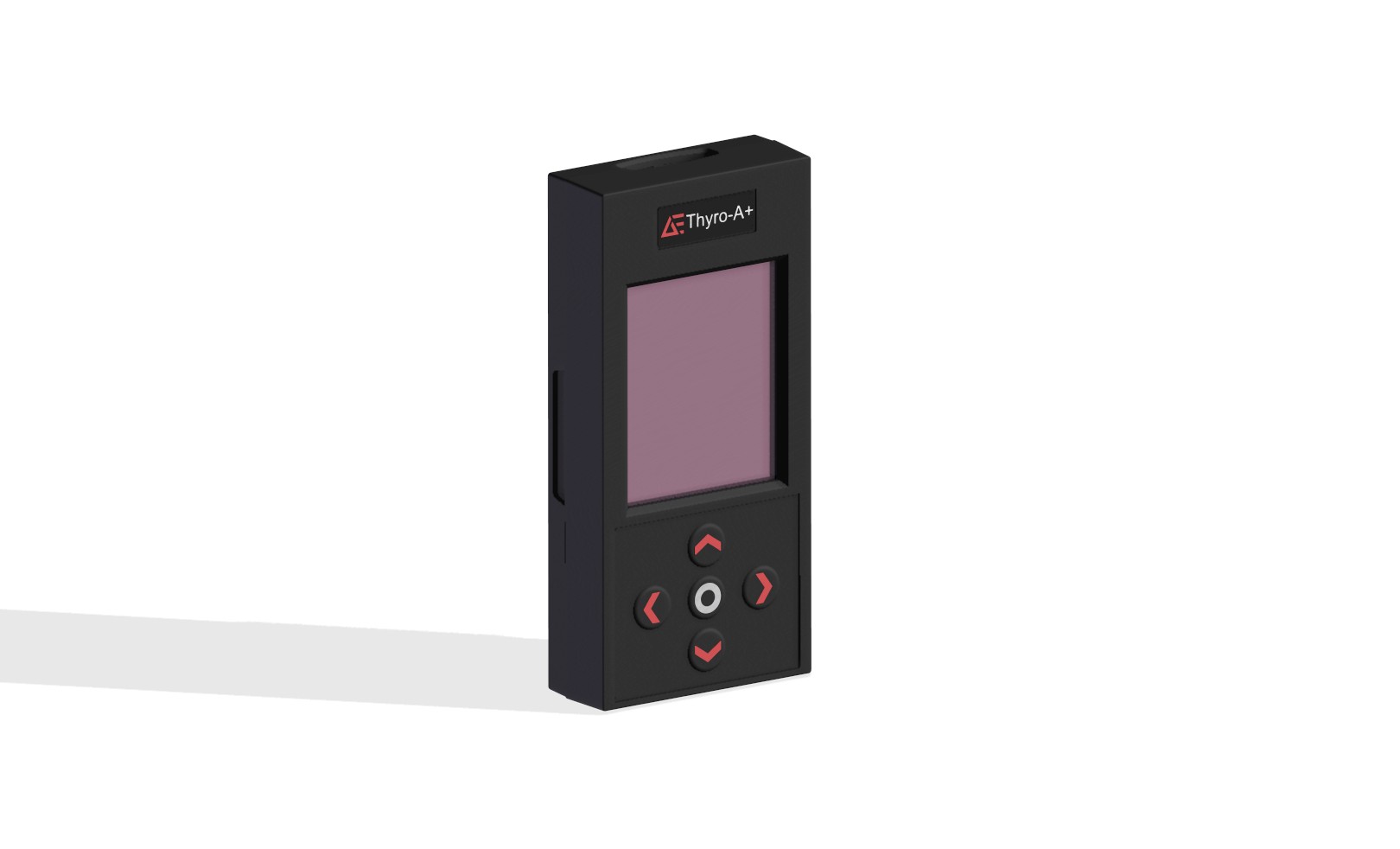

Thyro-A+ Display

Display on board information access

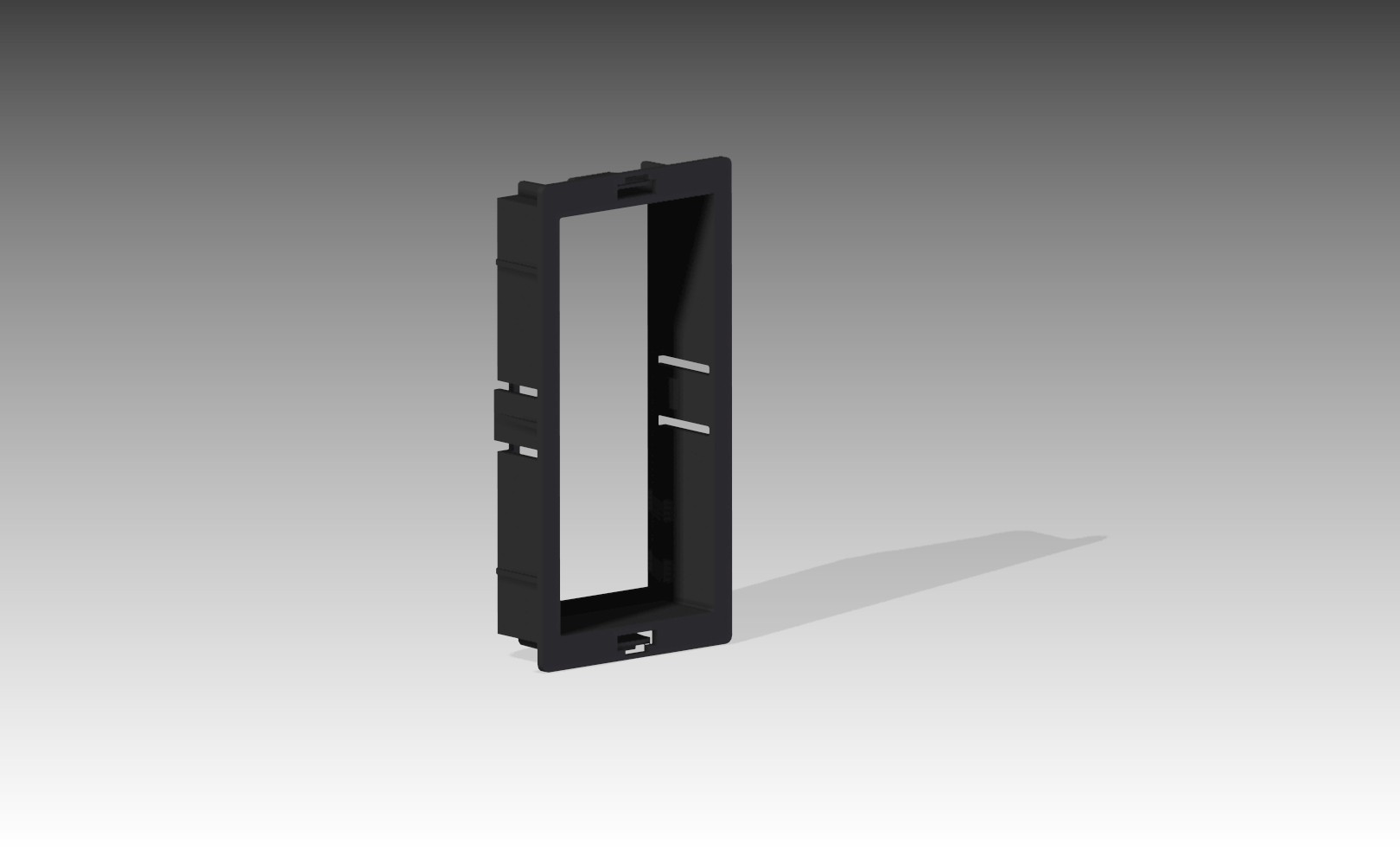

Thyro-A+ Frame Kit

Frame Kit for display front door assembly

Thyro Basic Bus Module

Bus module for connection of up to 8 power controllers, optional dASM

Thyro Anybus Module - EtherNet/IP

Communication Module Adds EtherNet/IP Interface

Thyro Anybus Module - EtherCAT

Communication Module Adds Another Interface

Thyro Anybus Module - Profibus

Communication Module Adds the Profibus Interface

Thyro Anybus Module - Profinet

Communication Module Adds Profinet Interface

Thyro Anybus Module - Modbus

Communication Module Adds Modbus TCP Interface

Thyro GSD Software

Download Thyro GSD files

Thyro Tool Pro

Thyro Tool software is custom software made for Thyro SCR Power Controllers

Compare

Model	Thyro-A+ Power Controller	Thyro-S Power Controller	Thyro-A Power Controller	Thyro-PX Power Controller
Frequency (Hz)	47 to 63	47 to 63	47 to 63	47 to 63
Fuses	Integrated semiconductor fuse	Integrated semiconductor fuse	Integrated semiconductor fuse	Integrated semiconductor fuse
Operating Mode	TAKT, VAR, QTM, VT Mode and with optional BasicBusModule	TAKT and with optional BasicBusModule	TAKT, VAR, QTM, and with optional BasicBusModule	TAKT, VAR, VSC, Soft start, soft down
Rated Currents (A)	Up to 650 A	Up to 350 A	Up to 1500 A	Up to 5000 A
Rated Voltages (V)	Up to 500 V	Up to 500 V	Up to 500 V	Up to 690 V
Communications Interface	Display for Thyro-A+ configuration with optional SD memory card and process data recorder BasicBusModule with Anybus Digital Interface Card Micro-USB connector for Thyro-Tool Pro PC software connection	Micro-USB connector for Thyro-Tool Pro PC software connection BasicBusModule with Anybus Digital Interface Card	Micro-USB connector for Thyro-Tool Pro PC software connection BasicBusModule with Anybus Digital Interface Card	USB interface for Thyro-Tool Software RS232 interface for Thyro-Touch Display
