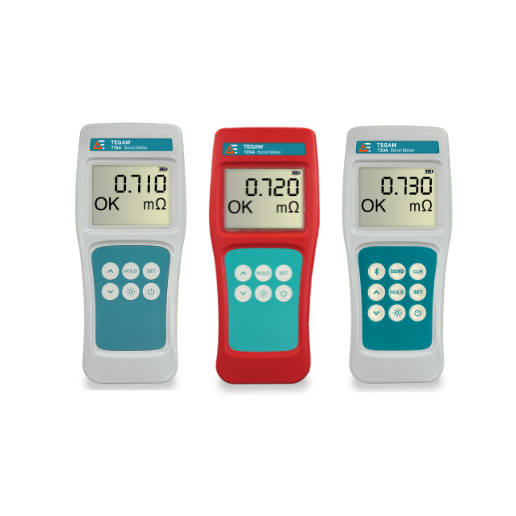

Handheld Bond Meters
Superior Accuracy, 100-Hour Battery Life, and a 3-Year Warranty
Features
- Bond Meter Accuracy: ±(0.2% Reading + 0.02 Range), 18 to 28°C
- Temperature Range : -10 to 55 °C / 14 to 131°F
- Reading Rate: 3 Readings per second
- 100 Hour Battery Life
- Connector Type : M12
- Battery: 3AA (IEC LR6, ANSI 15) Alkaline
- 4-digit Auto-Ranging with Backlight and Function Annunciators
- Bond Meter & Milli-Ohmmeter Features Creative Ergonomic Design
- Three-Year Parts & Workmanship Warranty
- Calibration: Standard Calibration, 17025 Compliant Calibration.
- Included Accessories: 3AA Batteries, Quick Start Guide, Certificate of Traceability
- Optional Accessories: Foam-Filled Hard Carry Case, SureGrip Cover, Tilt Stand / Magnetic / Hanger
- CE, Complies with 47 CFR Part 15 of the FCC rules, Class B
- Assembled in the USA
Benefits
- Superior accuracy for use in the most demanding measurement applications
- Accuracy remains consistent over the entire operating range
- Smallest and lightest handheld bond meter make it easy to use in tight or hard-to-reach situations
- 100-hour battery life and convenient replacement options means these maters are always ready
- Backlit display allows measurements to be read in poorly lit locations
- Supported by a wide range of test probe and tip styles
Specifications
| Accuracy: | ±(0.2% rdg + 0.02% rng) |
|---|---|
| Basic Accuracy: | ±0.2% |
| Connector Type: | M12 |
| Max. Resolution: | 1 µΩ |
| Maximum Test Current: | 100 mA |
| Measurement Range: | 1 µΩ to 100 Ω |
| Operating Temperature (°C): | -10 to 55 ⁰C |
| Reading Rate: | 3/sec |
Accessories Stock Check
Make your 710A Bond Meter & Milli-Ohmmeter even more versatile with this combination tilt stand, hanging magnet, and carrying strap (700-910) for work, display and storage options. The tilt stand locks securely to the back of the 710A when not in use. Hang the 710A anywhere you can stick a magnet. Securely and comfortably hold the 710A with the carrying strap that can also function as a belt loop.
TEGAM’s SureGrip Cover is designed for a more secure grip to prevent instrument damage from dropping, and possesses elastic properties from non-silicone elastomer which also protect airframes and vehicles from tooling damage due to accidental impacts.
The SureGrip Cover fits our 700 Series non-intrinsically safe Bond Meters and 900 Series Digital Thermometers.& Calibrators
Technical Specifications
Made of non-silicone elastomer for use around composites
SureGrip Cover fits 700 Series Bond Meters and 900 Series Thermometers
Hi-visibility orange to reduce foreign object damage
Lanyard attachment points
Does not interfere with tilt stand/magnet/hanger accessory (Sold separately, Model 700-910)
Foam-filled hard carry case is made with a spark-proof resin. This case is an optional accessory for the TEGAM 720A Intrinsically Safe Bond Meter and IS probes. (Note: instrument and probes shown in picture are not included).
The case has a place for your handheld instrument, probes, and additional batteries.
TEGAM’s SureGrip Cover is designed for a more secure grip to prevent instrument damage from dropping, and possesses elastic properties from non-silicone elastomer which also protect airframes and vehicles from tooling damage due to accidental impacts.
The SureGrip Cover fits our 700 Series Bond Meters and 900 Series Digital Thermometers.& Calibrators
