720A-BK-KIT Handheld Bond Meter & BK Probe Kit
Bond Meter Kit includes 720A, BKP-M2S (2), BKP-B(2), 700-911 Carry Case
720A Intrinsically Safe Bond Meter, Test Probes & Accessories in One Convenient Package
TRUST is an essential feature in any measurement tool and TEGAM’s new 700 Series bond meters and milli-ohmmeters are instruments you can rely on every day with confidence. These new models are designed with the clearest and most informative displays for mistake-free measurements. They quickly produce accurate readings to reduce the time spent measuring.
TEGAM Bond Meters for Your Industry
- Aerospace: Verify mechanical and electrical bonds for safety, conductivity, mechanical integrity, RF shielding and lightning protection. TEGAM is the largest provider of bond meters/milli-ohmmeters to the US Armed Forces.
- Alternative Energy: Solar arrays and wind turbines are prone to lightning strikes. The integrity of their grounds must be maintained and restored after an event. A small increase in the resistance translates into a dangerous voltage when thousands of amps are flowing.
- Automotive: Battery Electric Vehicles contain many high current interconnections and over current protection. Verifying the low resistance is essential to preventing fires and poor performance. Conventional ICE engines also rely on many electric systems that are verified with TEGAM instruments.
- Electronics: Validate circuit board elements and traces with low resistance measurements that can detect thin or undersized conductors. Check connections and current limiting resistors in situ.
- Electrical Systems: The 720A milli-ohmmeter is sensitive enough to detect loose bus bars, damaged shunts, failing fuses and poor cable terminations.
4-WIRE PROBES are often more important than the instrument. No one has a wider range of configurations to meet and adapt to your needs. From tight spacing to piercing paint, we have a tip configuration to make your job easier. The dual connector system permits a Kelvin Clip on one lead for secure ground connection while the ergonomic tri-shape probe on the second lead can be used for accessing multiple points with one hand. Designed for one-handed operation, these tools are comfortable to carry and use for extended periods of time.
Like all TEGAM products, the 700 Series bond meters and milli-ohmmeters are designed, assembled and tested in the United States. TEGAM backs this durable instrument with a 3-year warranty to assure you that your investment is sound.
Features
- Bond Meter Accuracy: ±(0.2% Reading + 0.02 Range), 18 to 28°C
- Temperature Range : -10 to 55 °C / 14 to 131°F
- Reading Rate: 3 Readings per second
- Connector Type : M12
- Battery: 3AA
- 100 Hour Battery Life
- 4-digit Auto-Ranging with Backlight and Function Annunciators
- Three-Year Parts & Workmanship Warranty

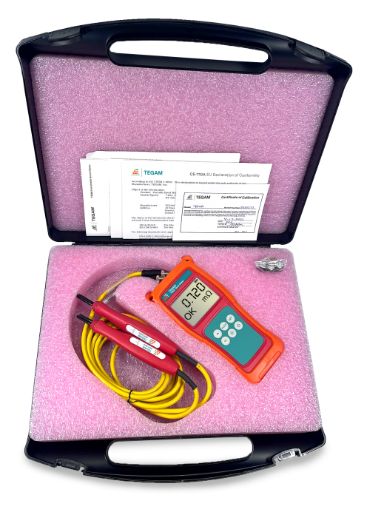

- Kit Includes:
- 720A Intrinsically Safe Bond Meter
- BKP-M2S IS Probe (2)
- BKP-B "Spear" Tips; 4-pack (2)

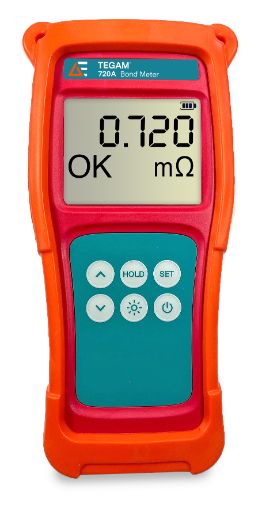

- 720-915 SureGrip Protective Cover

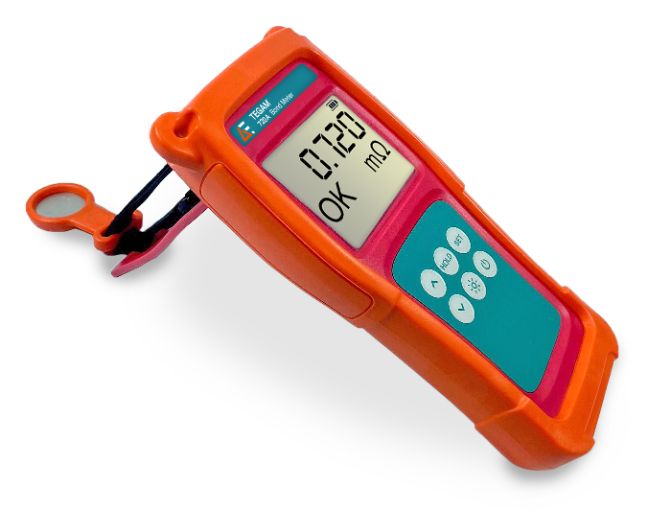

- 720-812 Tilt-Stand / Magnetic Holder
- 3AA Batteries, Quick Start Guide, Statement of Traceability

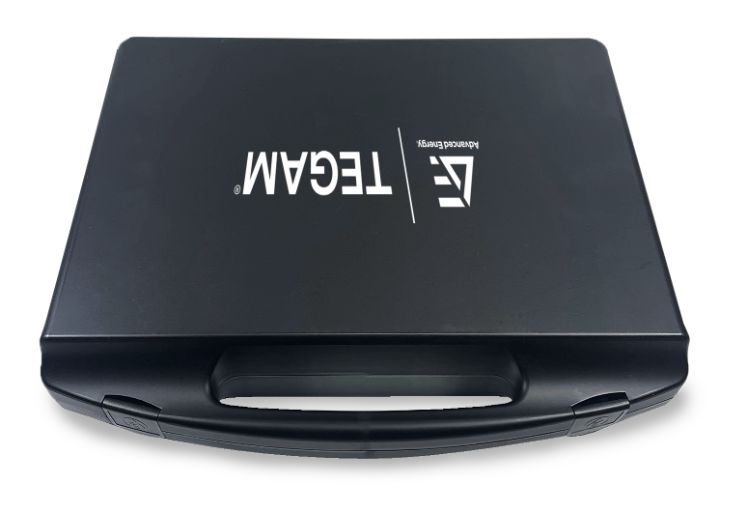

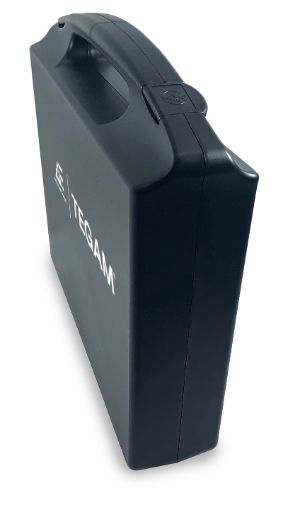

- 720-911 Foam-filled Hardshell Plastic Storage/Carry Case
- CE, Complies with 47 CFR Part 15 of the FCC rules, Class B
- Assembled in the USA
- Handheld Bond Meter for Hazardous Locations Only as to Intrinsic Safety
- Ex ia IIA T4 Ga Class I, Division 1, Group D, T4 Class I, Zone 0 AEx ia IIA T4 Ga Zone 0 Ex ia IIA T4 Ga
- UL 21 ATEX 2549 IECEx UL 21.0038 -10 °C ≤ Ta ≤ +55 °C
Benefits
- Designed for continuous use in the presence of flammable gases, vapors, and mists
- Kit includes bond meter and our most popular probes and accessories for convenient ordering, use, transport, and storage
- Superior accuracy for use in the most demanding measurement applications
Accuracy remains consistent over the entire operating range
Smallest and lightest handheld bond meter make it easy to use in tight or hard-to-reach situations
100-hour battery life and convenient replacement options means these maters are always ready
Backlit display allows measurements to be read in poorly lit location
Specifications
| Accuracy: | ±(0.2% rdg + 0.02% rng) |
|---|---|
| Connector Type: | M12 |
| Datalogging: | No |
| Intrinsically Safe: | Yes |
| Max. Resolution: | 1 µΩ |
| Maximum Test Current: | 100 mA |
| Measurement Range: | 1 µΩ to 100 Ω |
| Operating Temperature (°C): | -10 to 55 ⁰C |
