tegam ®

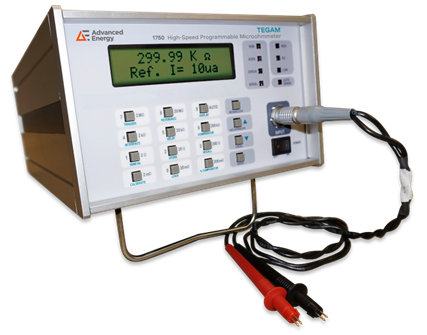

1750 Series
Active
High-Speed Micro-ohmmeter
Recognized as the industry’s fastest precision micro-ohmmeter, Advanced Energy's 1750 Series has become the number 1 choice in manufacturing environments. Fuse makers use the 1750 for nondestructive tests where the unmatched precision increases the process yield to the point where the 1750 pays for itself in weeks. The vast majority of resistors less than 1 Ohm are tested and sorted to accuracy better than 0.1% by the 1750.
Features
- Micro-ohmmeter Basic Accuracy: 0.02%
- Measurement Speed: 10 ms
- Range : 2 mΩ to 20 MΩ
- Resolution : 100 nΩ
- Programmable reference currents
- GPIB, RS-232 and PLC compatibility
- Kelvin Klips, Spade Lugs or Kelvin Probes available
- Easy to operate and integrate
- 3-year Warranty
- Assembled in USA
Benefits
- Super-fast measurements allow maximum optimization of production lines
- Instrument can be used to control high-speed laser trimmers and material handlers
- High-accuracy measurements aloe for precise component sorting, verifying and labeling
- Automatic compensation for thermal and electromagnetic noise maintain high accuracy in factory environments
- Flexible programming options to easily adapt to many different applications
- Multiple communication interface options to readily connect to maximize programming efficiency
- Excellent for dry circuit testing of switches, relays, and connector contacts
- Easily operated via front panel or remote computer
Specifications
| Basic Accuracy: | ±0.02% |
|---|---|
| Connector Type: | Banana, Lemo |
| Max. Resolution: | 100 nΩ |
| Maximum Test Current: | 1.0 A |
| Measurement Range: | 10 µΩ to 20 MΩ |
| Operating Temperature (°C): | 0 to 50 ⁰C |
