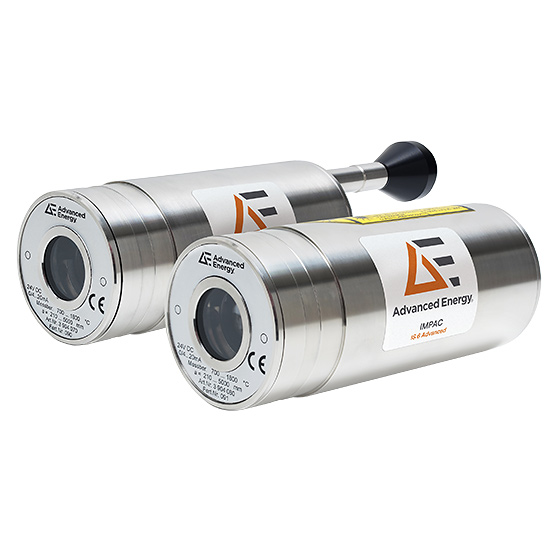

Impac IGA 6/23 Series Pyrometers
Highly accurate digital pyrometer with focusable optics and integrated LED display. Temperature measurements, e.g. on metals, in ranges between 50 and 1800 °C.
The digital Impac IGA 6/23 Advanced are fast pyrometers for non-contact temperature measurement on metals, ceramics, or graphite in temperature ranges between 50 and 1800 °C. For optimal match to the application, the instruments are equipped with high-end optics with manual focus. The series feature integrated four-digit LED displays that indicate current measuring temperatures or set measuring distances. The pyrometers are available with laser-targeting light, viewfinder, or digital TV camera module. The instruments can be connected to a PC through an RS485 to USB connection, enabling you to make parameter adjustments using the InfraWin software. The software can be used for temperature indication, data logging, and further analyzing of complete temperature processes.
Features
- Wide temperature ranges for flexible process adaptation
- Highest accuracy and repeatability in its class
- Fully digital core for sub-ranging and adopted analog output
- Response time of 0.5 ms for very fast and highly dynamic processes
- High-end optics with manual focus capability
- 4 digit LED display
- Robust, stainless steel sensor for harsh environments (IP65/NEMA4)
Benefits
- Use in harsh environments thanks to a robust, stainless steel sensor (IP65/NEMA4)
- Easily measure fast and dynamic processes
- Connect to your PC via an RS485 to USB connection
- Select a laser targeting light, viewfinder, or digital TV camera module
Specifications
| Operational temperature range (°C): | 50 and 1800 °C (3 ranges in between) |
|---|---|
| Spectral Range (µm): | 2 to 2.6 |
| Measurement Uncertainty (°C): | From 0.3% oR + 2 °C |
| Optics (mm): | Focusable optics |
| FOV (minimum spot size) (mmm): | Min 350:1 (0.6) |
| Alignment / Sighting: | Built-in laser aiming light, through-lens sighting, or color TV camera |
| Interface / Output (mA): | 0/4 to 20 mA |
| Exposure Time t90 (ms): | 0.5 ms |
Accessories
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac TQCS Software
Temperature Quality Control System for Recording and Archiving (supplementary downloads only; contact sales for software)
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Technical Documentation
Compare

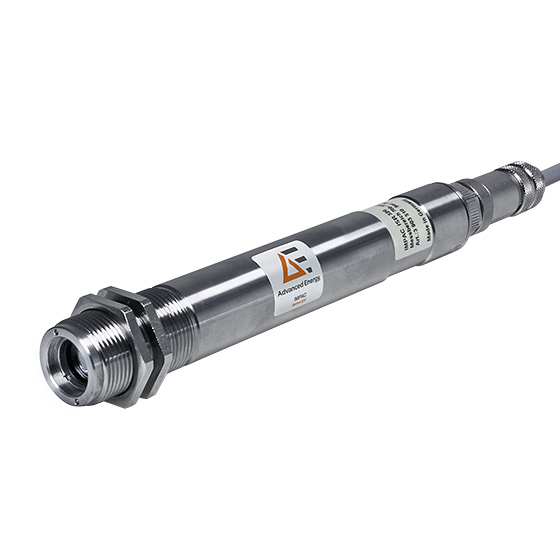

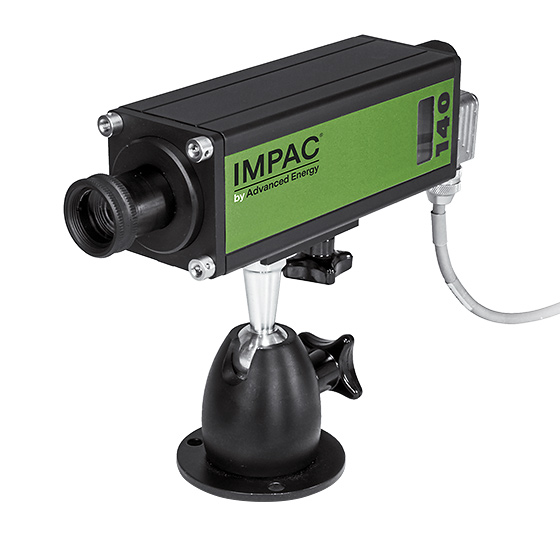

| Model | Impac IGA 6/23 Series | Impac 600 Series | Impac IGA 320/23 Series | Impac IGA 140/23 Series |
|---|---|---|---|---|
| Spectral Range (µm) | 2 to 2.6 | 0.7 and 14 (5 ranges in between) | 2 to 2.6 | 2.0 to 2.6 |
| Measurement Uncertainty (°C) | From 0.3% oR + 2 °C | From 0.5% oR or 0.8 °C | From 2 °C | From 2 °C |
| Optics (mm) | Focusable optics | Fixed optics | Fixed optics | Focusable optics |
| FOV (minimum spot size) (mmm) | Min 350:1 (0.6) | Min. 70:1 | Min 200:1 (0.25) | Min 340:1 (0.5) |
| Alignment / Sighting | Built-in laser aiming light, through-lens sighting, or color TV camera | None | LED targeting light | Laser targeting or through lens sighting |
| Interface / Output (mA) | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA |
| Exposure Time t90 (ms) | 0.5 ms | Multiple specifications. Please refer to Datasheet. | 2 ms | <1.5 ms |
| Display | LED, 4 digit matrix, 5 mm high temperature signal or measuring distance | Color LCD, 262,000 colors (optional) | Illuminated LC display for temperature indication or parameter settings |
