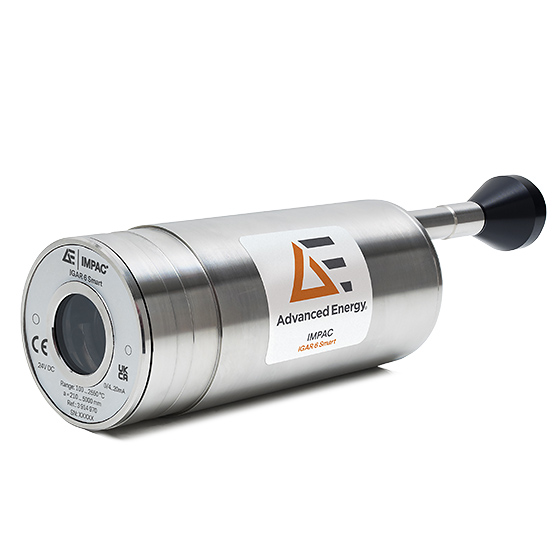

Impac IGAR 6 Series Pyrometers
Highly accurate digital ratio pyrometer with possible combination of 1-color and 2-color measurement, focusable optics and integrated display. Temperature ranges between 100 and 2550 °C.
The Impac® IGAR 6 Smart pyrometer can operate in one-color mode (100 to 2550 °C), two-color mode (250 to 2550 °C), or special smart mode.
In two-color mode (ratio method), two adjacent wavelengths are used for temperature determination. Temperature measurement is largely independent of the object’s emissivity and, in wide ranges, unaffected by dust and other contaminants. The measuring object can be smaller than the spot size. You also can measure through dirty-viewing windows up to a certain contamination point.
In Smart mode, the measurements at lower temperatures will be taken in 1-color mode and the measurements at higher temperatures will be taken in 2-color mode (ratio method).
Via InfraWin, the user can set the temperature at which the instrument automatically transitions from 1-color mode to 2-color mode. The minimum transition temperature is 250 °C and the minimum transition temperature range is 30 °C.
Features
- Complete digital core for sub-ranging and adopted analog output
- High quality optics with manual focus capability
- Robust, stainless steel sensor for harsh environments (IP65/NEMA4)
- Four-digit LED display
- Dirty-window warning
Benefits
- Measure fast processes thanks to a 2 ms response time
- Connect to a PC via an RS485 to USB connection
- Adjust parameters and analyze data using InfraWin software
- Automatically determine emissivity when using the two-color or smart mode
Specifications
| Operational temperature range (°C): | 100 to 2550 °C |
|---|---|
| Spectral Range (µm): | 1.5 and 2.5 (2 ranges in between) |
| Measurement Uncertainty (°C): | From 0.4% oR + 2 °C |
| Optics (mm): | Focusable optics |
| FOV (minimum spot size) (mmm): | Min 100:1 (2.1) |
| Alignment / Sighting: | Built-in laser aiming light, through-lens sighting, or color TV camera |
| Interface / Output (mA): | 0/4 to 20 mA |
| Exposure Time t90 (ms): | 2 ms |
Accessories
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac TQCS Software
Temperature Quality Control System for Recording and Archiving (supplementary downloads only; contact sales for software)
Technical Documentation
Compare
| Model | Impac IGAR 6 Series | Impac IGAR 320 Series | Impac ISR 320 Series | Impac ISR 6 Series |
|---|---|---|---|---|
| Spectral Range (µm) | 1.5 and 2.5 (2 ranges in between) | 1.5 and 2.5 (2 ranges in between) | 0.9 and 1.05 (2 ranges in between) | 0.9 and 1.05 (2 ranges in between) |
| Measurement Uncertainty (°C) | From 0.4% oR + 2 °C | 0.6% oR + 2 °C | From 0.5% oR + 1 °C | From 0.3% oR + 2 °C |
| Optics (mm) | Focusable optics | Fixed optics | Fixed optics | Focusable optics |
| FOV (minimum spot size) (mmm) | Min 100:1 (2.1) | Min 100:1 (3) | Min 100:1 (3) | Min 350:1 (0.6) |
| Alignment / Sighting | Built-in laser aiming light, through-lens sighting, or color TV camera | Built-in LED targeting light and LEDs for intensity alignment | Built-in LED targeting light and LEDs for intensity alignment | Built-in laser aiming light, through-lens sighting, or color TV camera |
| Exposure Time t90 (ms) | 2 ms | 10 ms | 10 ms | 2 ms |
| Display | LED, 4 digit matrix, 5 mm high for 2-color or 1-color temperature signal or measuring distance | LED, 4 digit matrix, 5 mm high for 2-color or 1-color temperature signal or measuring distance | ||
| Emissivity Slope | 0.600 to 2.000 in 0.1% steps (2-color mode) | 0.600 to 2.000 in 0.1% steps (2-color mode) | 0.800 to 1.250 in 0.1% steps (2-color mode) | 0.800 to 1.200 in 0.1% steps (2-color mode) |
