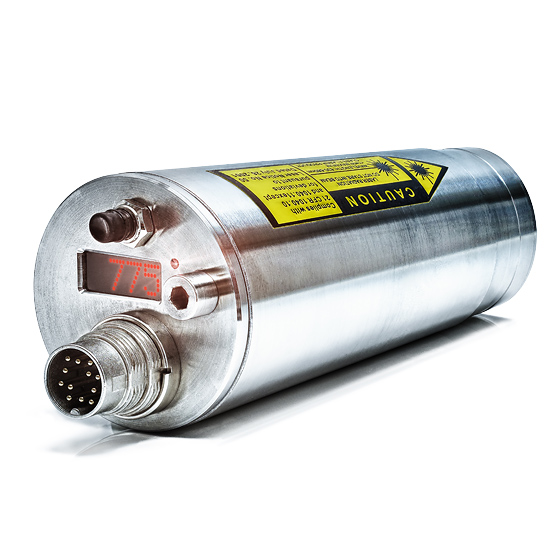

Impac IS 6 & IGA 6 Series Pyrometers

Active

Very fast and highly accurate digital pyrometers with long temperature ranges, focusable optics and integrated LED display. Temperature ranges between 250 and 3000 °C.

The digital Impac IS 6 and IGA 6 Advanced are fast pyrometers for non-contact temperature measurement on metals, ceramics, or graphite in temperature ranges between 250 and 3000°C. For optimal match to the application, the instruments are equipped with high-end optics with manual focus. The series feature integrated four-digit LED displays that indicate current measuring temperatures or set measuring distances. The pyrometers are available with laser-target light, viewfinder, or TV camera module. The instruments can be connected to a PC through an RS485 to USB connection, enabling you to make parameter adjustments using the InfraWin software. The software can be used for temperature indication, data logging, and further analyzing of complete temperature processes.

Features

  • Widest temperature ranges for most flexible process adaptation
  • Highest accuracy and repeatability in its class
  • Fully digital core for sub-ranging and adopted analog output
  • Reponse time of 120 µs for very fast and highly dynamic processes
  • High-end optics with manual focus capability
  • 4 digit LED display
  • Robust, stainless steel sensor for harsh environments (IP65/NEMA4)

Benefits

  • Use in harsh environments thanks to a robust, stainless steel sensor (IP65/NEMA4)
  • Easily measure fast and dynamic processes
  • Connect to your PC via an RS485 to USB connection
  • Select a laser target light, viewfinder, or TV camera module

Specifications

Operational temperature range (°C): 250 and 3000 °C (4 ranges in between)
Spectral Range (µm): 0.7 and 1.8 (2 ranges in between)
Measurement Uncertainty (°C): From 0.3% oR + 2 °C
Optics (mm): Focusable optics
FOV (minimum spot size) (mmm): Min 350:1 (0.6)
Alignment / Sighting: Built-in laser aiming light, through-lens sighting, or color TV camera
Interface / Output (mA): 0/4 to 20 mA
Exposure Time t90 (ms): 0.12 ms
All Specifications Collapse Specifications

Stock Check

Model Number
Output Type Optics Alignment Response Time Min. Temperature (°C) Max. Temperature (°C) Applications Samples Buy
3 914 010 Active, Contact Us 0/4 to 20 mA / RS485 Manually Focusable Laser Target 0.12 250 2500 Metal / Ceramics / Graphite Contact Us Buy
3 914 020 Active, Contact Us 0/4 to 20 mA / RS485 Manually Focusable Viewfinder 0.12 250 2500 Metal / Ceramics / Graphite Contact Us Buy
3 919 020 Not for New Design Contact Us 0/4 to 20 mA / PAL / RS485 Manually Focusable Color TV Camera 0.12 250 2500 Metal / Ceramics / Graphite Contact Us Contact Us
3 914 050 Active, Contact Us 0/4 to 20 mA / RS485 Manually Focusable Laser Target 0.12 250 1800 Metal / Ceramics / Graphite Contact Us Buy
3 914 060 Active, Contact Us 0/4 to 20 mA / RS485 Manually Focusable Viewfinder 0.12 250 1800 Metal / Ceramics / Graphite Contact Us Buy
3 919 010 Not for New Design Contact Us 0/4 to 20 mA / PAL / RS485 Manually Focusable Color TV Camera 0.12 250 1800 Metal / Ceramics / Graphite Contact Us Contact Us
3 914 090 Active, Contact Us 0/4 to 20 mA / RS232 Manually Focusable Laser Target 0.12 250 2500 Metal / Ceramics / Graphite Contact Us Buy
3 914 100 Active, Contact Us 0/4 to 20 mA / RS232 Manually Focusable Viewfinder 0.12 250 2500 Metal / Ceramics / Graphite Contact Us Buy
3 914 130 Active, Contact Us 0/4 to 20 mA / RS232 Manually Focusable Laser Target 0.12 250 1800 Metal / Ceramics / Graphite Contact Us Buy
3 914 510 Active, Contact Us 0/4 to 20 mA / RS485 Manually Focusable Laser Target 0.12 600 3000 Metal / Ceramics / Graphite Contact Us Buy
3 914 520 Active, Contact Us 0/4 to 20 mA / RS485 Manually Focusable Viewfinder 0.12 600 3000 Metal / Ceramics / Graphite Contact Us Buy
3 919 100 Not for New Design Contact Us 0/4 to 20 mA / PAL / RS485 Manually Focusable Color TV Camera 0.12 600 3000 Metal / Ceramics / Graphite Contact Us Contact Us
3 914 550 Active, Contact Us 0/4 to 20 mA / RS485 Manually Focusable Laser Target 0.12 600 1800 Metal / Ceramics / Graphite Contact Us Buy
3 914 560 Active, Contact Us 0/4 to 20 mA / RS485 Manually Focusable Viewfinder 0.12 600 1800 Metal / Ceramics / Graphite Contact Us Buy
3 919 090 Not for New Design Contact Us 0/4 to 20 mA / PAL / RS485 Manually Focusable Color TV Camera 0.12 600 1800 Metal / Ceramics / Graphite Contact Us Contact Us
3 914 590 Active, Contact Us 0/4 to 20 mA / RS232 Manually Focusable Laser Target 0.12 600 3000 Metal / Ceramics / Graphite Contact Us Buy
3 914 630 Active, Contact Us 0/4 to 20 mA / RS232 Manually Focusable Laser Target 0.12 600 1800 Metal / Ceramics / Graphite Contact Us Buy

Accessories

Impac Other Electrical

Other Electrical Accessories Compatible With Impac Pyrometers

Impac DA 4000

Digital LED Display With 2-Wire Supply Voltage

Impac Mechanical Accessories

Other Mechanical Accessories Compatible With Impac Pyrometers

Impac MultiTempLogger

Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software

Impac Power Supplies

Impac Pyrometer DC and AC Power Supply Units

Impac PI 6000 Controller

Extremely Fast, Digital, and Programmable PID Controller

Impac DA 6000-N

LED digital display with RS232 or RS485 interface for digital pyrometers

Impac DA 6000

Digital LED Display With 2-Wire Supply Voltage

Compare

Model Impac IS 6 & IGA 6 Series Impac IS 140 & IGA 140 Series Impac IS 320 & IGA 320 Series Impac 600 Series Impac 12 Series Pyrometers
Spectral Range (µm) 0.7 and 1.8 (2 ranges in between) 0.55 and 1.8 (4 ranges in between) 0.8 and 1.8 (2 ranges in between) 0.7 and 14 (5 ranges in between) 0.7 and 1.8 (2 ranges in between)
Measurement Uncertainty (°C) From 0.3% oR + 2 °C From 03% oR + 1 °C From 0.3% oR + 1 °C From 0.5% oR or 0.8 °C From 0.3% oR + 1 °C
Optics (mm) Focusable optics Focusable optics Fixed optics Fixed optics Fixed optics, Focusable optics
FOV (minimum spot size) (mmm) Min 350:1 (0.6) Min. 380:1 (0.35) Min 230:1 (1) Min. 70:1 Min 900:1 (0.1)
Alignment / Sighting Built-in laser aiming light, through-lens sighting, or color TV camera Laser targeting or through lens sighting Built-in LED targeting light None Laser targeting or through lens sighting
Interface / Output (mA) 0/4 to 20 mA 0/4 to 20 mA 0/4 to 20 mA 0/4 to 20 mA 0/4 to 20 mA
Exposure Time t90 (ms) 0.12 ms 1 ms 2 ms Multiple specifications. Please refer to Datasheet. 1 ms
Display LED, 4 digit matrix, 5 mm high temperature signal or measuring distance Illuminated LC display for temperature indication or parameter settings Color LCD, 262,000 colors (optional) Built-in 5 digit LED display, additional function LEDs
