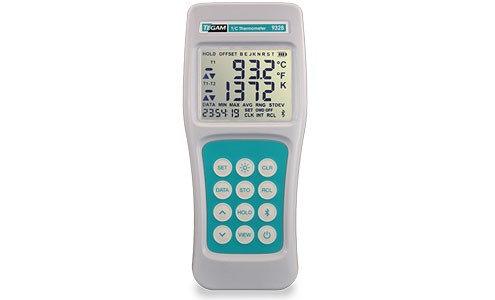

932B Datalogging Thermometer
Dual Input °C &°F (K, J , T, E, B, N, R & S)
The Model 932B is a dual-channel, digital datalogging thermometer compatible with type K, J, T, E, B, N, R & S thermocouple probes to enable a wide range of temperature measurements, (-418 °F to 3308 °F) and boasts a 1000-hour battery life using three AA batteries. The 932B provides dependable and uninterrupted portable measurement capability without expensive batteries, AC adapters or chargers.
The easiest data logging function available allows users to accurately record and store up to 1000 time-stamped measurements. An unlimited number of data points may be collected when used with a Bluetooth® version 4.0 compatible wireless phone, tablet or PC either locally or on the freely accessible cloud server running TEGAM Thermometer Link for Android or for Apple iOS. This seamless connectivity allows the user to collect, transmit and store accurate temperature data for analysis or compliance reporting without any additional or third party software.
The creative ergonomic design makes Advanced Energy's TEGAM datalogging thermometers easy to hold, easy to read and easy to clean. Designed for one-handed operation, these tools are comfortable to carry and use for extended periods of time. The heavy-duty case is specifically designed for durability and resistance to contaminants such as dust and chemicals. The smooth, sleek, seamless case means that cleaning is quick and certain.
Real-time statistical data increases user productivity, process efficiency and product quality. Displayed on-demand, MIN, MAX, AVG, RNG and STDEV (standard deviation) provide critical process information and diagnostics that allow the user to analyze manufacturing processes on the fly and make immediate adjustments for maximum efficiency and quality. The difference between channel 1 and channel 2 is also determined and displayed.
Like all TEGAM products, our datalogging thermometers are designed, assembled and tested in the United States. TEGAM backs this durable instrument with a standard 3-year warranty and a 2-year calibration guarantee to insure that your instrument is ready to use when you need it.
Features
- Datalogging Thermometer; 2-Channel
- Accuracy: ±(0.04% rdg + 0.3 °C)
- 1000 Hour Battery Life
- Input Type : K, J, T , E, B, N, R & S
- Probe Offset
- Bluetooth low-energy technology/version 4.0
- Remote Control via free iOS/Android app
- Displays Real-Time Statistical Data
- Highly Durable Case Design
- Three-Year Warranty
- Two-Year Calibration Guarantee
- Optional ISO 17025 Calibration Certificate Available
- CE, Complies with 47 CFR Part 15 of the FCC rules, Class B
- Assembled in the USA
Benefits
- Capture temperature measurements automatically, eliminating recording errors
- Bluetooth LE and iOS/Android app provide seamless connectivity with virtually any software
- High-performance and probe offset function assure you are accurately monitoring your processes
- Use one thermometer to support eight different thermocouple types
- Ultra-long battery life means your thermometer is always ready; educed operating costs over product lifecycle
- Easy one-hand operation and convenience
- 2-year calibration cycle means less downtime and lower costs
Specifications
| Accuracy: | ±(0.04% rdg +0.3 ⁰C) |
|---|---|
| Connector Type: | Mini-TC |
| Intrinsically Safe: | No |
| Measurement Range: | -250 to 1767 ⁰C |
| No. of Inputs: | 2 |
| Operating Temperature (°C): | -20 to 55 ⁰C |
| Probes Supported: | J,K,T,E,B,N,R,S |
| Resolution (°C): | 0.1⁰ C/F/K |
Accessories Stock Check
Factory or User Installed Belt Clip
This clip allows the user to attach a 700 or 900 series meter quickly and easily to a belt. Frees hands for other tasks. Can be installed at purchase of handheld meter or purchased and installed separately at a later date.
NOTE: This product is not compatible with the tilt stand or magnet holders.
Technical Specifications
Attaches easily to TEGAM’s 900 and 700 Series handheld meters
Frees operators’ hands for other tasks.
Tilt Stand, Magnet, Hanger is an optional accessory for the TEGAM 911A, 912A, 931A or 932A handheld thermometers. It is Factory Installed with purchase of 900 series thermometer. The hanger attaches to the back of the handheld thermometer so that professionals may free their hands while taking temperature measurements.
Technical Specifications
Purchased with a thermocouple thermometer and IS installed prior to shipping
Attaches easily to the back of TEGAM’s 911A, 912A, 931A or 932A
Allows professionals to free their hands while taking temperature measurements
Versatile
Foam-filled hard carry case is an optional accessory for the TEGAM 911B, 912B, 931B or 932B handheld digital thermometers and the TEGAM 940A or 945A handheld temperature calibrators.
The case has a place for your handheld instrument, probes, and additional batteries.
Technical Specifications
Durable
Custom fit
Protects Equipment
Tilt Stand, Magnet, Hanger is an optional accessory for the TEGAM 911B, 912B, 931B or 932B handheld thermometers. The hanger attaches to the back of the handheld thermometer so that professionals may free free their hands while taking temperature measurements.
Technical Specifications
Product is individually packed and is NOT installed on a thermocouple thermometer
Attaches easily to the back of TEGAM’s 911B, 912B, 931B or 932B
Allows professionals to free their hands while taking temperature measurements
Versatile
ISO 17025 is an International Standard and grew out of ISO Guide 25. In 2002 ISO started assessing all calibration labs to 17025. It has been updated several times since then, cleaning ambiguities, strengthening traceability requirements and expanding its overall coverage of processes. The premise of ISO 17025 is that traceability and a fully developed uncertainty statement are required to establish confidence in the calibration. Traceability is required to SI Standards (international standards based on the new SI units of measure). ISO 17025 also requires a full total uncertainty statement for the laboratory to prove the accuracy of the calibration. Its procedures assess the training and competencies of the lab personnel and the calibration procedures. ISO 17025 also requires accreditation by an internationally recognized authority.
