アルテシン

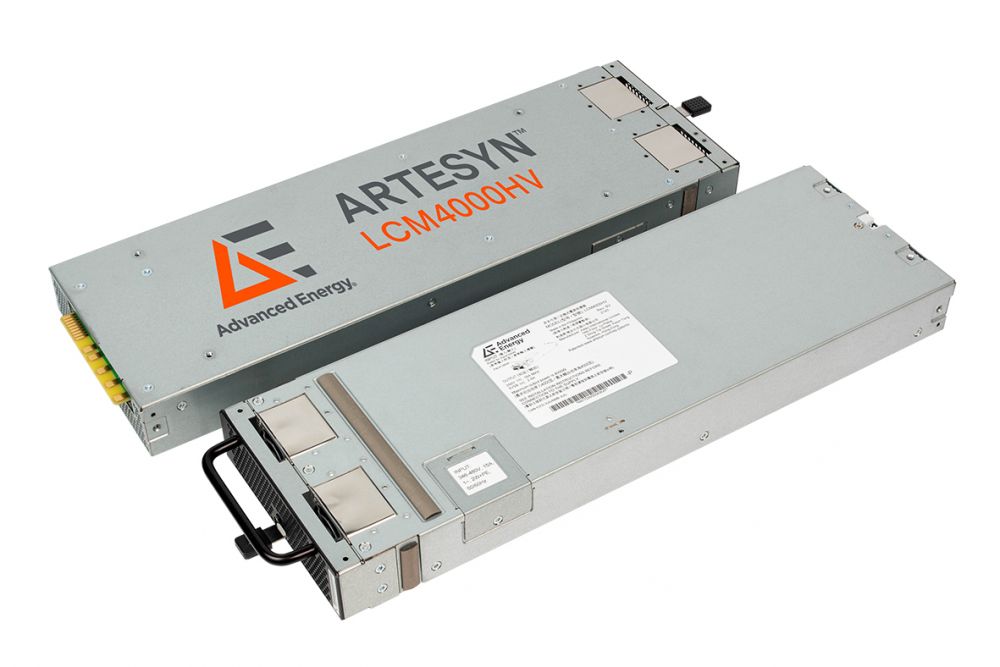

LCM4000HV Series
Active
4000 W Bulk Front End Centralized Power For LED Horticulture

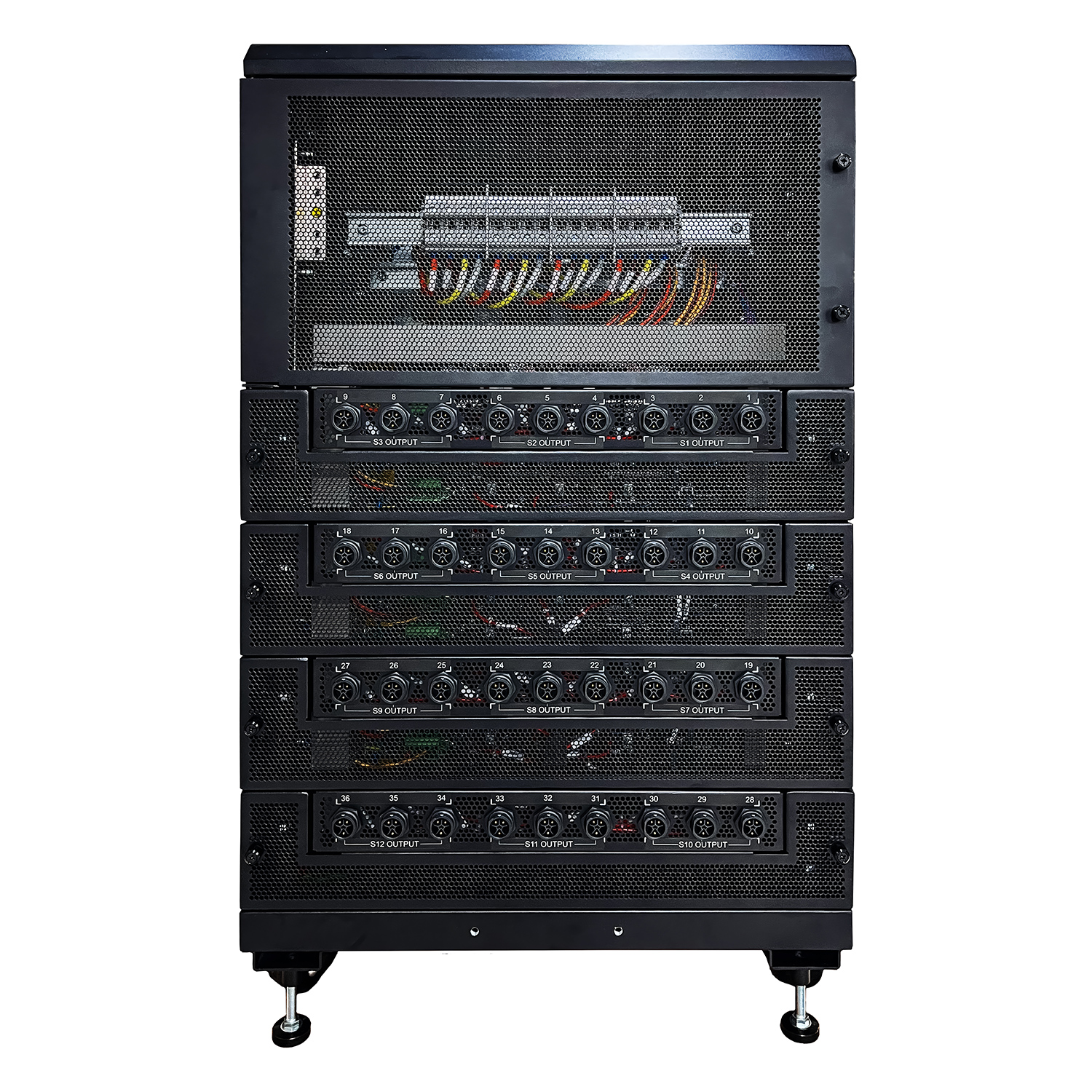

Advanced Energy’s Artesyn LCM4000HV series and associated LCM12K mounting shelf has been designed specifically to provide a centralized current source for medium to large scale LED lighting and horticulture applications. The unique input design allows all standard AC inputs 208 VAC to 600 VAC from single to 3 phase sources. The output of each 4 kW block provides flicker free current source from 0 to 16 A at an output voltage range between 100 VDC to 300 VDC. High nominal operating voltage provides the benefits of lower cost standard wiring and higher efficiency with minimal voltage drop over long distance. The 19” 1U rack mount shelf is designed for hot plug replacement of the 4 kW modules, providing high reliability and simple maintenance.
特徴
- 38 Watts per cubic inch
- 4000 W output power
- 480 mm x 140 mm x 40.3 mm
- High efficiency: up to 94%
- Meets DLC 2.1 requirements
- Single or 3 Phase
- Input Range 187-264 VAC; 311-528 VAC
- Input Frequency 47 to 63 Hz, Nominal 50/60 Hz
- Inrush Current <60A Peak at 264/528 VAC
- Power Factor 0.98 @ 100% load, at 208VAC
- Harmonics Meets IEC 61000-3-12 Requirements
- Input Current 25A max at 180 VAC
- No Load Power 35W max at 180 VAC
- Efficiency up to 95.2%
- Leakage Current < 5mA @ 264/528 VAC, 60 Hz
- Output Rise Time 80 mSec max
- Hold-up 10 mSec min
- Nominal Output Voltage 250 VDC
- Maximum Output Current 16.0 Amps
- Maximum Output Power 4000 W
- Output Adjust Range 100 VDC to 300 VDC
- Output Voltage Adjustment Accuracy +/-0.5% on Nominal (Digital); +/-1% (Analog)
- Output Static Regulation 0.5% Line, 0.75% load (of nominal)
- Line Transient/Load Transient +/-3%, +/-5% of nominal
- Ripple % Noise (P-P) 0.5% of Nominal
- Max Output Capacitance 600 uF
- Analog Control 0-10VDC; 0-24VDC
- Primary to PE 4000 VDC
- Primary to Secondary 4000 VDC
- Secondary to PE 3200 VDC
- Primary to User-Accessible 6000 VDC
- Secondary to User-Accessible 5000 VDC
- Modules per Shelf 3 max
メリット
- Digital and analog communication
- DSP controlled
- Dust control for fan cooling
- Five year warranty
- Industrial safety
- Low cost
- Scales easily (Module/Shelf/Rack)
- Supports Artesyn iTS and IHLC
- Variable speed "Smart Fans"
- Wide input voltage range
- Input Fusing Both Lines Fused
- Digital Communication MODBus
- Voltage Range Setting Parallel or Serial (Customer Configurable)
仕様
| 出力電力 (W): | 4000 |
|---|---|
| 長さ（インチ）: | 18.86 |
| 幅（インチ）: | 5.51 |
| 高さ（インチ）: | 1.59 |
| マウントタイプ: | Embedded PSU |
| 最小出力電流 (A): | 0 |
| 最大出力電流 (A): | 16 |
| 出力電圧範囲 (V): | 100V to 300V |
