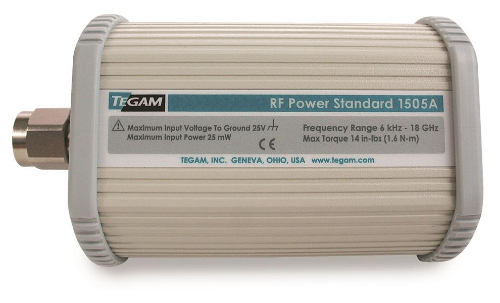

1505A Low Power RF Standard - Thermistor

Active

Microwave Terminating Power Standard, 9 kHz to 18 GHz Transport Case Included

Buy データシート

Advanced Energy's 1505A Temperature Stabilized Coaxial RF Power Reference (Terminating) Thermistor Standard enables the precise measurement of microwave power in the 6 kHz to 18 GHz frequency range. The 1505A standards are highly accurate and stable with time and temperature. They are designed to accurately measure RF power and calibrate RF transfer standards. The calibration of these standards is traceable to the International System of Units (SI) through the National Institute of Standards and Technology (NIST) or other recognized National Metrology Institutes.These RF Power Standards work with TEGAM’s 1830A RF Power Meter, as well as our legacy DC Self-Balancing Bridges, 1806 and 1806B. System configurations employing instruments of this accuracy typically achieve calibration factor transfer results normally found only in primary standards laboratories. Transport case is included.

特徴仕様在庫チェック Accessories 技術文書サービス Support

特徴

Calibrate RF transfer standards and measure RF power from 6 kHz to 18 GHz
0.01 to 10 mW (-20 to +10 dBm) usable range
PMX & SYSIIB Compatible
Rack mount option available
3 year warranty
Assembled in USA

メリット

Designed to match the freqeuncy range of AE-TEGAM 2500 series transfer standards for compatible calibration
Can be sent directly to NMI for highest level calibrations
Industry leading warranty

仕様

Calibration Factor Accuracy (typical):	+/-(0.9 to 1.2)% from 6 kHz to 18 GHz
Connector Type:	N- male
Frequency Range:	6 kHz to 18 GHz
Power Range:	0.01 to 10 mW (-20 to +10 dBm)
Reflection Magnitude (typical):	0.03 to 0.25 from 6 kHz to 18 GHz
Required Power Meter:	Thermistor
RF Impedance (nominal):	50 Ohms
Sensor Type:	Thermistor
Through Loss (typical):	NA

すべての仕様仕様の崩壊

在庫チェック

モデル番号購入	Calibration Factor Accuracy (typical)	Connector Type	Frequency Range	Power Range	Required Power Meter	購入
1505A Active, お問い合わせ Microwave Terminating Power Standard, 9 kHz – 18 GHz 購入	+/-(0.9 to 1.2)% from 6 kHz to 18 GHz	N- male	6 kHz to 18 GHz	0.01 to 10 mW (-20 to +10 dBm)	Thermistor	購入

Accessories Stock Check

CA-21-15
Active, お問い合わせ

Cable, Voltage Bias and Heater, 1830A to 15XX/25XX, 15"

Heater cable (4-pin mini to 4-pin mini)
For use with the following combinations:
• 1806A connected to F1130A/B and F1135A/B
• 1830A connected to F1130A/B and F1135A/B Read More Read Less

購入

CA-21-48
Active, お問い合わせ

Cable, Voltage Bias and Heater, 1830A to 15XX/25XX, 48"

Heater cable (4-pin mini to 4-pin mini)
For use with the following combinations:
• 1806A connected to F1130A/B and F1135A/B
• 1830A connected to F1130A/B and F1135A/B Read More Read Less

購入

CA-28-48
Active, お問い合わせ

Cable, 1806A to 15XXA/25XXA

購入

CA-29-48
Active, お問い合わせ

Cable, 1806 to 15XXA/25XXA

購入

2510-910-01
Active, お問い合わせ

Torque Wrench, 8 mm, 8 in-lbs, for 3.5 mm, 2.92 mm and 2.4 mm

購入

1500-910
Active, お問い合わせ

Transport Case for 15XXA RF Power Standard

Transport case for 1505A and 1510A power standard
Note: 1510-910 is a standard item with a new purchase
of the 1505A or 1510A Read More Read Less

購入

2500-910
Active, お問い合わせ

Transport Case for 1830A, F113X & 25XXA

Transport case for 1830A, F113X, 2505A, 2510A, M1130
and M1135 Read More Read Less

購入

Power Sensor Calibration Accessories

PM Series Accessories

View Page

技術文書

タイトル	タイプ
CE Declaration of Conformity for 1505A (75 KB)	証明書
1505A 2505A Datasheet (334 KB)	データシート
1830A Cable Connection Guide (273 KB)	Guide
1505A 2505A Manual (1 MB)	マニュアル
