ADQ700 Series

Active

700 W Digital Interface 1/4 Brick

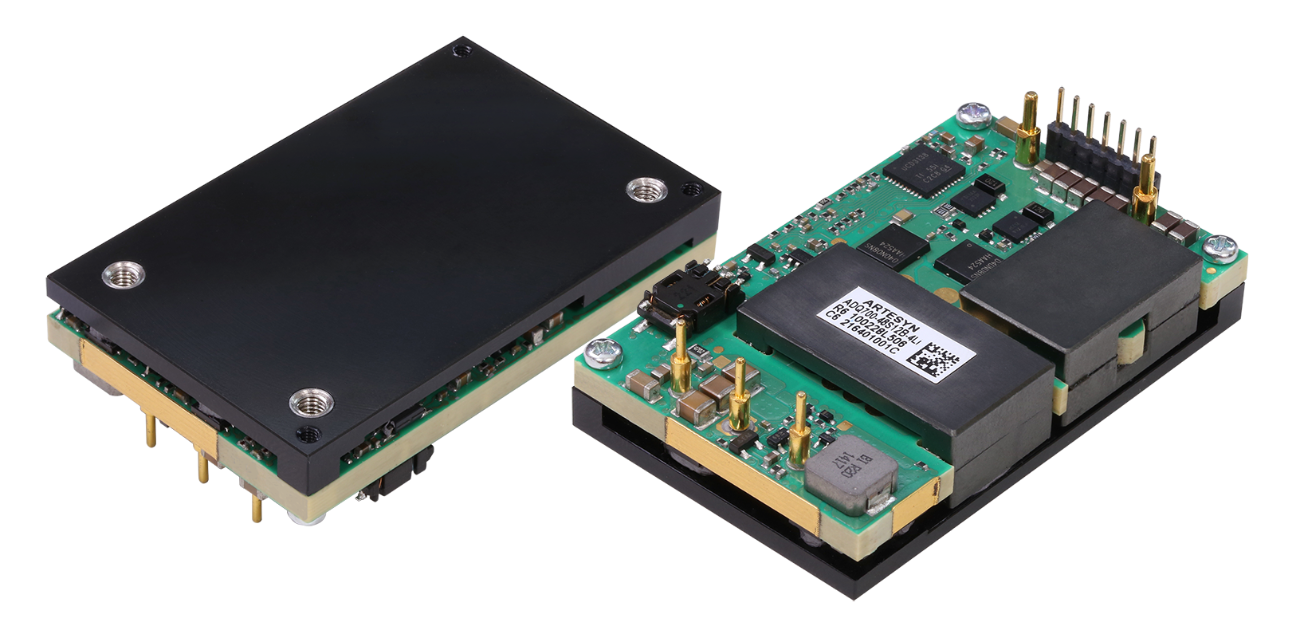

Designed for 48 V supplies in computing, server, and communications equipment, the 700 W ADQ700 quarter-brick isolated DC-DC converters output regulated 12 VDC and up to 58 A. The converters have an input voltage range of 40 to 60 VDC and offer a typical full-load efficiency of 96%. The ADQ700 series switches at 200 kHz to minimize EMI filter size and operates through an ambient temperature range of -40 to +85˚C. Standard features include pre-bias start-up; paralleling capability with automatic droop current sharing; and protection from input undervoltage, overvoltage lockout, output overvoltage, output overcurrent, and overtemperature. Choose from analog and digital interface options and open-frame and baseplate models featuring installed heights of 0.43 inch (11 mm) and 0.52 inch (13.3 mm), respectively.

특징 사양 재고 확인 Accessories 기술 문서 Videos Support

특징

40 60 Vdc Datacomm input range
700 W continuous power
IPC9592 component stress compliant
RoHS 6 compliant
UL94 V0 materials
Ultra high efficiency > 96%
Input Voltage: 40V to 60V
Total Max Power: 700 W
Total Max Current: 58 A
Output Voltage: 12 V
Size (L x W x H): 2.3
Warranty: 2 years
Operating Temperature: -40 to +85 C

혜택

Baseplate optimized for contact cooling or heatsink mounting
DOSA footprint compliant
Fixed switching frequency
Heatsink accesory pack can be ordered (heatsink, thermal pad and screws)
High capacitive load capability
High reliability
Low ripple and noise
Open frame version optimized for air cooling
PMBus® communication
Prebias startup capability
Two year warranty (consult factory for extended terms)
Outputs: SINGLE

사양

출력 전력(W):	696
길이(인치):	2.3
너비(인치):	1.45
높이(인치):	0.5
마운팅 유형:	BMP; Through Hole
최소 출력 전류(A):	0
최대 출력 전류(A):	58
출력 전압 범위(V):	12V to 12V
최소 출력 전력(W):	0
최대 출력 전력(W):	696
Minimum Input Voltage (V):	40
최대 입력 전압(V):	60
보증(년):	2

모든 사양 사양 축소

재고 확인

모델 번호 샘플 구매	최소. 전압(V)	최대. 전압(V)	전류(A)	공칭 전압(V)	출력 개수	샘플	구매
ADQ700-48S12-4L 활성, 재고 있음 700W 12V 1/4 brick Request 구매	12	12	58	12	1	Request	구매
ADQ700-48S12-4LI 활성, 재고 있음 700W 12V 1/4 PMBus brick Request 구매	12	12	58	12	1	Request	구매
ADQ700-48S12B-4L 활성, 재고 있음 700W 12V baseplate 1/4br Request 구매	12	12	58	12	1	Request	구매
ADQ700-48S12B-4LI 활성, 재고 있음 700W 12V 1/4 PMBus brick Request 구매	12	12	58	12	1	Request	구매

액세서리

Universal PMBus GUI Software Package

The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
