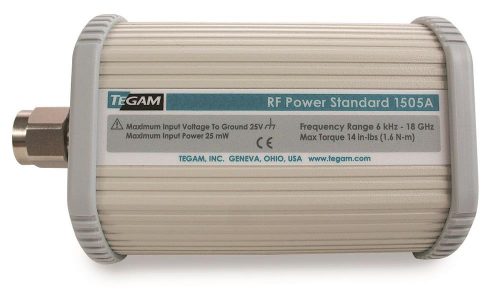

1500/2500 Series RF Power Standards - Thermistor

Active

RF Power Standards - Thermistor

재고 확인 영업팀에 문의 데이터 시트
Advanced Energy's Temperature Stabilized Coaxial RF Power Transfer (Feedthrough) and Reference (Terminating) Thermistor Standards enable the precise measurement of microwave power in the 6 kHz to 50 GHz frequency range. The 1500/2500 Series standards are highly accurate and stable with time and temperature. They are designed to calibrate RF power sensors and RF transfer standards.

특징

  • Calibrate RF Power Sensors from 6 kHz to 50GHz
  • 0.01 to 10 mW (-20 to +10 dBm) usable range
  • Reference (1500) and Transfer (2500) configurations
  • PMX Compatible
  • Rack mount option available
  • 3 year warranty
  • Assembled in USA

혜택

  • Frequency range covers the calibration range of common sensors
  • Designed specifically for power sensor calibration
  • Calibrate sensors in multiple power ranges, utilizing optional attenuators
  • Industry leading warranty

사양

Frequency Range: 6 kHz to 50 GHz
Power Range: 0.01 to 10 mW (-20 to +10 dBm)
Required Power Meter: Thermistor
RF Impedance (nominal): 50 Ohms
Sensor Type: Thermistor

재고 확인

모델 번호
 Calibration Factor Accuracy (typical) Connector Type Frequency Range Power Range Required Power Meter 구매
1505A Active, 문의하기
Microwave Terminating Power Standard, 9 kHz – 18 GHz
+/-(0.9 to 1.2)% from 6 kHz to 18 GHz N- male 6 kHz to 18 GHz 0.01 to 10 mW (-20 to +10 dBm) Thermistor 구매
1510A Active, 문의하기
Microwave Terminating Power Standard, 10 MHz – 50 GHz Transport Case Included
+/-(1.2 to 4.2)% from 10 MHz to 50 GHz 2.4mm male 10 MHz to 50 GHz 0.01 to 10 mW (-20 to +10 dBm) Thermistor 구매
2505A Active, 문의하기
Microwave Calibration Standard, Feedthrough, 6 kHz to 18 GHz
+/-(0.7 to 1.0)% from 6 kHz to 18 GHz N- female 6 kHz to 18 GHz 0.01 to 10 mW (-20 to +10 dBm) Thermistor 구매
2510A Active, 문의하기
Microwave Calibration Standard, Feedthrough, 10 MHz-50 GHz
+/-(1.0 to 4.0)% from 10 MHz to 50 GHz 2.4mm female 10 MHz to 50 GHz 0.01 to 10 mW (-20 to +10 dBm) Thermistor 구매

Recommended Products

RF Thermistor Power Meter that supports 100 Ω and 200 Ω thermistors

추천

1830A Thermistor-Based RF Power Meter

RF Thermistor Power Meter

데이터 시트

9 kHz to 18 GHz RF Terminating Power Standard

추천

1505A Low Power RF Standard - Thermistor

Microwave Terminating Power Standard, 9 kHz – 18 GHz

데이터 시트

RF Terminating Power Standard 10 MHz to 50 GHz

추천

1510A Low Power RF Standard - Thermistor

Microwave Terminating Power Standard, 10 MHz – 50 GHz Transport Case Included

데이터 시트

Microwave Calibration Standard 2505A

추천

2505A Low Power RF Standard - Thermistor

Microwave Calibration Standard, Feedthrough, 6 kHz to 18 GHz

데이터 시트

제품 더 보기

Accessories Stock Check

1130-910-01
Active, 문의하기
Torque Wrench, 8mm, 5 in-lbs, SMA to 1585-1000
구매
1130-911-01
Active, 문의하기
Torque Wrench, 3/4", 12 in-lbs, N (Standard Nut)
구매
1130-912-01
Active, 문의하기
Torque Wrench, 13/16", 14 in-lbs, (Special 13/16" Nut on M1130A, M1125, M1110)
구매
1130-913-02
Active, 문의하기
Attenuator, 20 dB, Type N Coax (M) to (F), with Data
구매
138-645-1
Active, 문의하기
Attenuator, 30dB, Type N Coax (M) to (F), with Data
구매
1500-910
Active, 문의하기
Transport Case for 15XXA RF Power Standard

Transport case for 1505A and 1510A power standard
Note: 1510-910 is a standard item with a new purchase
of the 1505A or 1510A

구매
1510-911-01
Active, 문의하기
Adapter, 2.4 mm coax (M) to 2.92 mm (F) with Data
구매
1510-912-01
Active, 문의하기
Adapter, 2.4 mm coax (M) to 3.5 mm (F) with Data
구매
1585-1000
Active, 문의하기
Test Cable with SMA Straight Plug Connectors, DC to 18 GHz, 3'
구매
1585-1009
Active, 문의하기
Low Loss RF Cable, 40 GHz, 2.92 mm (M) Connectors, 3'

Low loss RF cable, 40.0 GHz, 2.92mm male connectors
• Insertion loss max 3.6 dB

구매
1830-910
Active, 문의하기
Single Unit Rack Mount Kit, 1830A, F113XB & 25XXA Series
구매
1830-911
Active, 문의하기
Dual Unit Rack Mount Kit, 1830A, F113XB & 25XXA Series
구매
2500-910
Active, 문의하기
Transport Case for 1830A, F113X & 25XXA

Transport case for 1830A, F113X, 2505A, 2510A, M1130
and M1135

구매
2510-910-01
Active, 문의하기
Torque Wrench, 8 mm, 8 in-lbs, for 3.5 mm, 2.92 mm and 2.4 mm
구매
2510-911-01
Active, 문의하기
Adapter, 2.4 mm coax (M) to 2.92 mm (F) with Data
구매
2510-912-01
Active, 문의하기
Torque Wrench, 8 mm, 8 in-lbs, for 3.5 mm, 2.92 mm and 2.4 mm
구매
2510-913-01
Active, 문의하기
Attenuator, 30 dB, 2.4 mm Coax (M) to (F) with Data
구매
CA-14-2M
Active, 문의하기
Cable, USB A/A 2M
구매
CA-21-15
Active, 문의하기
Cable, Voltage Bias and Heater, 1830A to 15XX/25XX, 15"

Heater cable (4-pin mini to 4-pin mini)
For use with the following combinations:
• 1806A connected to F1130A/B and F1135A/B
• 1830A connected to F1130A/B and F1135A/B

구매
CA-21-48
Active, 문의하기
Cable, Voltage Bias and Heater, 1830A to 15XX/25XX, 48"

Heater cable (4-pin mini to 4-pin mini)
For use with the following combinations:
• 1806A connected to F1130A/B and F1135A/B
• 1830A connected to F1130A/B and F1135A/B

구매
CA-23-12
Active, 문의하기
Low Loss RF Cable, 50GHz, 2.4 mm (M) Connectors, 12", for PMX
구매
CA-23-36
Active, 문의하기
Low Loss RF Cable, 50GHz, 2.4 mm (M) Connectors, 36", for PMX
구매

Power Sensor Calibration Accessories

PM Series Accessories

View Page

기술 문서

제목 유형
CE Declaration of Conformity for 1505A (75 KB) 인증서
CE Declaration of Conformity for 2505A (77 KB) 인증서
1505A 2505A Datasheet (334 KB) 데이터 시트
1510/2510A Datasheet (457 KB) 데이터 시트
1830A Cable Connection Guide (273 KB) Guide
1505A 2505A Manual (1 MB) 매뉴얼
1510A / 2510A Manual (1 MB) 매뉴얼
