PMX18-012 Power Sensor Calibration Systems

Active

RF Power Sensor Calibration System 6 kHz to 18 GHz

库存检查联系销售数据表

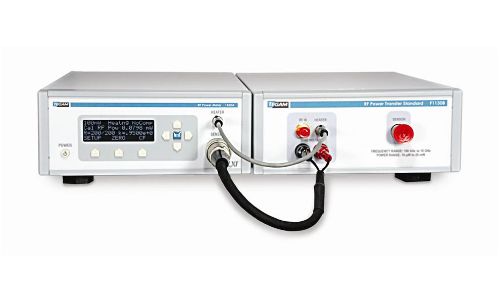

Advanced Energy has condensed their experience with microwave calibration into convenient, accurate, and automated power sensor calibration systems. The PMX18-012 system operates in the range of 6 kHz to 18 GHz. This systems consist of a 2505A RF transfer standard, an 1830A RF power meter, and the interconnecting cables. Also available is our PS-Cal power sensor calibration software to automate the power sensor calibration system. We also make turnkey packages that include the VNA, signal generator, workstation, software, and accessories required to enable immediate productivity. Our power sensor calibration software is ideal for automation and covers a variety of sensors from different manufacturers.Onsite installation and training are available with each complete system for a fast and trouble free start up.

特点

System consists of: 1830A, 2505A, (1 Each) CA-21-15 & CA-14-2M
6 KHz to 18 GHz frequency range
0.01 to 10 mW typical usable power range (-20 to +10dBm)
PS-Cal Automation Software available
Calibrate sensors from multiple manufacturers
Onsite training available
Turnkey systems available
Lowest total uncertainty
Accurate and Repeatable RF power standards
Assembled in the USA

益处

Quickly enable productivity with automated software and training
Achieve high level power sensor calibrations
One system calibrates multiple sensors from various manufacturers

规格

Calibration Factor Accuracy (typical):	+/-(0.7 to 1.0)% from 6 kHz to 18 GHz
Frequency Range:	6 kHz to 18 GHz
Power Meters Included:	1830A
Power Range:	0.01 to 10 mW (-20 to +10 dBm)
Reflection Magnitude (typical):	0.03 to 0.07 from 6 kHz to 18 GHz
RF Impedance (nominal):	50 Ohms
Sensor Connector Type:	N- female
Sensor Type:	Thermistor
Signal Generator Included:	No
Software Included:	No
Standards Included:	2505A
VNA Included:	No

所有规格折叠规格

库存检查

型号购买	Calibration Factor Accuracy (typical)	Frequency Range	Power Meters Included	Sensor Connector Type	Software Included	Standards Included	购买
PMX18-012 Active, 联系我们 RF Power Sensor Calibration System 6 kHz to 18 GHz, Consists of: (1) 1830A (1) 2505A (1 each) CA-21-15, CA-14-2M 购买	+/-(0.7 to 1.0)% from 6 kHz to 18 GHz	6 kHz to 18 GHz	1830A	N- female	No	2505A	购买

技术文档

标题	类型
PMX Datasheet (2 MB)	数据表
1830A Cable Connection Guide (273 KB)	Guide
PS-Cal Installation Instructions (36 KB)	安装说明
1505A 2505A Manual (1 MB)	手册

服务

Repair

Our worldwide service centers provide fast cycle times, use only AE-qualified parts, and follow the original product's specifications and test procedures for the highest quality repair or calibration.
