artesyn™

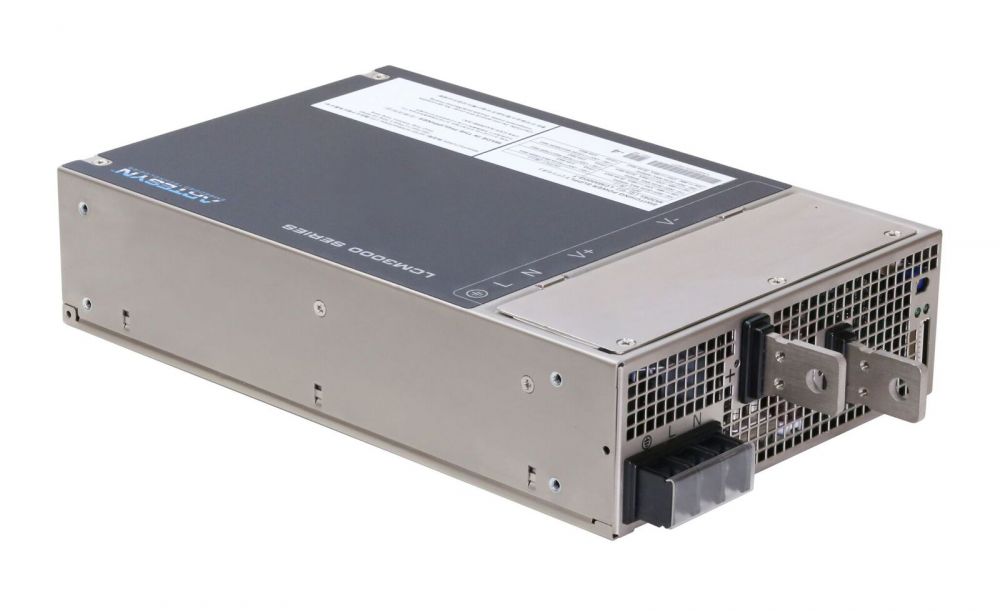

LCM3000 Series
Active
3000 W AC-DC Power Supply
The LCM3000 series AC-DC single-output enclosed power supplies, which can supply up to 3000 W output power with medical and industrial safety approvals. Cost-effective forced-air bulk front end power supply, offers configurable nominal outputs of 12, 24, 36, or 48 V with output adjustability of plus or minus 25% and maximum current of 250 A. A standard 5 V/2 A housekeeping output enables OEM standby functions even when the equipment is nominally off.
Standard features including power factor correction, variable speed ‘smart fans’, digital control, a five-year warranty and a typical efficiency of greater than 90%.
Artesyn’s LCM3000 series is ideal for industrial applications such as test and measurement equipment, industrial robotics, laser-carving machines, and factory automation; non-patient contact and non-patient critical medical, dental and laboratory applications; as well as for telecom and datacom equipment. With simple firmware options, the LCM3000 can be used for battery charging and driving LED's.
Standard features including power factor correction, variable speed ‘smart fans’, digital control, a five-year warranty and a typical efficiency of greater than 90%.
Artesyn’s LCM3000 series is ideal for industrial applications such as test and measurement equipment, industrial robotics, laser-carving machines, and factory automation; non-patient contact and non-patient critical medical, dental and laboratory applications; as well as for telecom and datacom equipment. With simple firmware options, the LCM3000 can be used for battery charging and driving LED's.
Features
- +/ 25% adjustment range
- 40C to +70C with derating
- 5Year Warranty
- VProgram from 20% to 125%
- Input Range 90-264, Derate to 1500W <180V
- Input Frequency 50/60 nominal
- Fusing 30A both lines
- Inrush Current <=60A peak @ 230VAC
- Power Factor 0.95 typical
- Input Current 20A RMS max @ 100VAC
- Efficiency >90%
- Leakage Current <500uA @ 240VAC
- Set point +/-0.5%
- Total Regulation Main +/-1%; 5VSB +/-5%
- Output Noise (PARD) 1% max p-p
- Forced Load Sharing to within 10% of all Outputs
- PRI-Chassis 2KVAC / 2828VDC
- PRI-SEC 3KVAC / 4242VDC 2xMOPP
- SEC-Chassis 500VDC
- # units in Parallel Up to 8
Benefits
- DSP Controlled
- High Efficiency
- Low Cost
- Smart Fans
- VAR configurable to any voltage from a single unit Part Number
- Output Rating See Datasheet
Specifications
| Output Power (W): | 3000 |
|---|---|
| Length (Inches): | 10.9 |
| Width (Inches): | 7 |
| Height (Inches): | 2.5 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 250 |
| Output Voltage Range (V): | 2.4V to 60V |
