抵抗測定とボンドメーター

TEGAMシリーズのボンドメーター、ミリオーム計、高速マイクロオームメーターは、業界最高レベルの性能を提供します。TEGAMボンドメーターは、電気的・機械的接合部の完全性が決定的に重要な航空機の生産ラインや定期的な機体保守点検に日常的に使用されています。TEGAM 1750高速マイクロオームメーターは、電子部品メーカー、自動車メーカー、様々な産業アプリケーションの生産ラインやQAラボで頻繁に使用されています。加えて、TEGAMは、一般的に絶縁抵抗計と呼ばれる、高抵抗レベルの測定に使用される様々な品種のメガオームメーターを提供しています。

抵抗測定

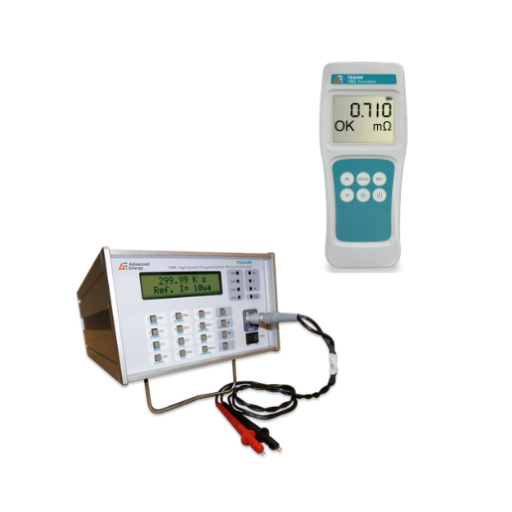

Bond Meters / Milli-Ohmmeters

High accuracy resistance measurements
Smallest, lightest handheld bond meters in the industry
Supported by a wide range of test probe options

Micro-Ohmmeters

High speed performance for production line applications
Very high accuracy for QA and lab requirements
Multiple test lead options available

Mega-Ohmmeters

For measuring high resistance levels (insulation testing)
Portable and handheld models available
Rugged construction for field applications

LCR Meters

Models 252 and 263 are equivalent to the ESI 252 and 253, respectively
Perfect for component inspectors or manufacturing operators manually testing of inductors, capacitors, and resistors
Supported with a variety of test lead options and accessories

Test Probes

4-wire Kelvin sensing probes
Test probes for use with the 700 Series, R1L Series bond meters, and 1750 Series micro-ohmmeters
Also includes probe tips and accessories

No Filters Applied

8 Results

Series Name	Product Type	Description	Basic Accuracy	Connector Type	Measurement Range

1750 Series 1750 Series 1750 Series 1750 Series 1750 Series	Resistance Measurement	High-Speed Micro-ohmmeter	±0.02%	Banana, Lemo	10 µΩ to 20 MΩ
R1L Series Probes R1L Series Probes R1L Series Probes R1L Series Probes R1L Series Probes	Resistance Measurement	4-Wire Kelvin Probes		Dual Banana, Spade Lug
1750 Series Probes 1750 Series Probes 1750 Series Probes 1750 Series Probes 1750 Series Probes	Resistance Measurement	4-wire Kelvin probes and clips for precision resistance measurement		BNC, Lemo
R1M Series R1M Series R1M Series R1M Series R1M Series	Resistance Measurement	Portable Megohmmeter	±5%	Banana	1 MΩ to 200 GΩ
Handheld Bond Meters Handheld Bond Meters Handheld Bond Meters Handheld Bond Meters Handheld Bond Meters	Resistance Measurement	Superior Accuracy, 100-Hour Battery Life, and a 3-Year Warranty	±0.2%	M12	1 µΩ to 100 Ω
252 and Accessories 252 and Accessories 252 and Accessories 252 and Accessories 252 and Accessories	Resistance Measurement	Digital LCR Meters	±0.25%
Portable Bond Meters Portable Bond Meters Portable Bond Meters Portable Bond Meters Portable Bond Meters	Resistance Measurement	Bench Top Milli-Ohmmeter and Bond Meter	±0.25%	Banana	1 µΩ to 20 Ω
700 Series Probes 700 Series Probes 700 Series Probes 700 Series Probes 700 Series Probes	Resistance Measurement	4-Wire Probes		Dual Banana, Lemo, M12
