Configurable/Modular Industrial & Medical PSUs

Q: What is a configurable power supply?

A configurable power supply offers superior flexibility compared to traditional power supplies with fixed output parameters. It lets users adjust output voltage, current levels, and the number of outputs within a certain range to suit specific application needs. These power supplies feature a modular design with slots that users can customize by selecting different modules with various voltage and power levels. This configuration allows for precise regulation of DC-DC current, tailoring the power supply to the application's requirements.

Q: How do I select the correct Configurable/Modular PSU for my needs?

Start by listing all the voltage and power requirements for your application. Then, select a size that fits your system or equipment. Prioritize units that offer efficiency, low leakage, and low EMI, along with modularity options that suit your needs. Look for features that simplify installation and control and ensure the unit complies with safety standards relevant to your application. Consider the cooling system required for your use case, and opt for a product with a longer warranty and strong technical support.

Q: When are configurable power supplies the best option?

Configurable power supplies are ideal when standard or custom power supplies don't fully meet your needs or add complexity. They are particularly useful when your application requires multiple outputs with unique voltage, current, or power levels. Configurable power supplies can reduce costs by letting you configure these outputs from a single standard package with suitable modules and eliminating the need for multiple custom or standard units. They are also well-suited for development and testing processes, offering the flexibility to adapt to changing and evolving requirements.

Q: Who should consider using Configurable/Modular PSUs from Advanced Energy?

These units are best for anyone who requires multiple output power ranges for industrial or medical applications—especially when standard or custom power supplies fall short. Delivering up to 24kW of power output, they are designed to meet various specifications, including high power density, high efficiency, low electromagnetic interference, easy control options, advanced cooling mechanisms, and strict safety standards. Configurable PSUs are utilized across various applications, such as medical imaging, life sciences, electrosurgery, medical lasers, patient care, manufacturing, robotics, transport, printing, energy, horticulture lighting, industrial lighting, test and measurement, plasma processes, materials handling, and military and aerospace sectors.

Q: Can Configurable/Modular PSUs be customized for specific applications?

Yes, Advanced Energy provides a broad selection of configurable medical-grade power supplies that can meet most application needs. If these options don't fully align with your requirements, AE can customize power supplies to suit your needs. This customization can include electrical, mechanical, firmware adjustments, and more, all tailored to your application and compliant with regulatory standards. AE's experienced engineers will collaborate with your team to design power supplies that precisely fit your products.

Q: What are the key benefits of using Advanced Energy's Configurable/Modular PSUs?

Advanced Energy’s configurable modules feature high power density, making them compact while maintaining efficiency. Benefits include low EMI (Electromagnetic Interference), optimal cooling, a ruggedized body, and high isolation, which enhance performance, durability, and safety. These units are easy to control with analog and digital options, and Advanced Energy provides comprehensive technical support, including datasheets, manuals, and expert advice.

Q: What technical support is available for Configurable PSUs?

Configurable power supply units (PSUs) have slots that accommodate various modules, allowing for different output combinations. Proper configuration requires significant technical knowledge. Choosing products from less reputable companies might result in insufficient support. In contrast, as a market leader, Advanced Energy provides comprehensive technical support, including datasheets, designer manuals, instruction manuals, brochures, assembly drawings, and more. AE also offers 24-hour support, five days a week, with expert advice from our qualified engineers through live chat and phone.

Q: What warranty options are available for Configurable PSUs?

Warranty options for configurable power supply units can vary by brand and product, typically starting with 2-year coverage and extending up to 5 years. The warranty covers electrical failures, breakdowns, quality issues, and mechanical problems for Advanced Energy's power supplies. These services are accessible through AE’s global service center, where you can submit an RMA form on our website.

Q: How do I handle repairs or issues with a Configurable PSU?

You can contact Advanced Energy's global service center for repairs or issues with a configurable PSU, such as electrical failures, quality concerns, or mechanical problems. To initiate the process, submit an RMA form on our website.

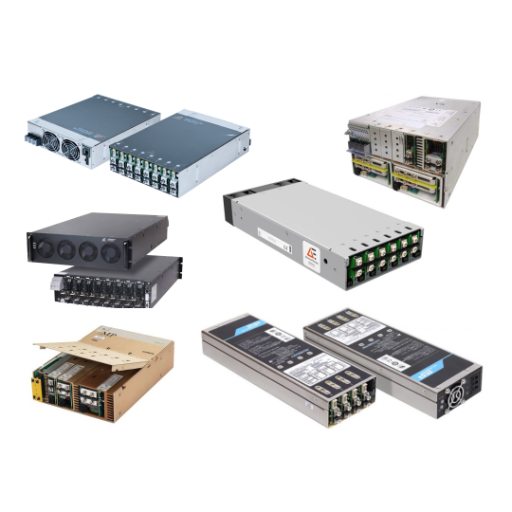

Advanced Energy produces a wide range of medium to high power AC-DC power supplies, primarily composed of highly configurable modular power supplies and rack-mounted bulk power units. These include individual power modules with output rantings of 36W up to 12,000W, facilitating customers to configure bulk power systems with an output capability of up to 30 kW. Many of these products are available in medically approved versions and feature comprehensive built-in intelligence. They are recognized for their exceptional performance, reliability, and cost-effectiveness.

Configurable/Modular Industrial & Medical PSUs

CoolX

600W to 3000W
13 output voltage modules; up to 24 separate outputs from 2.5 to 200V
Single phase input

iHP Series

Up to 24 kW, 1600 A rating
7 output voltage modules; up to 8 separate outputs from 0.6 to 1000 V
Versatile single phase or 3-phase inputs

iMP

Up to 1500W, 300A rating
7 output voltage modules; up to 21 separate outputs from 1.8 to 500V
Single phase and DC input

iVS

Up to 4920W
6 output voltage modules; up to 24 separate outputs from 1.8 to 500V
Single phase and DC input or 3-phase inputs

NeoPower Configurable Series

1200 W - 4000 W Configurable AC-DC Power Supplies

Ultimod Series

600W to 1200W
24 output voltage modules; up to 12 separate outputs from 1.5 to 58V
Single phase input

uMP

Up to 1800W, 240A rating
5 output voltage modules; up to 12 separate outputs from 0.9 to 500V
Single phase and DC input

XF Series

Up to 1000W
24 output voltage modules; up to 12 separate outputs from 1.5 to 58V
Single phase input

Xgen Series

Up to 1340 W
24 output voltage modules; up to 12 separate outputs from 1.5 to 58 V
Single phase input

PowerPro Communication Dongles

Communication Dongles for Artesyn AC/DC Power Supplies

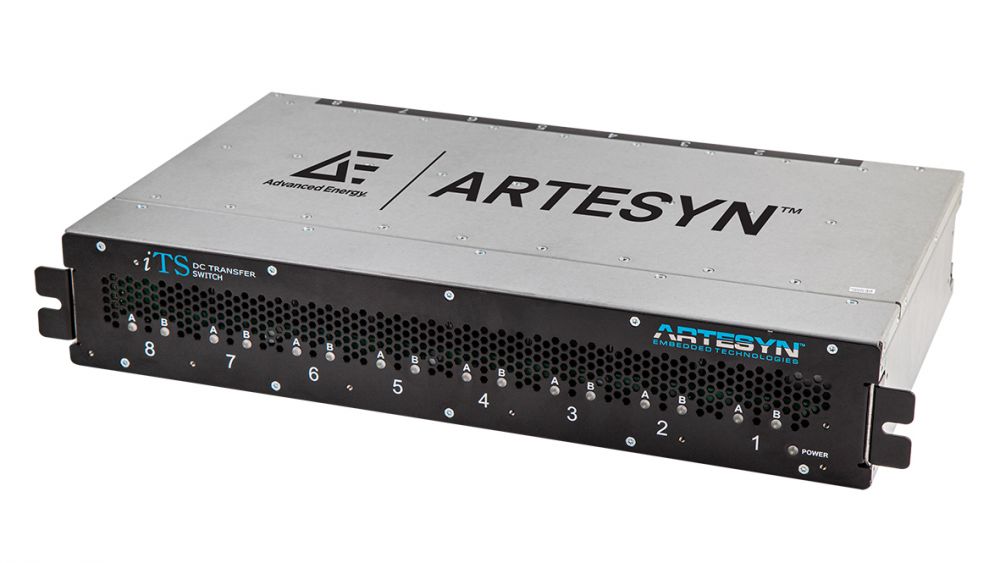

Intelligent Transfer Switch

Up to 24 kW power rating
Modular 8 channel A:B switch; Standard 19” rack
Single phase input

Frequently Asked Questions

What is a configurable power supply?

How do I select the correct Configurable/Modular PSU for my needs?

When are configurable power supplies the best option?

What types of Configurable/Modular PSUs does Advanced Energy offer?

Advanced Energy offers a wide range of configurable power supply units from two leading product lines: Artesyn and Excelsys. These units have multiple output options and specifications to meet various application needs.

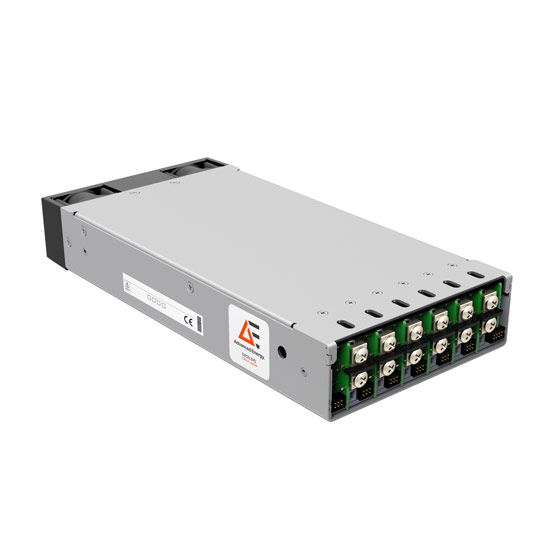

●   CoolX Family offers AC-DC solutions ranging from 600W to 3000W, with both natural convection and variable-speed fan-cooled systems. It can deliver up to 24 outputs with series and parallel options and features PMBus communication and analog control options.

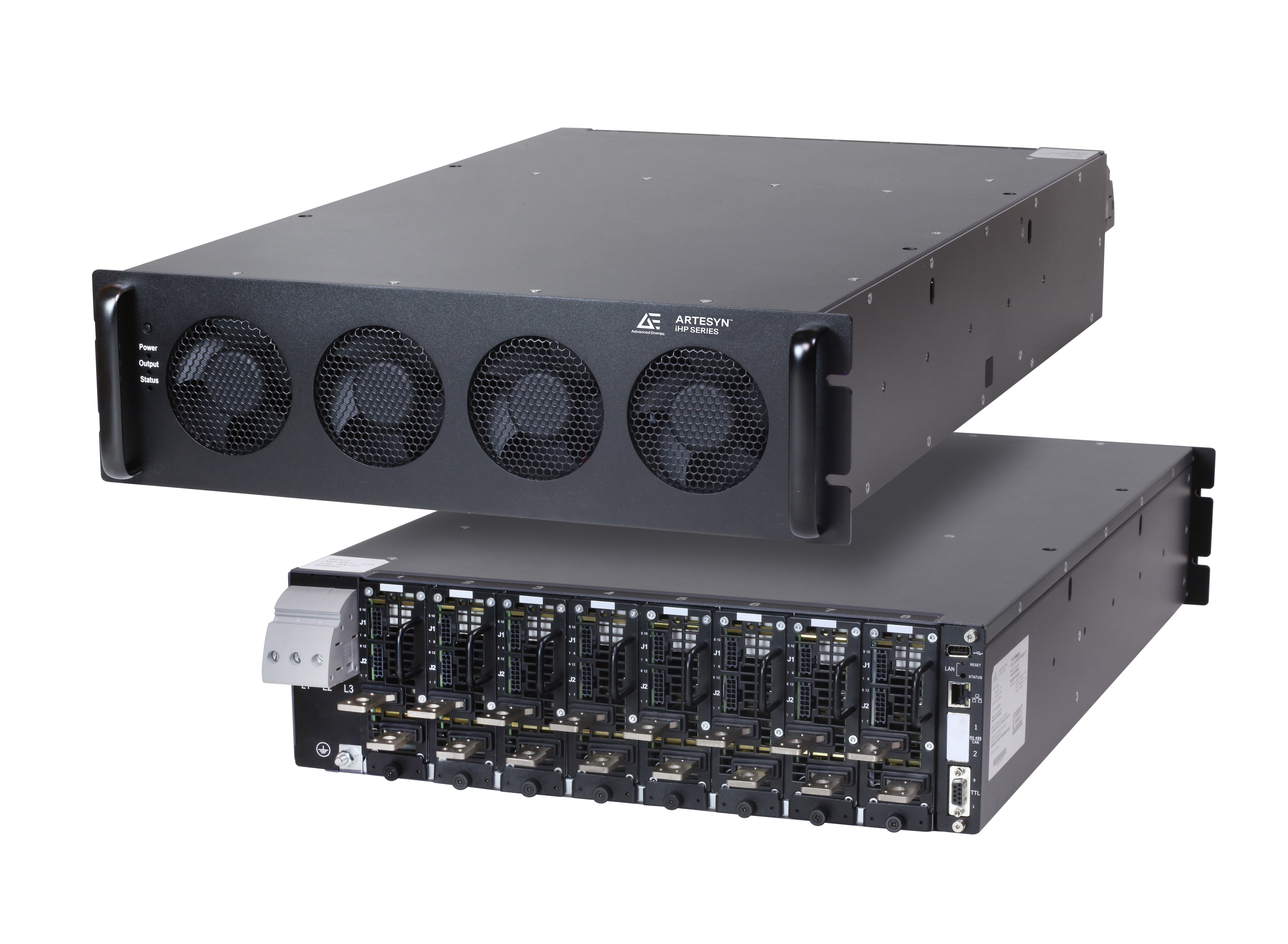

●   iHP Family is available with air-cooled and liquid-cooled units, providing up to 24kW and 20kW power outputs with up to 8 configurable outputs. It also includes a variety of plug-in modules.
●   The iMP Family provides up to 1500W output. It has a microprocessor-controlled PFC front end and seven slots that accept intelligent DC-DC converter modules, offering single, dual, or triple outputs.
●   The iVS Series delivers up to 4920W output and features an I2C interface for real-time monitoring and control. It supports seven module types, 25 standard output voltages from 2 to 60 VDC, and can provide up to 24 outputs.

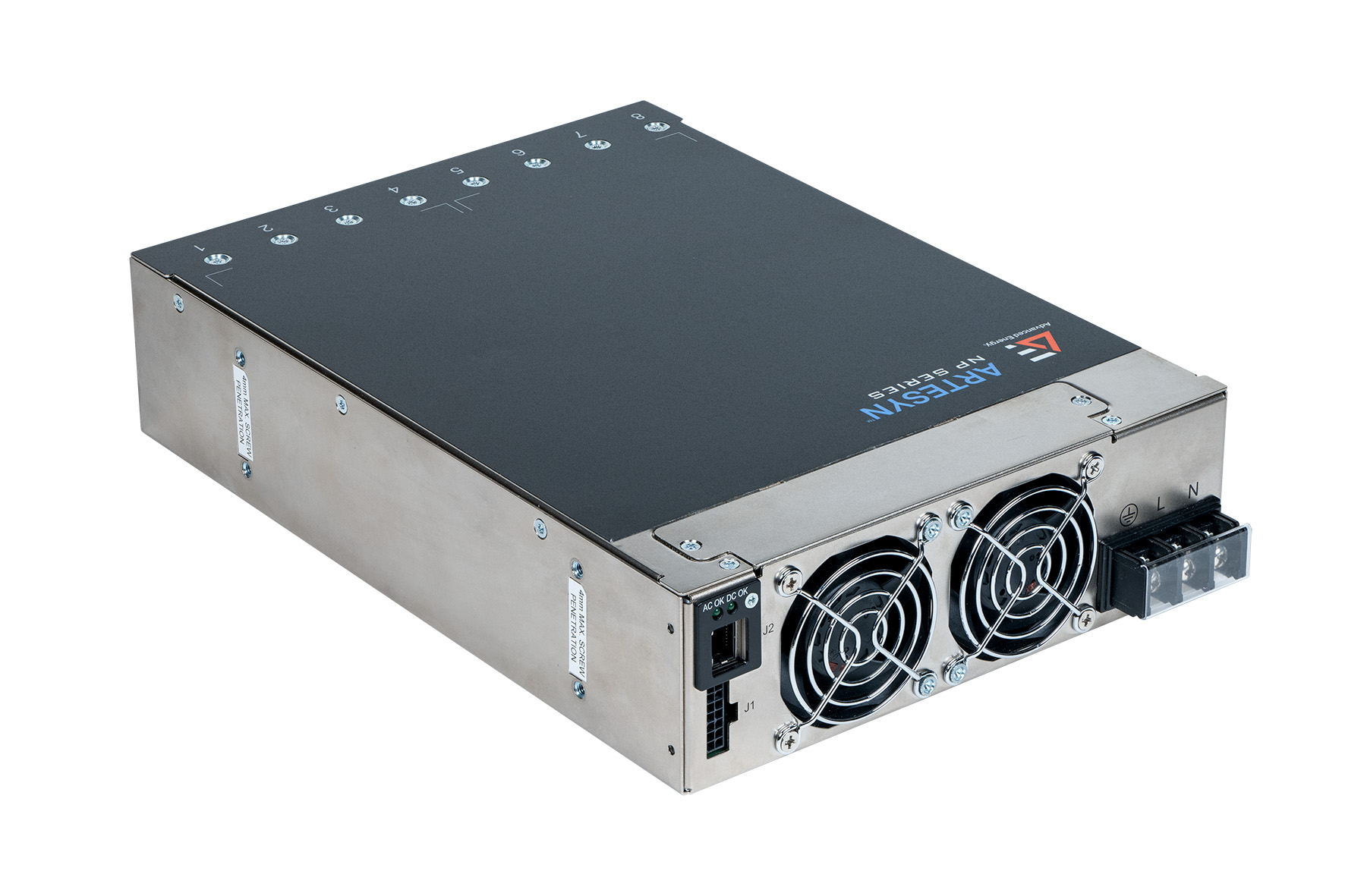

●   NeoPower NP08 is an AC-DC configurable power supply with a best-in-class power density of 18W/in³ and up to 4000W output power. It has 8 output slots and can be configured in series and parallel.
●   Ultimod Series includes UX4 and UX6 modules, accommodating up to four and six power modules with up to 8 and 12 isolated output voltages, respectively.

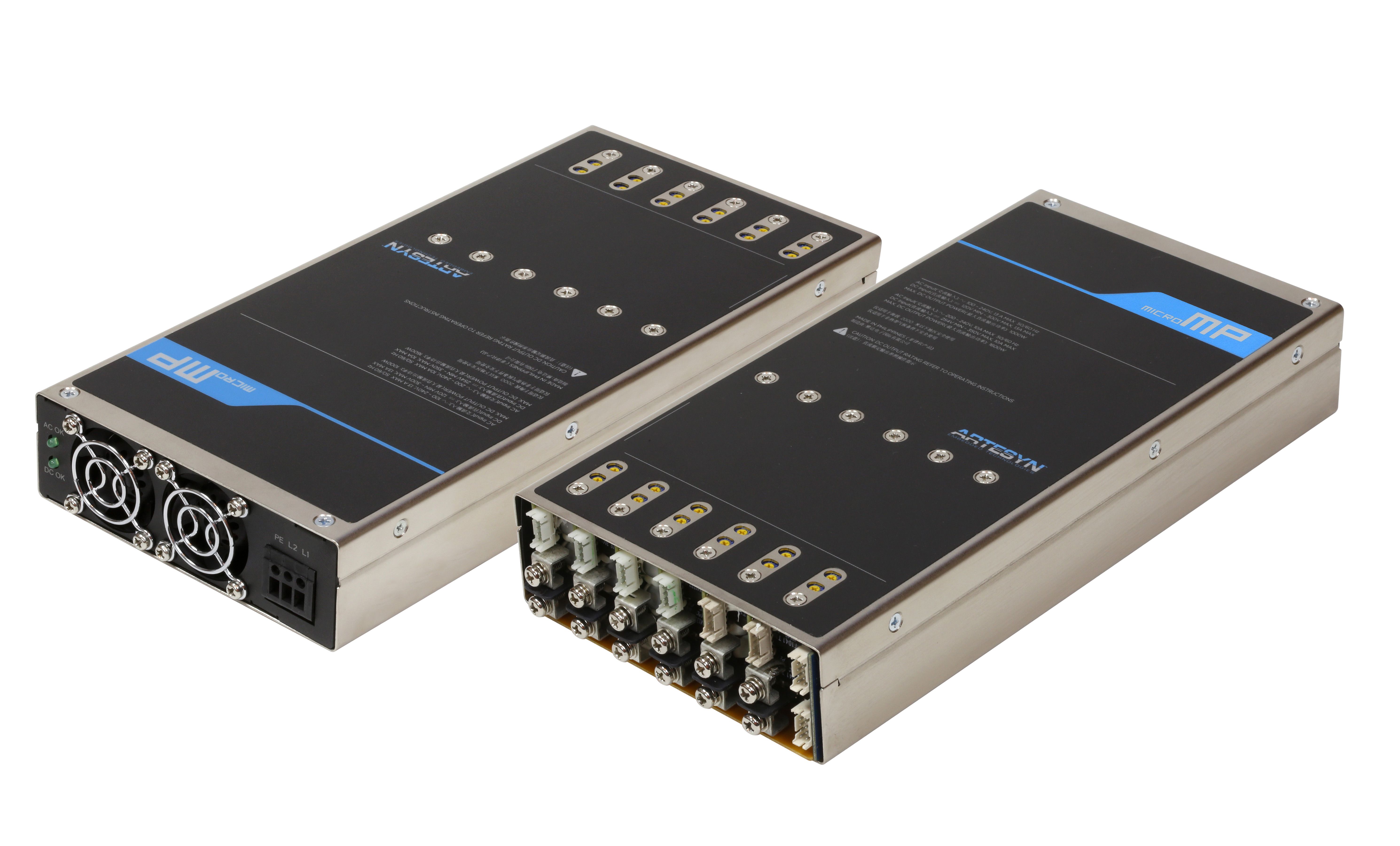

●   uMP Series targets lower power needs, offering power ranges from 400W to 1800W with high power density. The uMP Gen II is digitally configurable, with power ratings from 400W to 1600W and 4 or 6 slot options.

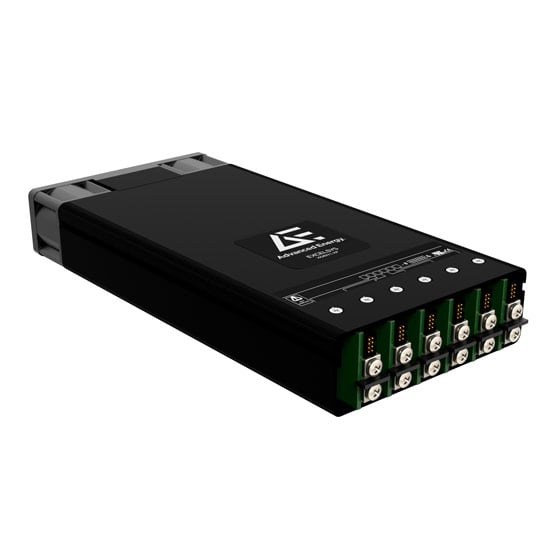

●   The XF Series provides up to 1000W in a compact design with a plug-and-play architecture for quick configuration. It offers up to 12 isolated outputs with a 348 VDC output voltage.
●   Xgen Series is a configurable AC-DC power supply with 17W/in³ power density and 90% efficiency. It offers four power packs with up to 1340W output.

Who should consider using Configurable/Modular PSUs from Advanced Energy?

Can Configurable/Modular PSUs be customized for specific applications?

What are the key benefits of using Advanced Energy's Configurable/Modular PSUs?

What technical support is available for Configurable PSUs?

What warranty options are available for Configurable PSUs?

How do I handle repairs or issues with a Configurable PSU?

Technical Documentation

Product Information Documents Updated

Safety & Compliance Certificates

Guides & Manuals

Engineering Resources Updated

Insights & Studies

Miscellaneous New

NP08 Series TRN New

NP08 Series TRN

PDF 12 MB January 3, 2025

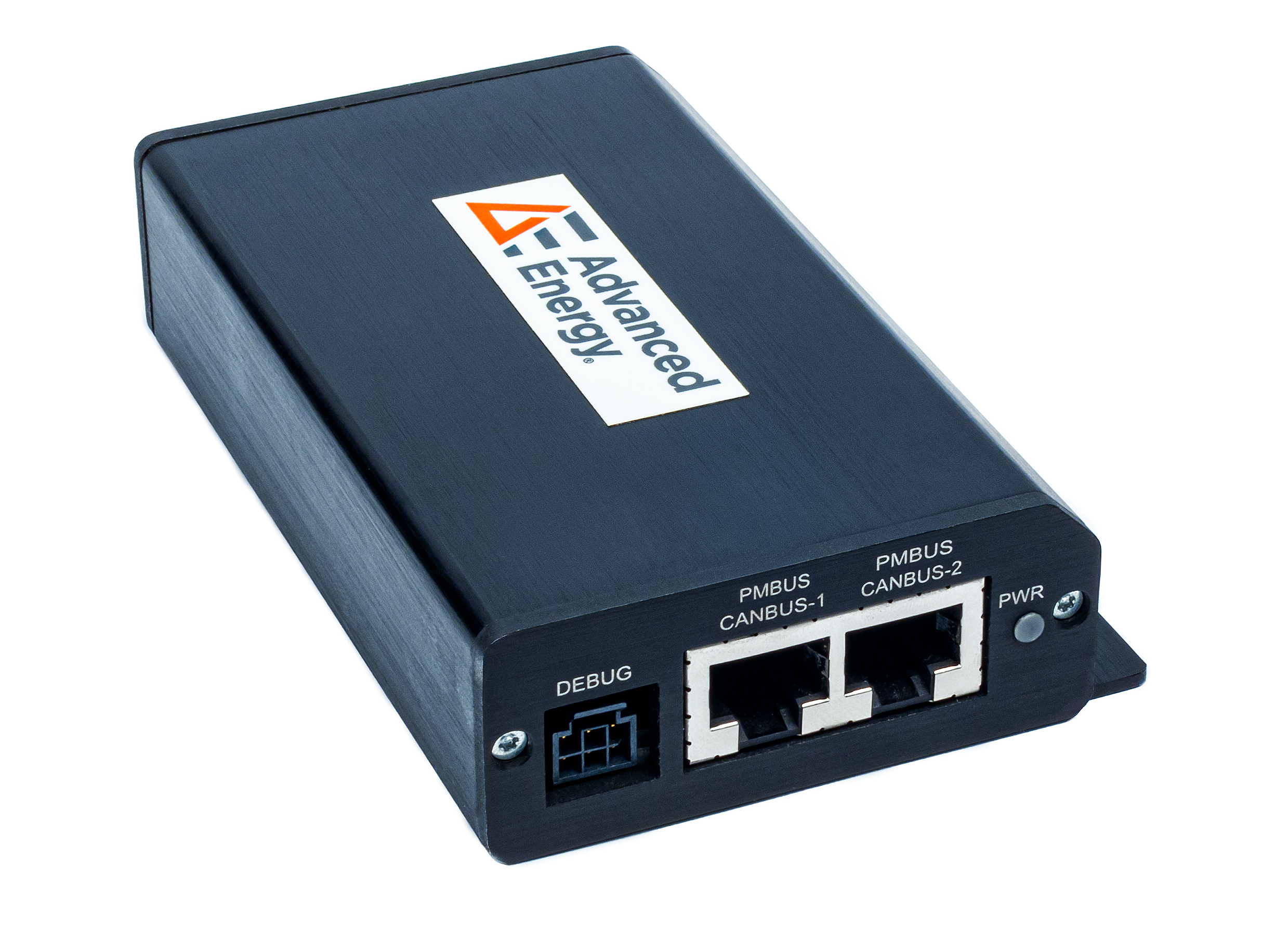

PowerPro CANBUS & PMBUS Communication Dongle

Add CANBUS and PMBUS capabilities to Artesyn branded NeoPower and Evergreen products

PDF 471 KB July 12, 2024

RS-485 MODBUS Cable

Programming cable for iHP, iTS, LCM12K, LCM4000HV, NeoPower, FCM10K & FCM30K Products.

PDF 1 MB June 26, 2024

CoolX Pmbus GUI

Software ZIP 275 KB June 15, 2023
